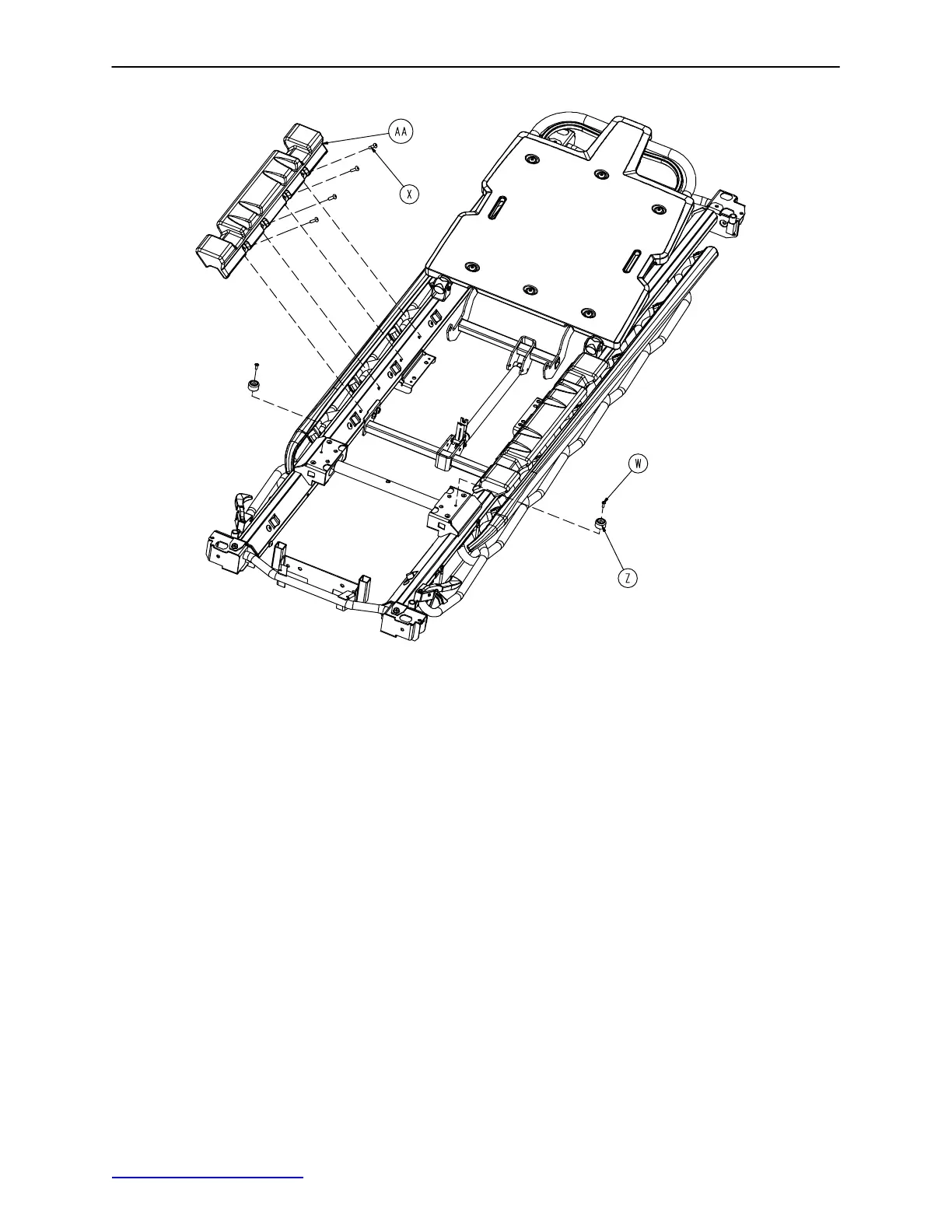

Stryker 1015 - Seat Section Assembly

26” Standard Fowler/Knee Gatch Assembly
84
Item Part No. Part Name Qty.
A 0023−288−000 Hex Washer Hd. Screw 8
C 0026−316−000 Clevis Pin 4
D 0026−364−000 Clevis Pin 2
E 0026−334−000 Clevis Pin 2
F 0027−020−000 Rue Ring Cotter 8
G 0785−013−034 Drop Seat Pivot Bracket, Rt. 1
H 0785−013−039 Drop Seat Pivot Bracket, Lt. 1
J(page 91) Seat Section Assembly 1
K 0785−014−119 Seat Support Bracket, Rt. 1
L(page 93) Gatch Assembly 1
M(page 101) Thigh Section Assembly 1
N(page 103) Calf Section Assembly 1
P 0785−015−609 Prop Bar 1
R 0785−015−012 Calf Support 2
S 0785−014−117 Seat Support Bracket, Left 1
T 0025−079−000 Pop Rivet 10
W 0025−133−000 Rivet 2
X 0025−147−000 Rivet 8
Z 0056−023−000 Recessed Bumper 2
AA 0785−010−049 Mattress Support Block 2
AB 0785−034−005 Velcro Pile 2
