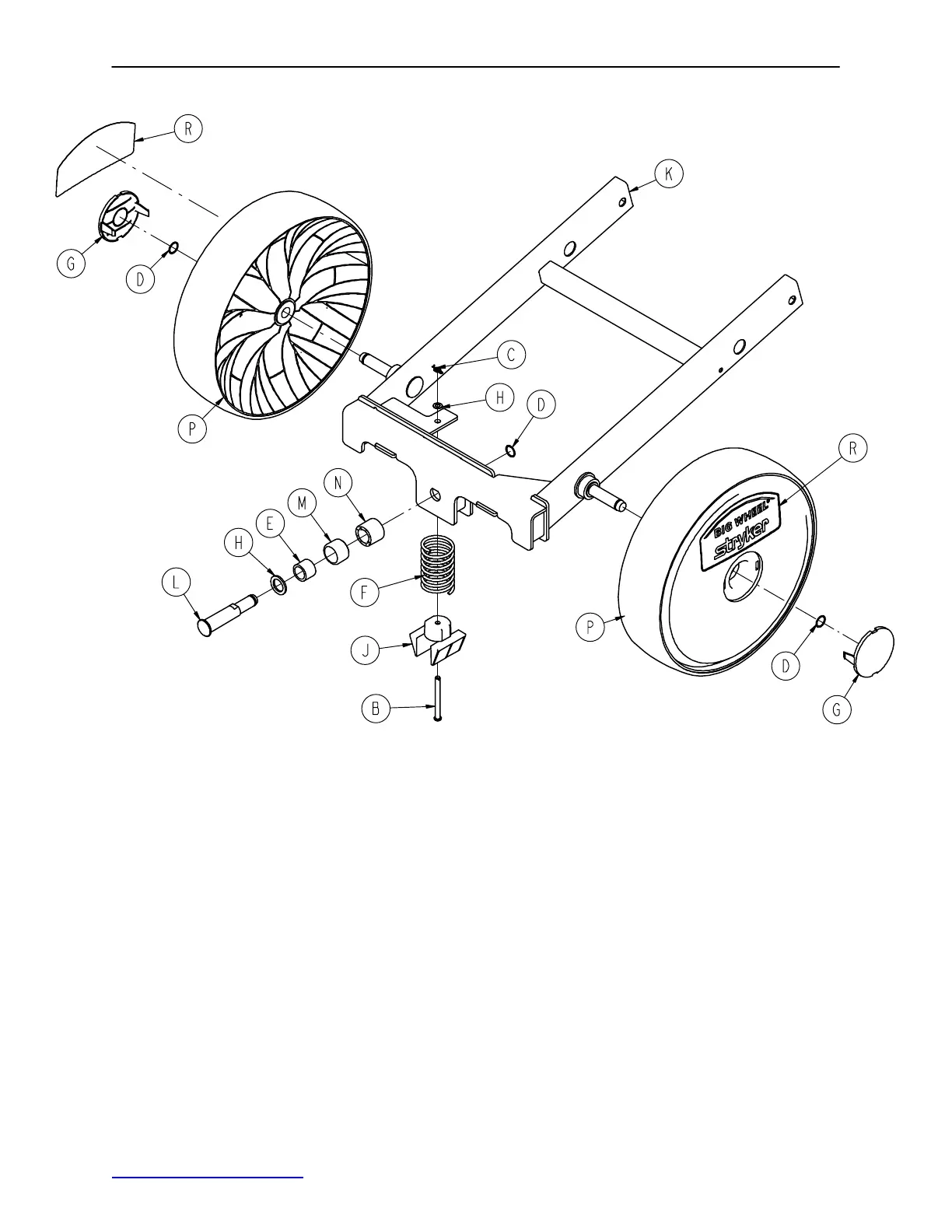

Big Wheel Carriage Assembly
43
Assembly part number 1040−015−201 (reference only)
Item Part No. Part Name Qty.
A 0014−004−000 Washer 1
B 0026−341−000 Clevis Pin 1
C 0027−020−000 Rue Ring Cotter 1
D 0028−330−000 Spiral Retaining Ring 3
E 0081−011−000 Needle Bearing 1
F 1040−015−106 Carriage Return Spring 1
G 1040−015−073 Big Wheel Cap 2
H 1040−015−038 Washer 1
J 1040−015−053 Carriage Spring Retainer 1
K 1040−015−110 Carriage Weldment 1
L 1040−020−122 Cam Follower Pivot Pin 1
M 1040−020−128 Lift Cam Roller 1
N 1040−020−129 Carriage Roller Guide 1
P 1040−015−080 Big Wheel 2
R 1040−015−078 Big Wheel Label 2
