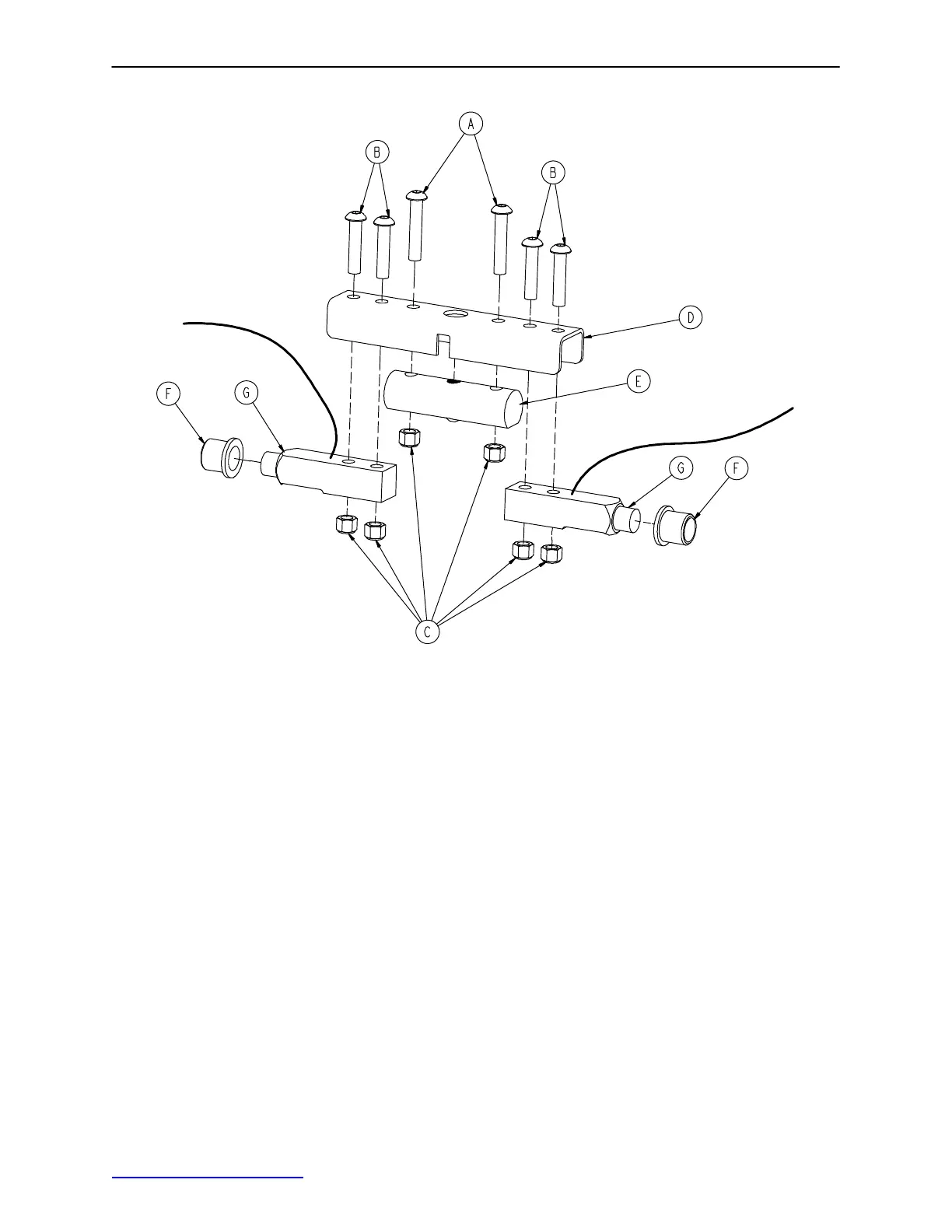

1070−017−650 26” Foot End Scale Lift Header
132
Item Part No. Part Name Qty.
A 0004−368−000 But. Hd. Cap Screw 2
B 0004−462−000 But. Hd. Cap Screw 4
C 0016−035−000 Nylock Hex Nut 6
D 1070−017−661 Lift Header Bracket 1
E 1070−017−662 Lift Header Support 1
F 1070−117−012 Scales Bushing 2
G 3002−307−057 Load Cell 2
