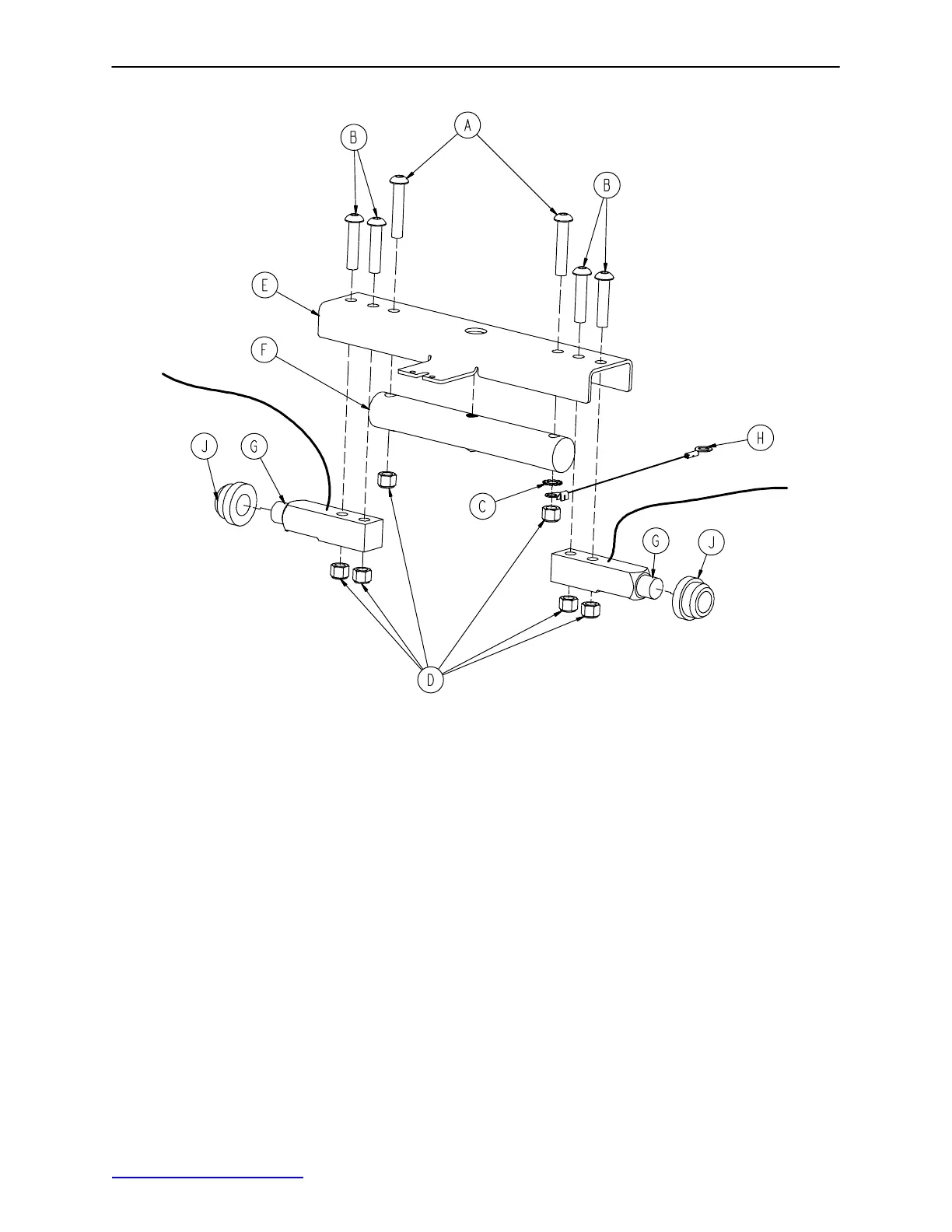

1070−017−300 30” Head End Scale Lift Header
139
Item Part No. Part Name Qty.
A 0004−368−000 But. Hd. Cap Screw 2
B 0004−462−000 But. Hd. Cap Screw 4
C 0013−019−000 External Tooth Lock Washer 1
D 0016−035−000 Nylock Hex Nut 6
E 1040−010−827 Load Cell Ground Cable 1
F 1070−017−351 Lift Header Bracket 1
G 3002−307−057 Load Cell 2
H 1070−010−827 Ground Strap 1
J 1070−117−011 Scales Bushing 2
