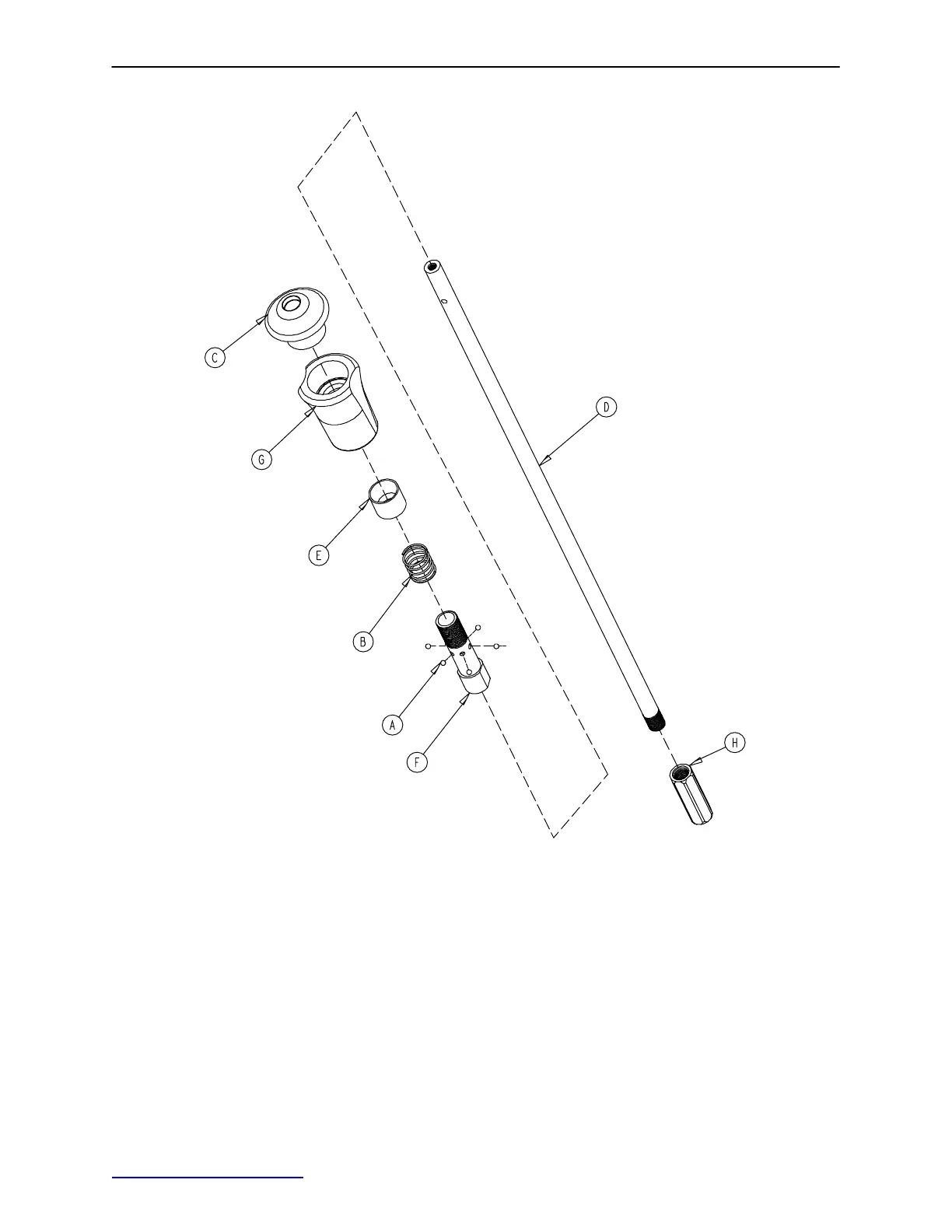

0785−035−202 3−Stage IV Pole 3rd Stage Assembly
151
Item Part No. Part Name Qty.
A 0031−021−000 Ball Bearing 6
B 0038−303−000 Compression Spring 1
C 0785−035−037 Thumb Knob 1
D 0785−035−206 Extension Rod 1
E 1010−061−013 Ball Retainer 1
F 1010−061−016 Retaining Shaft 1
G 1010−061−018 Hand Guard 1
H 1211−110−017 Nut 1
