Stryker 1015 - Page 154

To Next Page

To Previous Page

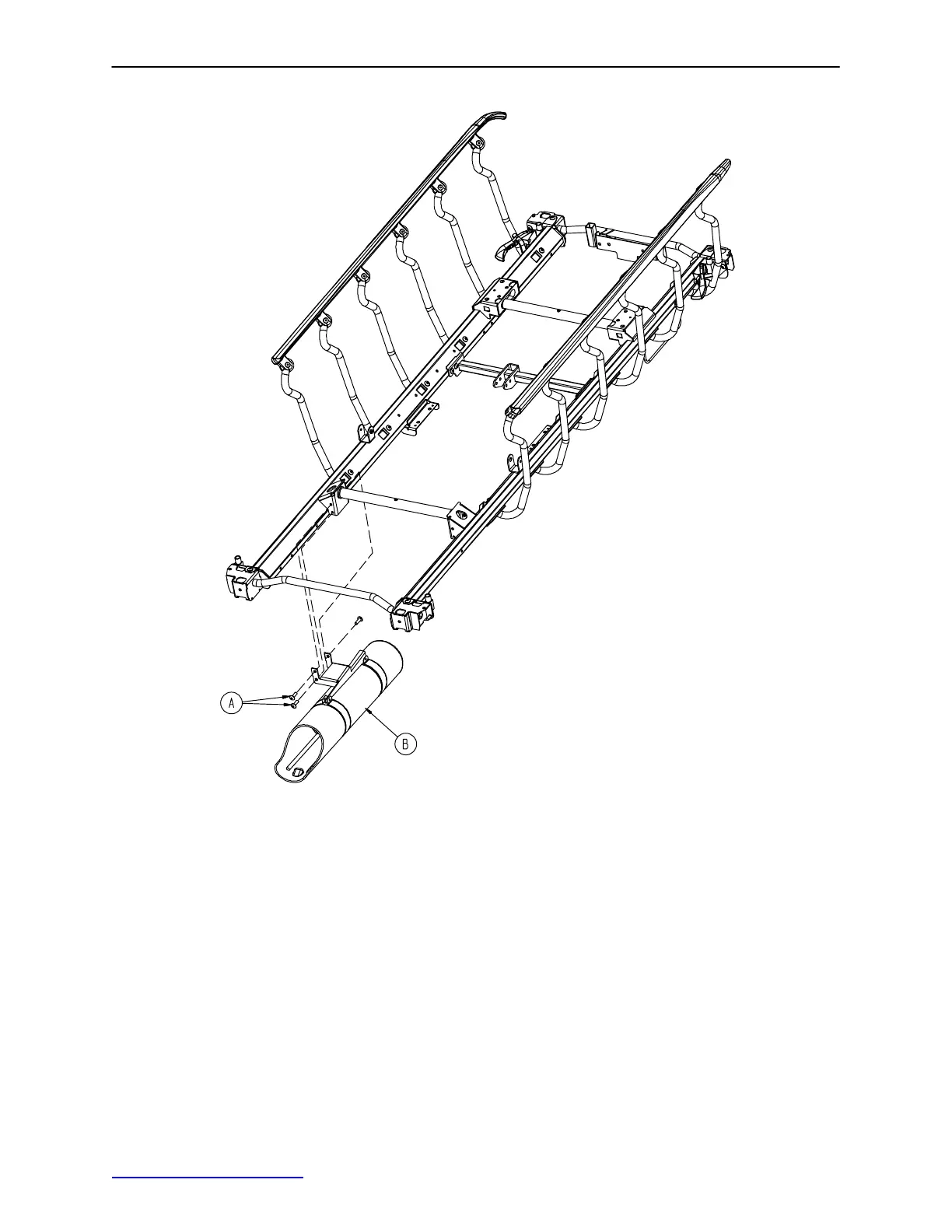

0785−030−310 Oxygen Bottle Holder, 30” Litter

153

Item Part No. Part Name Qty.

A 0023−288−000 Truss Hd. Machine Screw 3

B(page 155) O2 Receptacle Assembly 1

Return to Table of Contents
