Stryker 1015 - Page 50

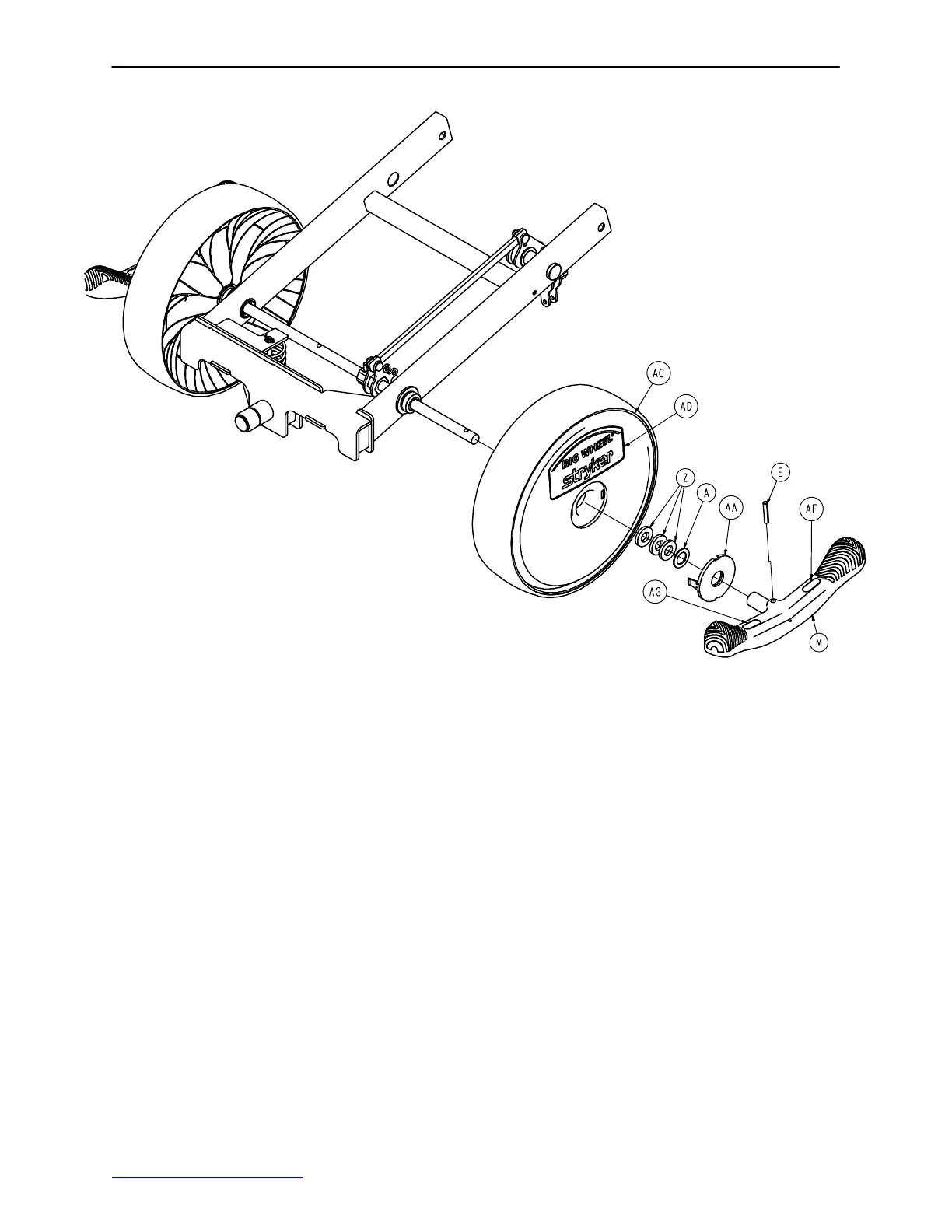

Side Control Big Wheel Carriage Assembly
49
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A 0011−148−000 Washer 4 P 1040−015−038 Washer 1
B 0011−525−000 Washer 4 R 1040−015−053 Carriage Spring Retainer 1
C 0014−004−000 Washer 1 S 1040−020−122 Cam Follower Pivot Pin 1
D 0026−341−000 Clevis Pin 1 T 1040−020−128 Lift Cam Roller 1
E 0026−342−000 Groove Pin 3 W 1040−020−129 Carriage Roller Guide 1
F 0027−020−000 Rue Ring Cotter 1 X 1040−025−014 Wheel Spacer 2
G 0028−166−000 External Retaining Ring 1 Z 1040−025−017 Pedal Spacer 6
H 0028−330−000 External Retaining Ring 1 AA 1040−015−074 Big Wheel Cap 2
J 0081−011−000 Needle Bearing 4 AB 1040−025−110 Carriage Weldment 1
K 0081−175−000 Washer 2 AC 1040−015−080 Big Wheel 2
L 0753−003−219 Side Control Brake Rod 1 AD 1040−015−078 Big Wheel Label 2
M 1040−005−155 Butterfly “V” Pedal 2 AE (page 47) Side Ctrl. Linkage Ass’y
1
N 1040−015−106 Carriage Return Spring 1 AF 1210−201−335 Brake Label − Red 2
AG 1210−201−336 Brake Label − Green 2
