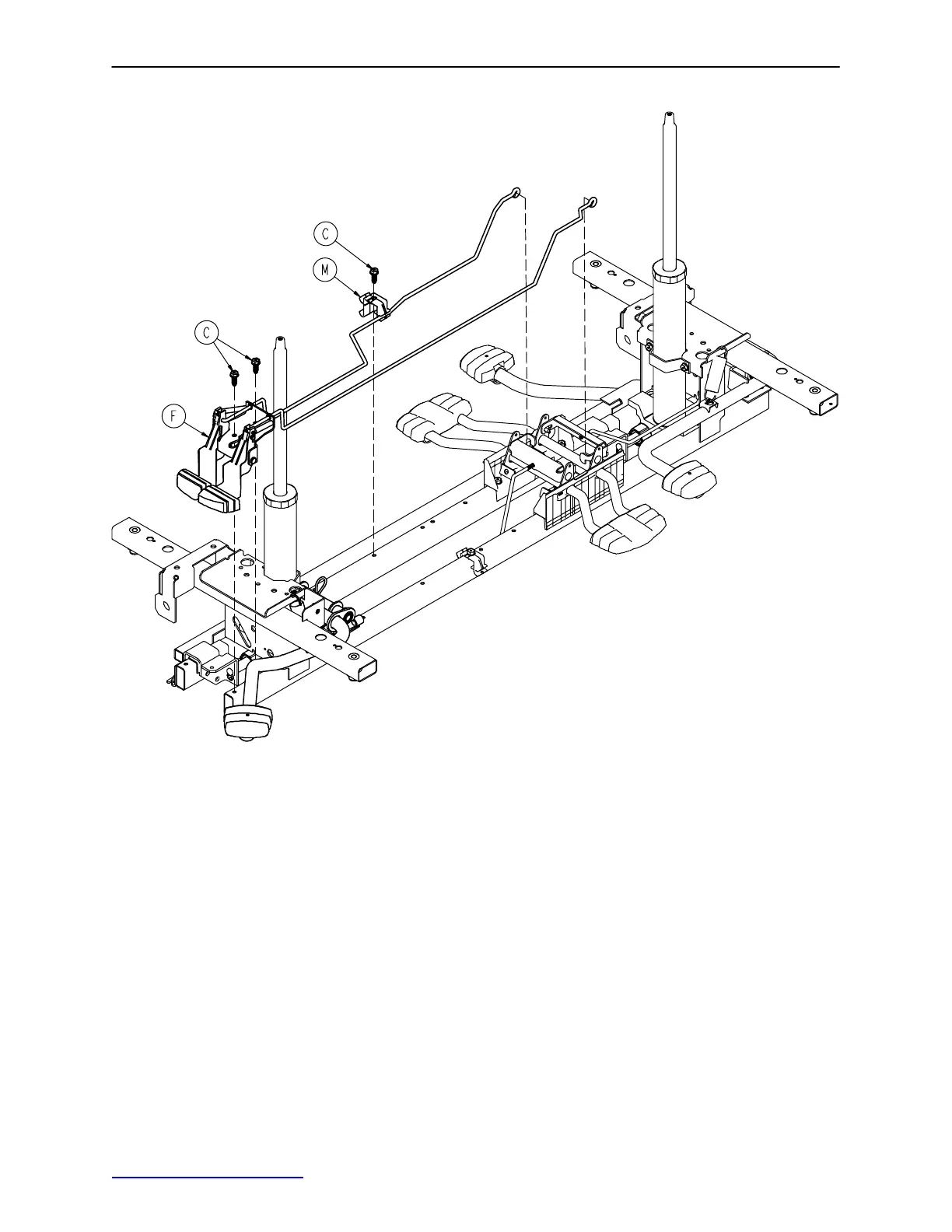

Base with 3−Sided Hydraulics
51
Item Part No. Part Name Qty.
A 0011−023−000 Washer 2
B 0014−071−000 Washer 2
C 0023−288−000 Hex Washer Hd. Screw 9
D 0027−031−000 Cotter Pin 1
E 0038−497−000 Extension Spring 1
F(page 52) Foot End Release Pedal Ass’y 1
G 0753−005−044 Pump Pedal Bushing 2
H 0753−005−063 Foot End Mtg. Bracket 1
J 0753−005−074 Pivot Pin 1
K 0753−005−075 Pump Pedal Link 1
L(page 53) Foot End Pump Pedal Ass’y 1
M 1040−010−215 Release Rod Bracket 1
