Stryker 1288 User Manual

8
Setup
1. Set up the 1288 HD Camera Console according to the instructions provided
in its user manual.

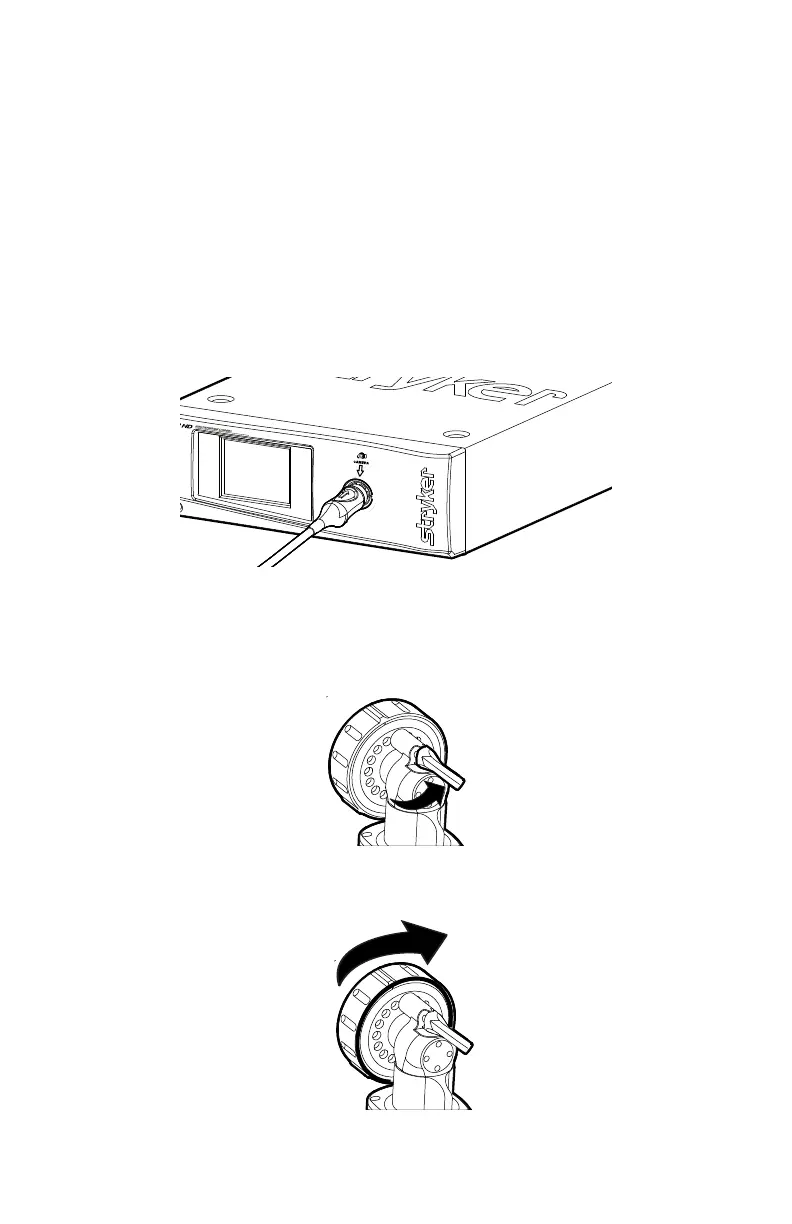

2. Connect the urology camera head to the console.
• Unscrew the soaking cap from the cable connector if necessary.
• Align the blue arrow on the cable connector with the blue arrow
onthe urology camera-connector port on the front console panel.
• Push in the connector until it locks in place.
• (To unplug the urology camera from the control unit, grasp the
knobbed portion of the connector and pull straight out.)
3. Attach an endoscope to the urology camera head.
• Remove the red dust cap if it is present.
• Lock the endobody brake by pushing it to the right.
• Twist the endobody clamp and hold it open.

Stryker 1288 Specifications

General

Brand	Stryker
Model	1288
Category	Digital Camera
Language	English
