INTRODUCTION
This manual is designed to assist you with the operation of the LD304 Birthing Bed. Read it thoroughly before
using the equipment or beginning any maintenance on it.
PRODUCT DESCRIPTION
This product is an electrically operated maternity bed designed for general patient care use. Major functions
include: raising and lowering of the litter, raising and lowering of the head and foot end portions and Trendelen-
burg−like function.

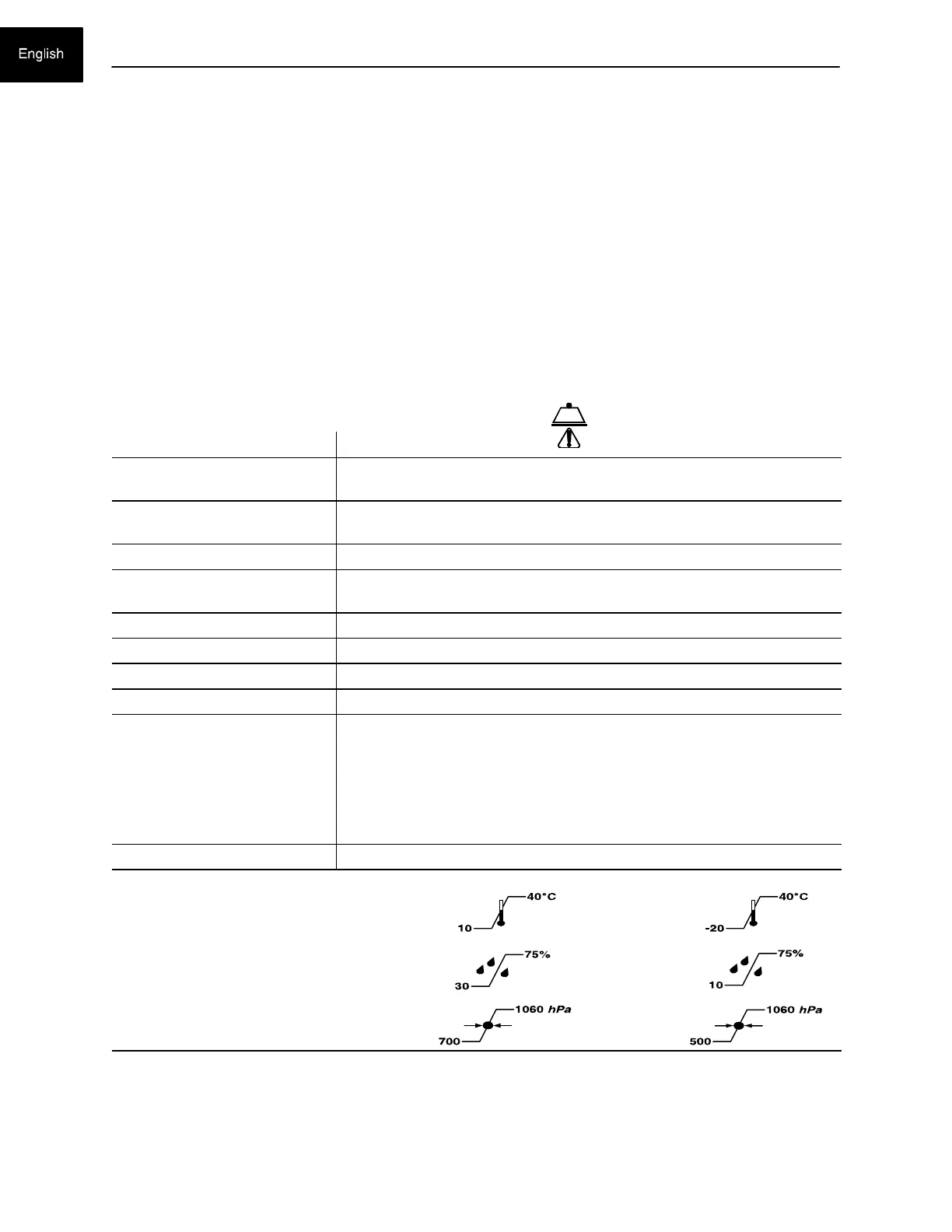

SPECIFICATIONS
Safe Working Load 500 pounds (227 kilograms)
Weight of Product 475 pounds (215 kilograms) ; standard configuration
525 pounds (238 kilograms) ; all options/accessories
Bed Length/Width 93” x 41” (with siderails up) − 37” (with siderails down)
236 cm x 104 cm (with siderails up) − 94 cm (with siderails down)
Bed Height (to top of seat) Low − 17.5” (44 cm), High − 35.5” (90 cm) (w/6” Casters)
Mattress Size Head − 49.5” (126 cm) x 33” (84 cm) x 5” (13 cm), Foot − 30” (76 cm) x
30” (76 cm) x 3” (8 cm), Patient Sleep Surface − 81” (206 cm)
Caster Size 6” Standard; 8” Optional
Critical Angles Maximum Elevation − Head 70!, Trendelenburg 8!
Foot Section Height Foot Section Travel − 0” (0 cm) Up / 7” (17.8 cm) Down
Break−Away Point from Wall 60” (152 cm)
Electrical Standard 4 motor function: Head−Bed−Foot−Trendelenburg
120 VAC, 60 Hz, 10 Amp
Optional: 230 VAC!, 50/60 Hz, 10Amp
Current leakage less than 300 microamperes (per UL 60601−1).
Hospital grade plug and 3−wire heavy duty cord.
Compatible with non−flammable anesthetic agents and oxygen by nasal
catheter or mask type.
Rated Duty Cycle 5% / hr (Continuous Operation with Short−Time Loading)
Environmental Conditions Operation Storage and Transportation
Temperature
Relative Humidity
Atmospheric Pressure
Stryker reserves the right to change specifications without notice.
Specifications listed are approximate and may vary slightly from unit to unit or by power supply fluctuations
