Bed Operation
OPERATING THE 3−STAGE PERMANENTLY ATTACHED IV POLE
B
D
A
C
E
A
E

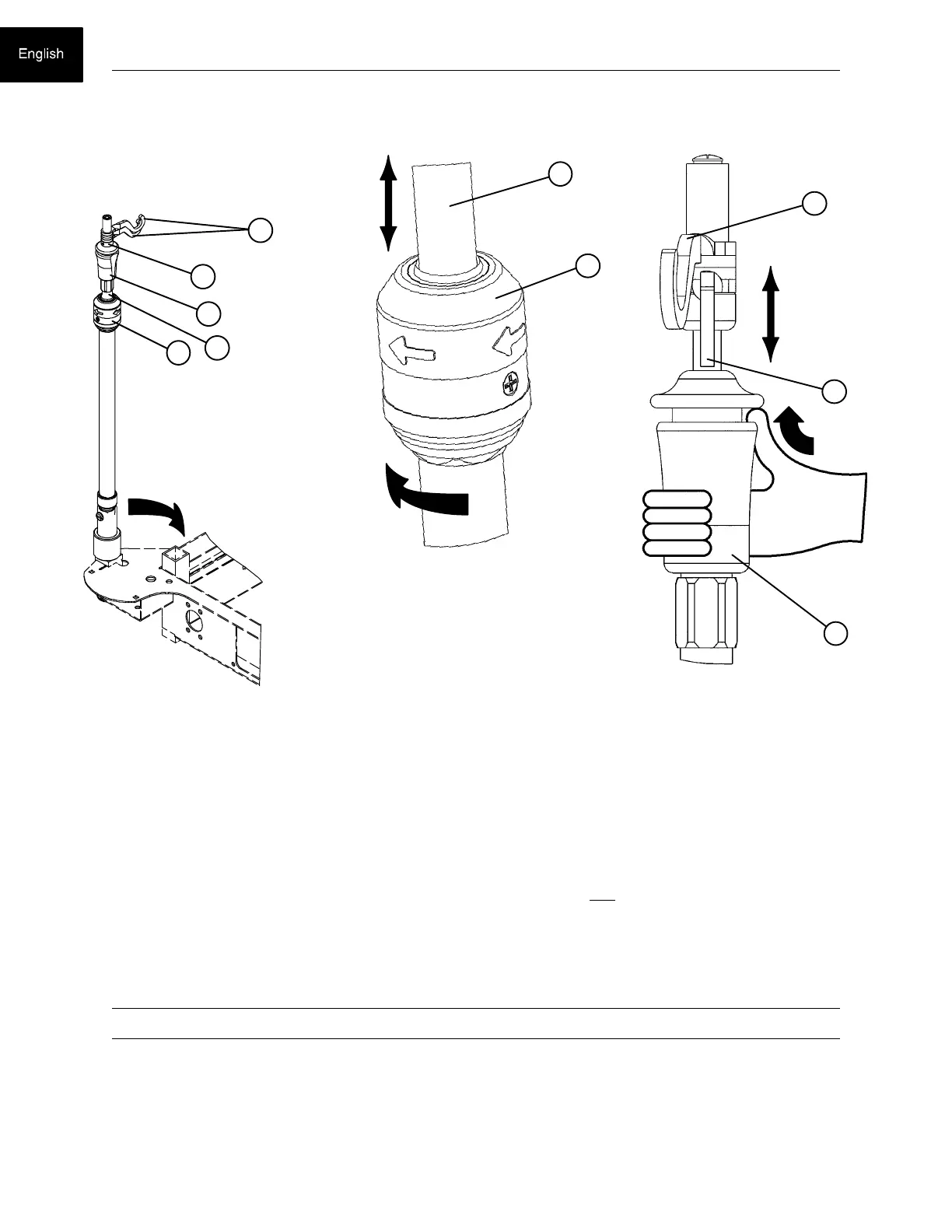

DETAIL OF I.V. POLE LATCH
DETAIL OF I.V. POLE GRIP
B
D
C
NOTE
The 3−stage, permanently atached IV pole can only be installed at the head end of the bed
To use the 3−stage permanently attached IV pole:
1. Lift and pivot the pole from the storage position and push down until it is locked into the receptacle.
2. To raise the height of the pole, pull up on the telescoping portion (A) until it locks into place at its fully raised
position.
3. For a higher IV pole, pull up on section (B). Release section (B) at any desired height and it will lock into
place.
4. Rotate the IV hangers (C) to the desired position and hang the IV bags.
5. To lower the IV pole, push up on the red portion of grip (D) while holding onto section (B) until it lowers.
Turn latch (E) clockwise until section (A) lowers.
CAUTION
To avoid damage, the weight of the IV bags should not exceed 40 pounds.
To avoid damage while transporting the bed, verify the IV pole is at a low enough height to allow it to pass
safely through door openings.
