Stryker 747 - Fifth Wheel Assembly Service

Torque item A
to 80 ± 20 in-lb
Torque item A
to 80 ± 20 in-lb
B
E
A
A
E
E
C
D
D
F
G
Torque item F
to 50 ± 4 in-lb

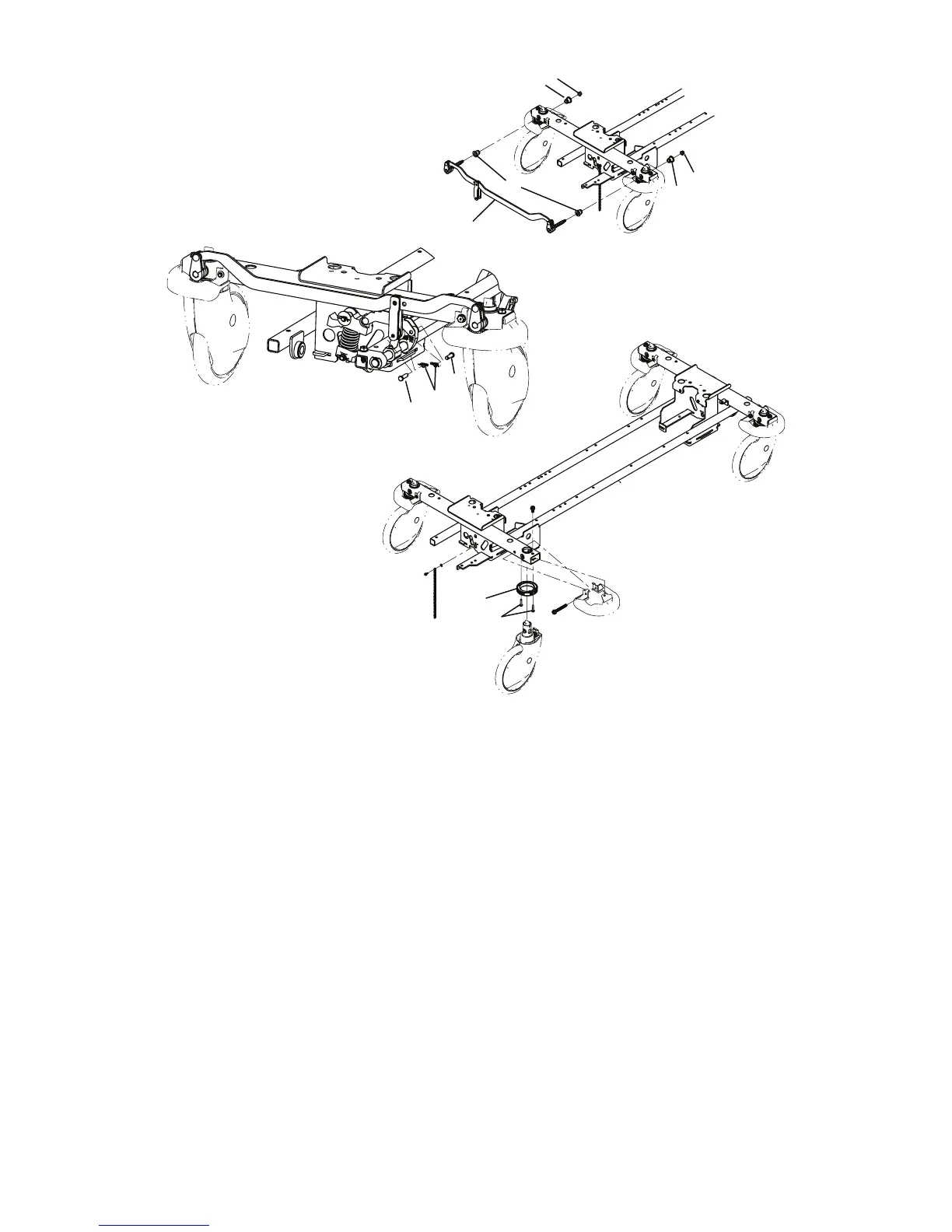

FFiigguurree 33 –– BBrraakkee aasssseemmbbllyy ccoommppoonneennttss
BBrraakkee sswwiivveell lloocckk rriinngg rreeppllaacceemmeenntt
Tools required:
• 1/2” socket
• 5/16” socket
• 3/8” drive ratchet
• 3/8” drive extension
• Need nose pliers
• Bungee cords
• Small bottle jack
• 3/8” drive torque wrench (in-lb)
1. Raise the product to the highest position.
2. Raise both siderails to the up and latched position.
3. Raise the base hood and support the hood with bungee cords.
4. Put the brake/steer pedal in the neutral position.
EN 18
0747-109-002 Rev A.3
