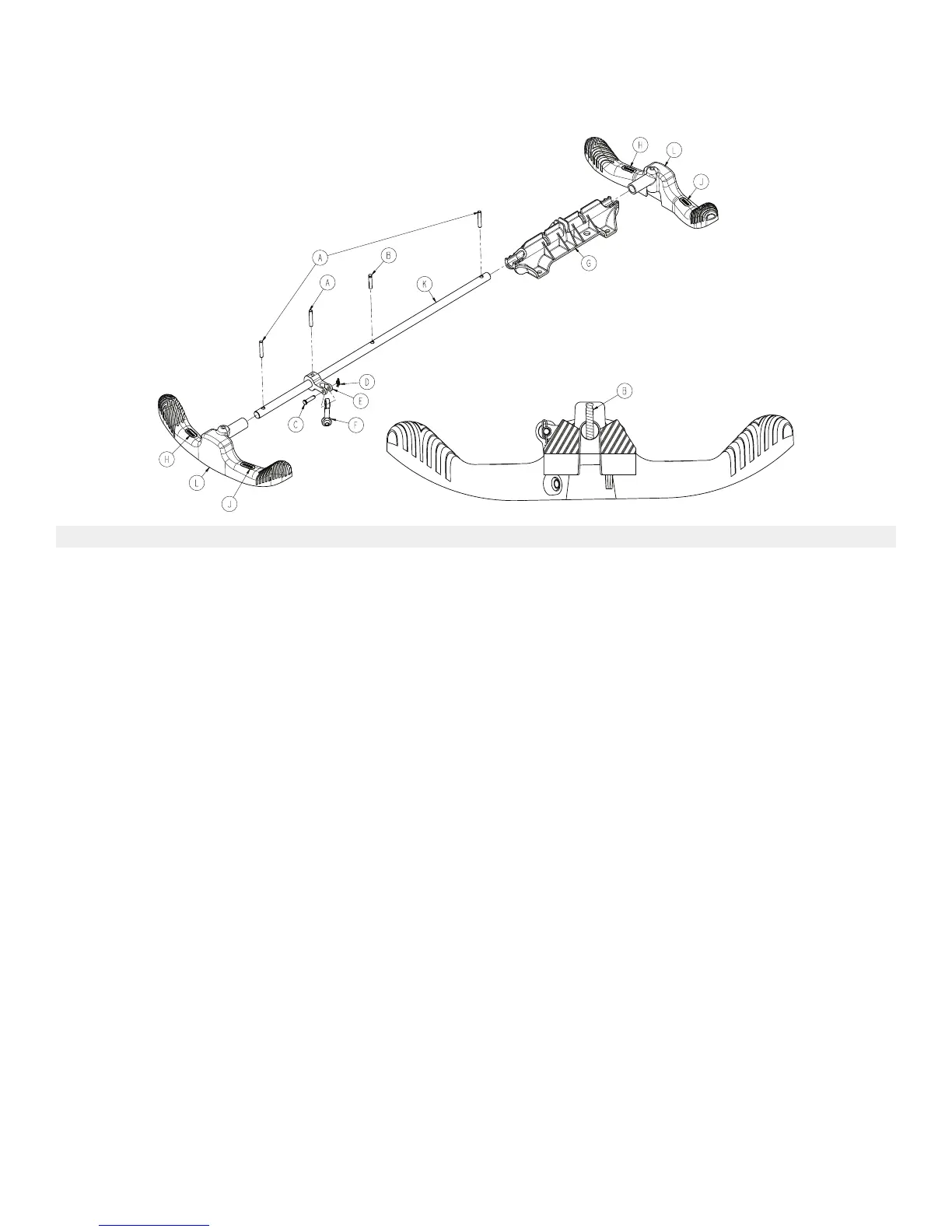

SSiiddee ccoonnttrrooll bbrraakkee aasssseemmbbllyy
1105-003-210 Rev B (Reference only)
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0026-342-000 Grooved pin 3
B 0026-138-000 Grooved pin 1
C 0026-340-000 Clevis pin 1
D 0027-020-000 Rue ring cotter 1
E 0753-003-112 Side control link 1
F 0753-003-117 Rod end link 1
G 0853-003-214 Side control shaft support 1
H 1105-001-335 Label, brake 2
J 1105-001-336 Label, steer 2
K 1105-003-319 Side control brake rod table 1
L 1105-005-154 Butterfly “V” pedal 2
0747-109-002 Rev A.3
43 EN
