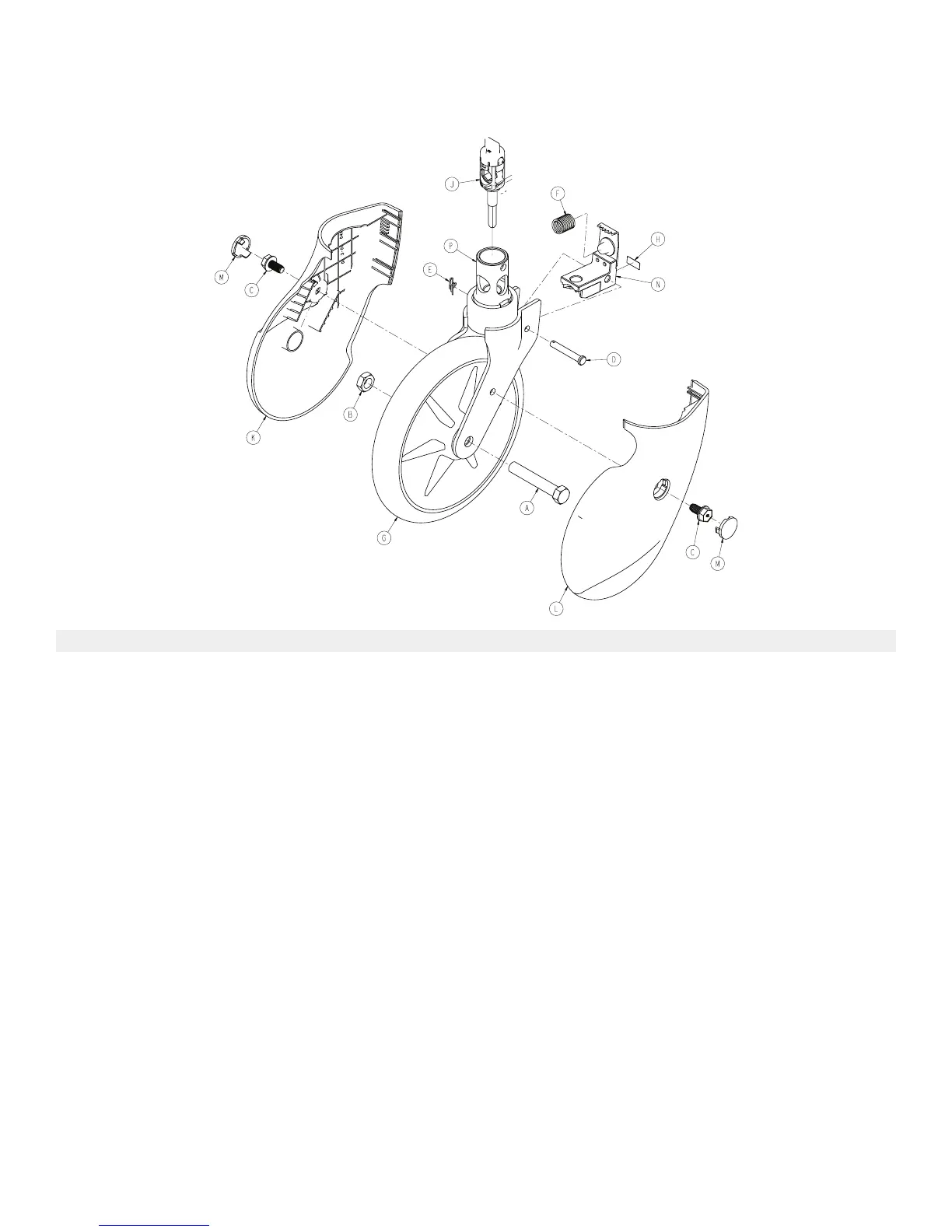

88 iinn.. ccaasstteerr wwiitthh ffuullll ccoovveerr aasssseemmbbllyy -- 00885533--550033--002200
Rev C (Reference only)
Torque item B
to 9 ± 2 ft-lb
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0003-099-000* Hex head cap screw 1
B 0016-060-000* Toplock hex jam nut 1
C 0023-330-000 Hex washer head screw 2
D 0026-377-000* Clevis pin 1
E 0027-020-000* Rue ring cotter 1
F 0038-596-000* Compression wire 1
G 0753-103-215* Molded wheel assembly 1
H 0853-003-032* Label, caster brake pad 1
J 0853-003-040* Cam housing assembly 1
K 0853-003-046 Caster cover, right 1
L 0853-003-047 Caster cover, left 1
M 0853-003-048 Caster cover plug 2
N 0853-203-030* Brake pad assembly 1
P 0853-303-021* Caster horn with bearing assembly 1
*Shown for reference only. Individual part components are not available for sale.
0747-109-002 Rev A.3
45 EN
