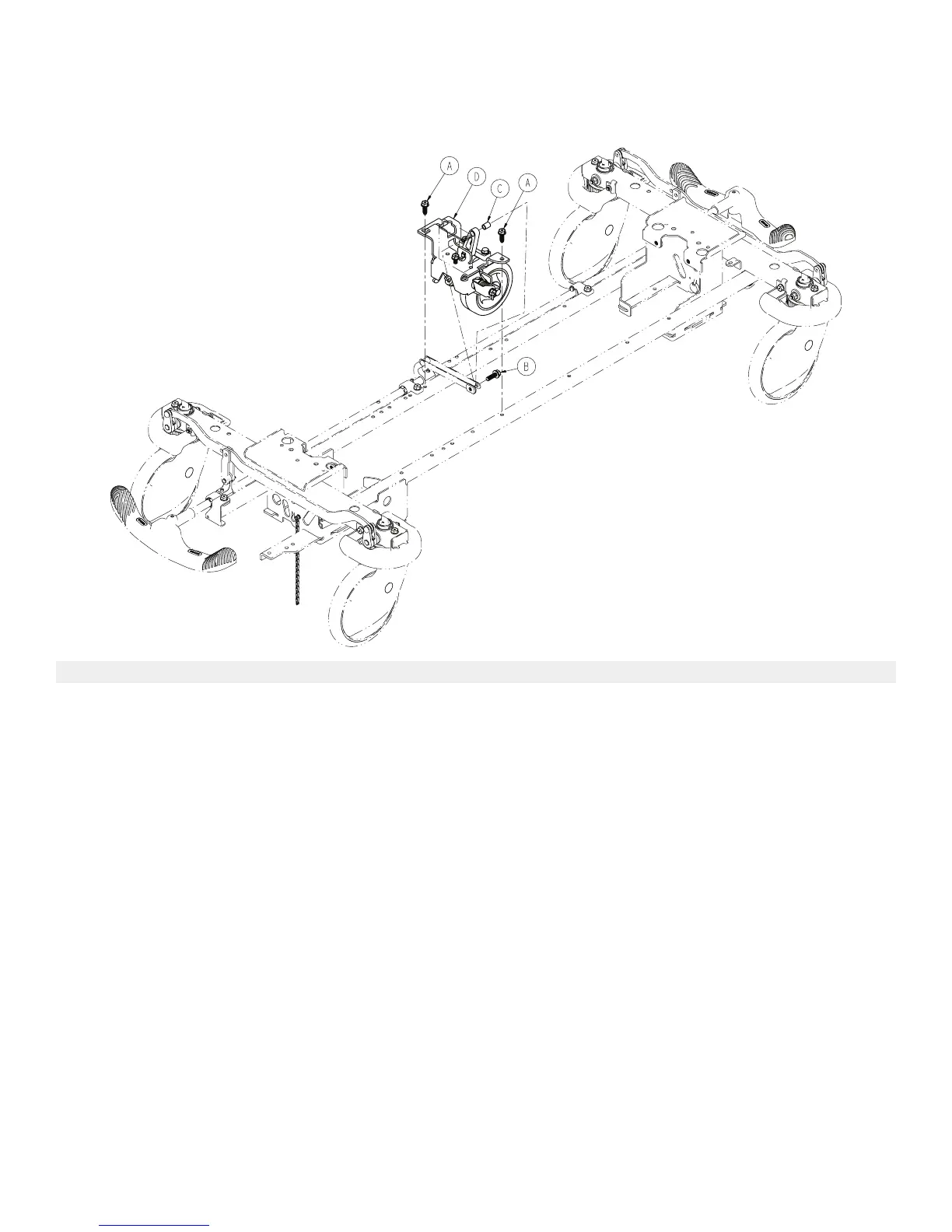

RReettrraaccttaabbllee ffiifftthh wwhheeeell aasssseemmbbllyy
1105-006-110 Rev A (Reference only)
Torque item A
to 13 ± 2 ft-lb
Torque item A
to 13 ± 2 ft-lb
Torque item B
to 13 ± 2 ft-lb
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0023-288-000 Hex washer head screw 2
B 0023-305-000 Hex washer head screw 1
C 0753-006-148 Cam bearing 1
D 1105-006-130
Fifth wheel assembly - 1105-006-130
(page 48)
1
EN 46
0747-109-002 Rev A.3
