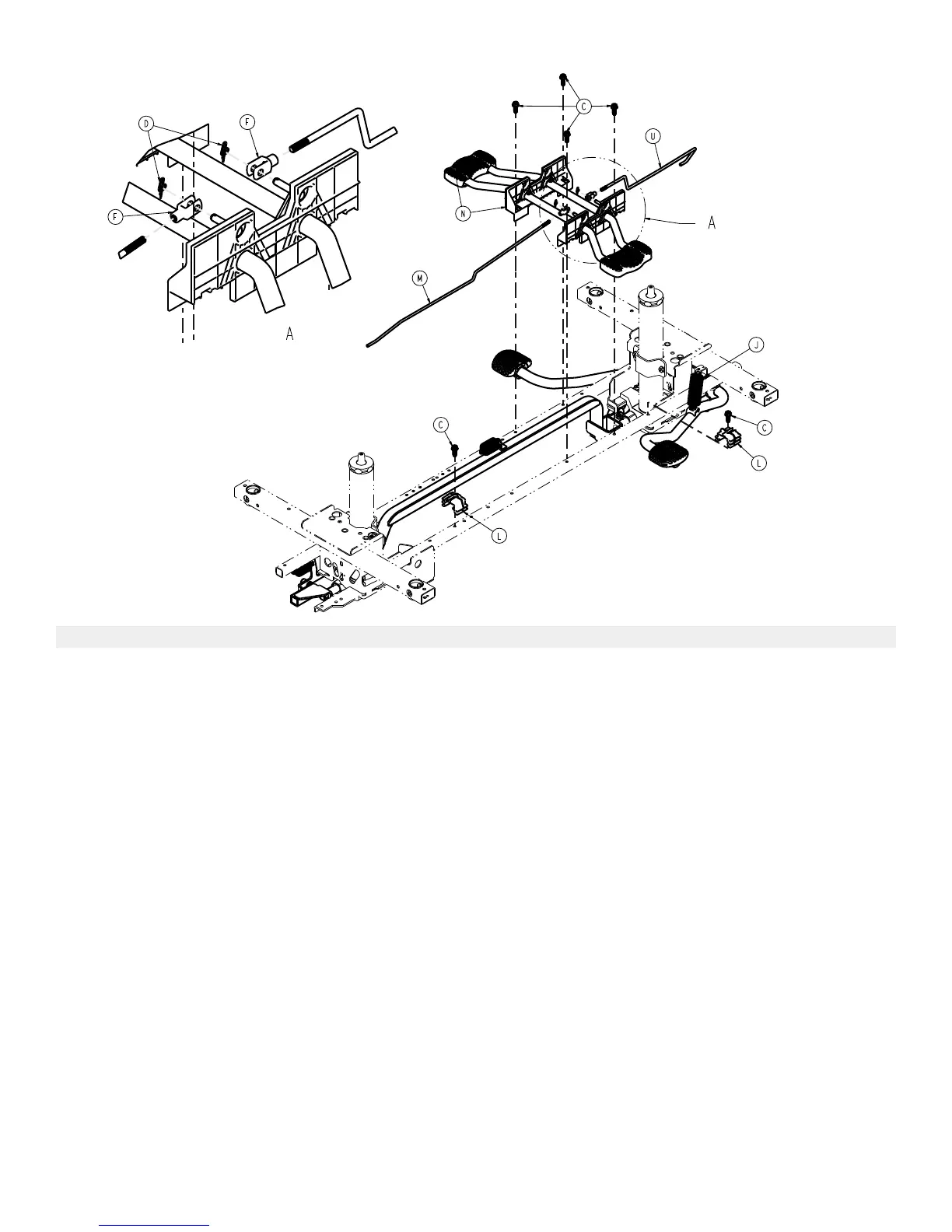

Torque item C
to 13 ± 2 ft-lb
Torque item C
to 13 ± 2 ft-lb
Torque item C
to 13 ± 2 ft-lb
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0011-023-000 Washer 2
B 0014-071-000 Washer 2
C 0023-288-000 Hex washer head screw 8
D 0027-020-000 Rue ring cotter 2
E 0027-031-000 Hair pin cotter 1
F 0052-909-000 Clevis joint 2
G 0753-005-044 Pump pedal bushing 2
H 0753-005-089 Pump ram plug 2
J 0853-005-009 Return spring 3
K 0853-005-074 Pivot pin 1
L 0853-010-215 Release rod bracket 2
M 1105-004-015 Release rod, foot end 1
N 0853-004-251 Lowering pedal assembly 1
P 1105-005-035 Pump connecting tube weldment 1
R 1105-005-075 Pump pedal link 1
T 1105-005-285
Pump pedal assembly, head end -
1105-005-285
(page 53)
1
U 0853-204-014 Release rod, head end 1
0747-109-002 Rev A.3
51 EN
