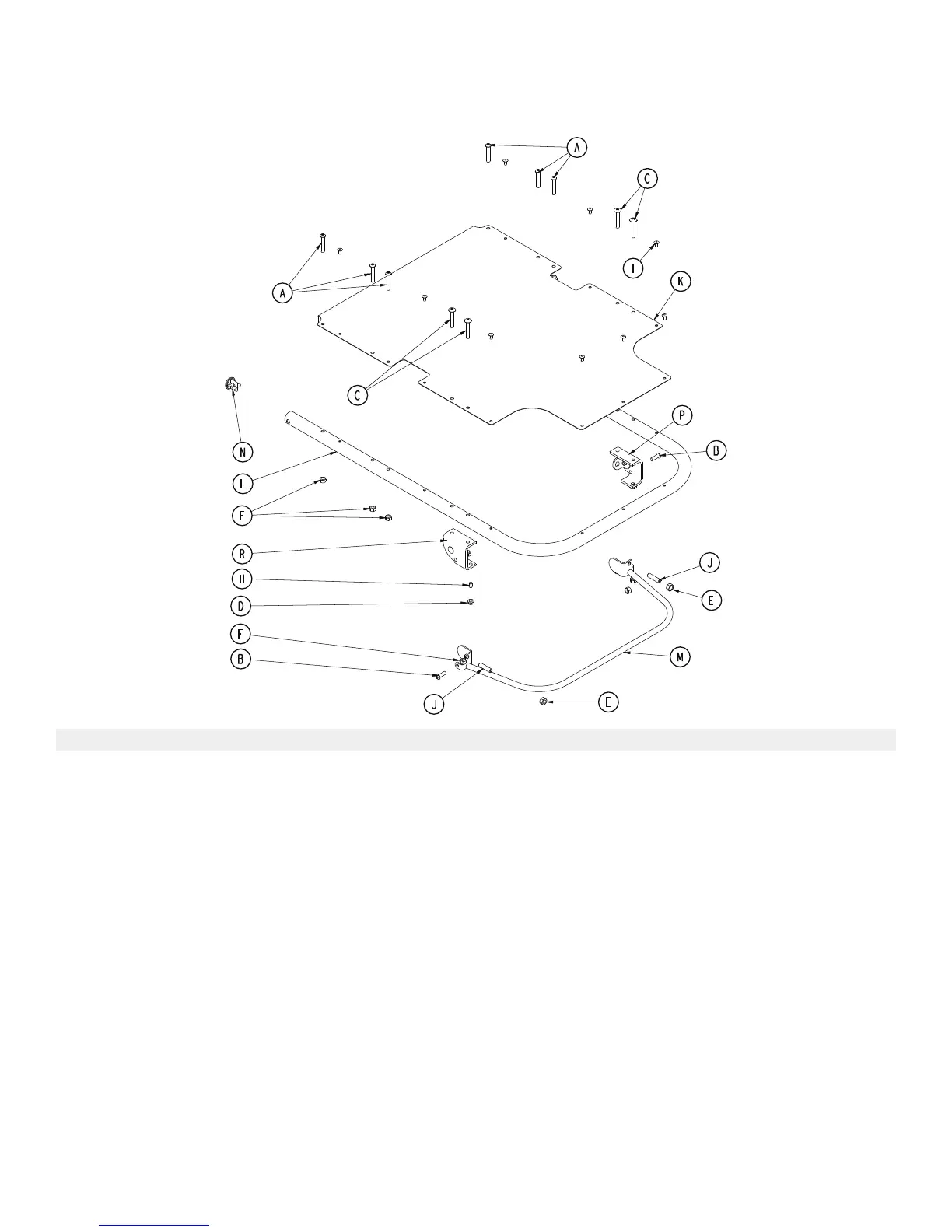

LLiitttteerr aasssseemmbbllyy,, ppnneeuummaattiicc FFoowwlleerr -- MMooddeell 774477
0744-231-120 Rev A (Reference only)
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0004-135-000 Button head cap screw 6
B 0004-161-000 Button head cap screw 2
C 0007-071-000 Truss head machine screw 4
D 0015-037-000 Hex jam nut 2
E 0015-050-000 Hex nut 2
F 0016-028-000 Fiberlock hex nut 12
H 0021-125-000 Set screw 2
J 0021-126-000 Set screw 2
K 0721-231-012 Fowler skin 1
L 0721-231-013 Fowler tube 1
M 0721-231-118 Trip bar assembly 1
N 1001-001-036 Hole plug 2
P 1210-031-106
Fowler outer housing assembly, right -
1210-031-106
(page 64)
1
R 1210-031-107
Fowler outer housing assembly, left -
1210-031-107
(page 65)
1
T 0025-079-000 Rivet 9
0747-109-002 Rev A.3
63 EN
