Stryker CORE 2 Console - Hardware Features

8 www.stryker.com
EN 5400-052-700-EN Rev-D
9 Hardware Features
B
A
G
F
E D
C

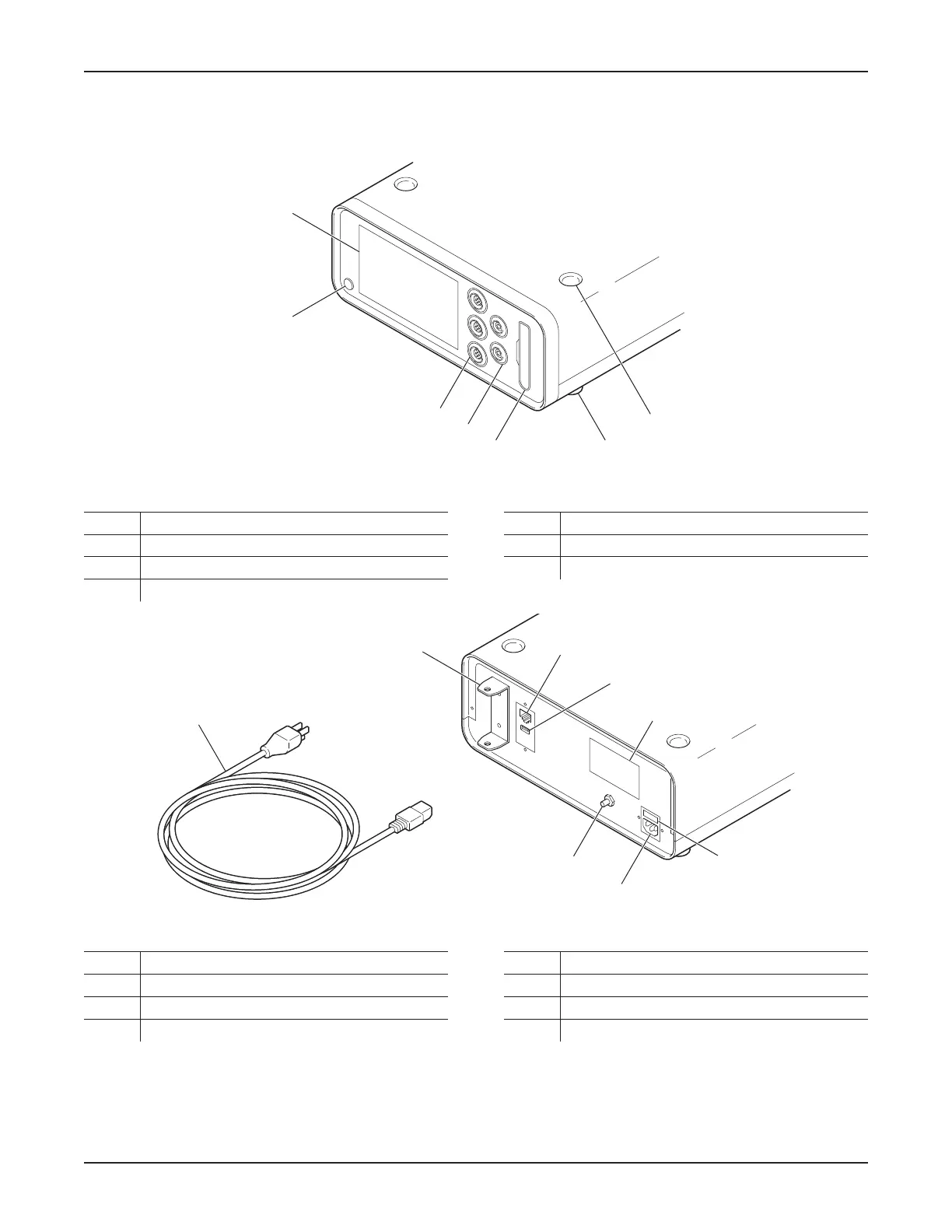

Figure 2 – Console (Front View)
A Power Button E Irrigation Cassette Port
B Touch Screen F Footswitch Ports (2)
C Stacking Inserts (4) G Motor Ports (3)
D Stacking Feet (4)
H
I
K
N
O
J
L
M
Figure 3 – Console (Rear View)
H Power Cord L Specification Label
I Pole Bracket M Fuse Holder
J Ethernet Port N Power Receptacle
K USB Port O Equipotential Lug
0000221359, Rev. D Effective Date: Jun 1, 2017 10:00:55 AM
Print Date: Jun 08, 2017 08:54:46 AM
