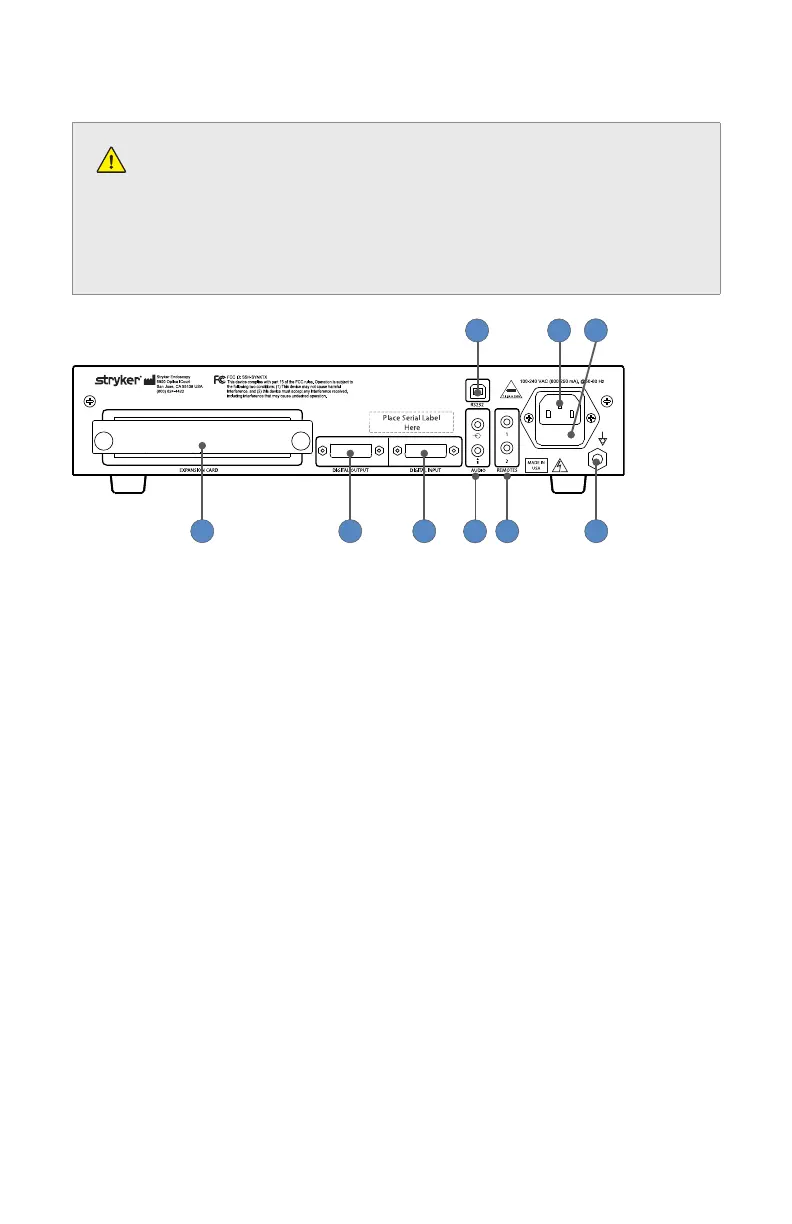

SYNK Wireless Transmitter Rear Panel
Warning
• Only a Stryker representative can remove the video card from the expansion card
slot�
• Never touch the device and a patient simultaneously, as there is a risk of electric
shock�
BLANK
6 7
8
2 3 91
4
5
1. Expansion Card Slot The card slot can accomodate the following video
cards:
• DVI-I
• Composite
Contact your Stryker representative for more
information�
2. Digital Input Connects to a digital input source�
3. Digital Output Connects to primary display�
4. Audio Connectors Line-in and Mic-in connectors�
5. Remotes Connectors Remote 1 and 2 connectors�
6. RS232 Port Maintenance port�
7. AC Power Inlet Connects to separable power cord that can be used for
mains isolation�
8. Fuse Panel Contains two 1�6A/250V (slow blow, high breaking
capacity 1500A) fuses�
9. Equipotential Ground Plug For connection to an external protective earthing
system as described in the IEC 60601-1 Electrical Safety
standard�
