6 www.stryker.com
2006/05 6206-001-700 Rev-
Slide the run/safe control to the safe position.
Rotate the spring-loaded blade collar clockwise align-
ing the slots. Insert the blade (see figure 1).
1.
2.

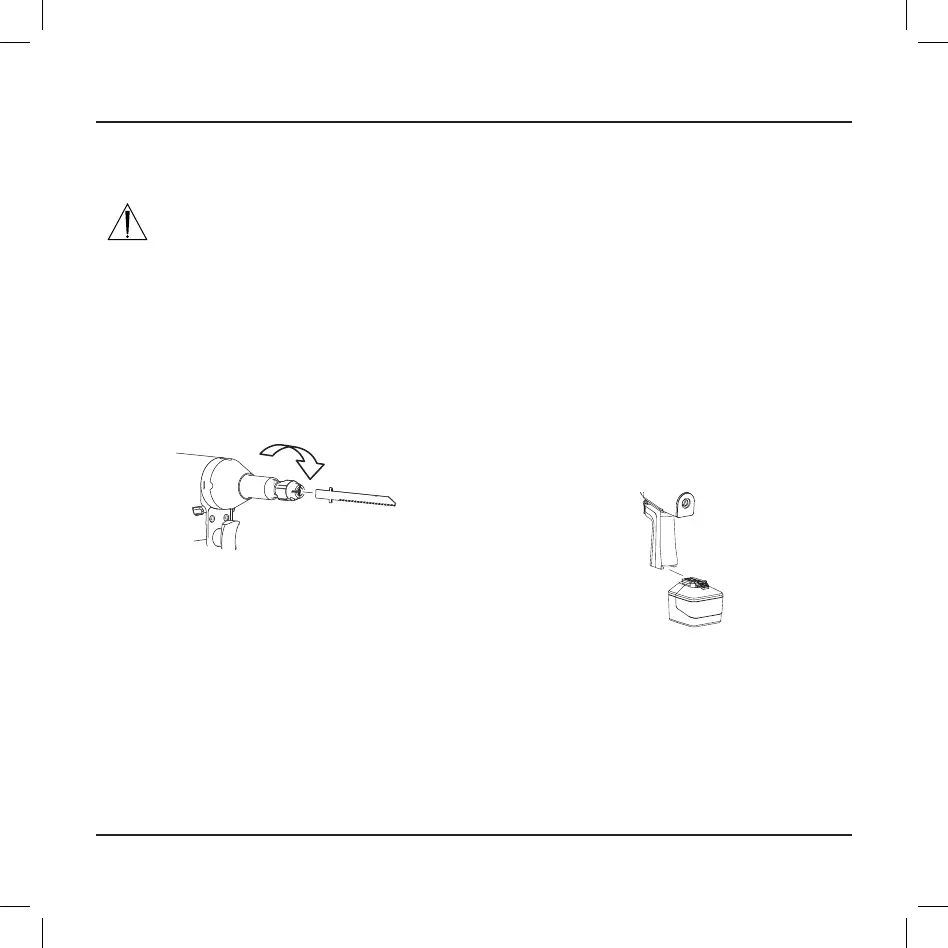

Figure 1 To Install Blade
Figure 2 To Install Battery Pack
Instructions
NOTE: The blade teeth may be directed in any of four
positions.
To Install Battery Pack
NOTES:
• This handpiece is designed to accept a Stryker Large
Battery Pack REF 6215 only. This battery pack can
be charged in the Stryker System 6 Battery Charger
REF 6110-120 configured with the appropriate battery
charger module.
• See the instructions supplied with the battery charger
and/or battery pack for charging details and specifi-
cations.
Slide a fully charged battery pack firmly into the
handpiece until the battery latch snaps, indicating the
battery pack is secure (see figure 2).
1.
Release the blade collar. Ensure the blade collar
springs back to its original position indicating the
blade is properly seated.
Gently tug the blade back and forth to ensure it is
secure.
3.
4.
To Install Cutting Accessory
WARNING: To prevent the inadvertent
running of the handpiece, ALWAYS place
the run/safe control in the safe position
before installing or removing any cutting
accessory.
Test the operation of the handpiece by sliding the
run/safe control to a run position and squeezing the
trigger.
Slide the run/safe control to the safe position until
you are ready to use the handpiece.
2.
3.
