Stuart Turner BOOSTAMATIC 330 - Technical Specification; Pump Connections

-5-
TECHNICAL SPECIFICATION
Note: *Model 600 Boostamatic duty rating is only continuous (S1) at 7 litres/min and
above.
Note: For information on other voltages/frequencies which are not shown, consult any
supplementary instruction sheet supplied, or the rating label attached to the
pump.
Stuart Turner reserve the right to amend the specification in line with its policy of
continuous development of its products.

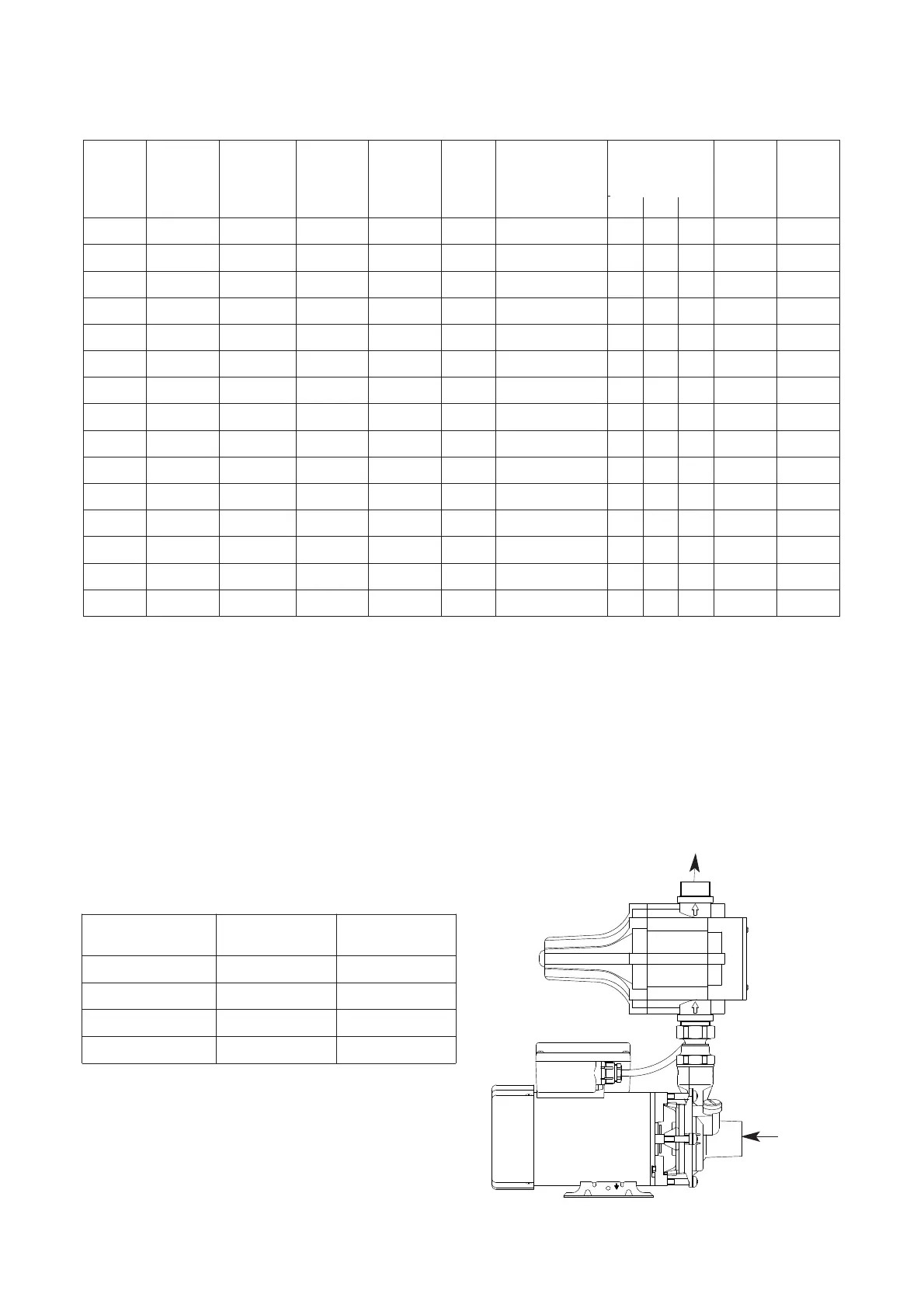

PUMP CONNECTIONS
Outlet
Inlet
Fig.1
Model Supply Max. Watts
consumed
Nominal
Watts
Output
(Motor)
Full
Load
Current
(AMPS)
Enc.
Rating
Duty
Rating
Dims (mm) Gross
Weight
(packed)
kg
No of
Pump
Stages
L W H
330 230/1/50 340 180 1.6 IP44 Continuous (S1) 251 199 337 7.0 1
330 110/1/50 440 370 4.3 IP44 Continuous (S1) 280 199 337 7.0 1
500 230/1/50 540 370 2.4 IP44 Continuous (S1) 280 199 337 8.5 1
500 110/1/50 555 370 5.3 IP44 Continuous (S1) 280 199 337 8.5 1
500 110/1/60 664 370 5.9 IP44 Continuous (S1) 280 199 337 8.5 1
600 230/1/50 885 550 3.9 IP44
*
291 199 337 10.4 1
Diver 3 230/1/50 810 565 3.7 IP68 Continuous (S1) 149 149 376 10.6 3
Diver 4 230/1/50 960 670 4.2 IP68 Continuous (S1) 149 149 396 10.8 4
Jet 40 230/1/50 490 340 2.4 IP44 Continuous (S1) 358 209 410 9.6 1
Jet 90 230/1/50 1195 834 5.2 IP44 Continuous (S1) 400 230 419 14.0 1
KB6 230/1/50 425 250 1.9 IP55 Continuous (S1) 305 244 348 8.3 1
LB5-4 230/1/50 920 600 4.1 IP55 Continuous (S1) 401 215 405 12.2 4
LB6-4 230/1/50 1105 760 5.1 IP55 Continuous (S1) 425 215 405 13.1 4
TB5-2 230/1/50 850 530 3.7 IP55 Continuous (S1) 326 227 402 10.4 2
TB7-2 230/1/50 1150 800 5.3 IP55 Continuous (S1) 350 227 402 11.6 2
Models
Inlet
(Pump)
Outlet
(Control Module)
Loddon Range G1¼ Female G1 Male
Jet 40 G1 Male G1 Male
Surface Models G1 Female G1 Male
Submersible Models G1 Female G1 Male
