Studer D19 MicVALVE - Audio and Sync Connections, Pin Assignments; MIC and Line Inputs, Insert Returns; Line Outputs, Insert Sends; AES;EBU, Digital Output

D19 MicVALVE
E2/4 Operation Date printed: 9.2.2000

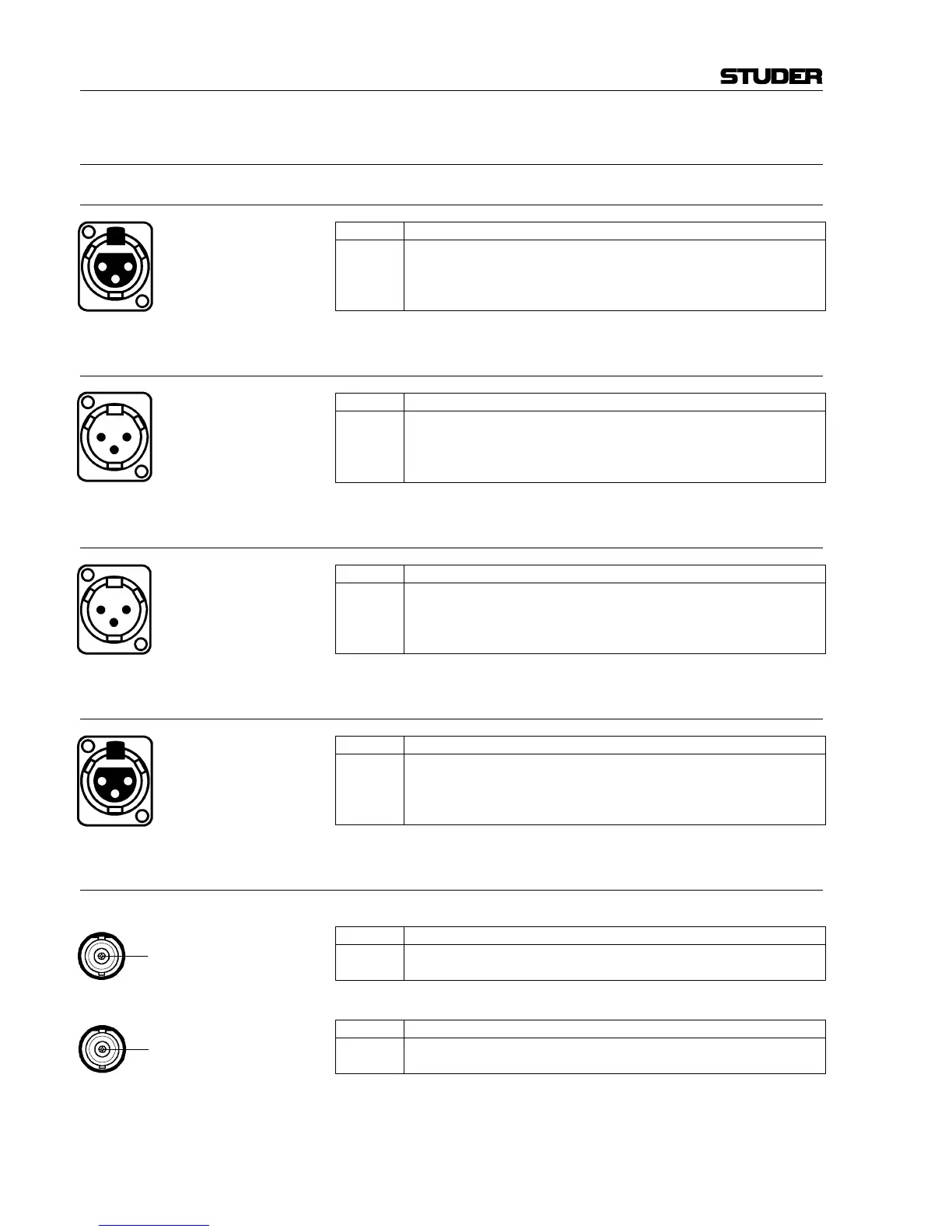

2.2 Audio and Sync Connections, Pin Assignments
2.2.1 Mic and Line Inputs, Insert Returns (XLR-3f)
Pin Description
1
2
3
–
Ground
Input +
Input –
Chassis
2.2.2 Line Outputs, Insert Sends (XLR-3m)
Pin Description
1
2
3
–
Ground
Output +
Output –
Chassis
2.2.3 AES/EBU, Digital Output (XLR-3m)
Pin Description
1
2
3
–
Ground
Output +
Output –
Chassis
2.2.4 AES IN, External AES/EBU Synchronization (XLR-3f)
Pin Description
1
2
3
–
Ground
Input +
Input –
Chassis
2.2.5 Word Clock In/Out (BNC, 75 Ω)
Input
Pin Description
center
outer
Word Clock Input (TTL level)
Ground
Output
Pin Description
center
outer
Word Clock Output (TTL level)
Ground
1
2
3
1
2
3
1 2
3
1 2
3
Center
Center
