Studer D19 MicVALVE - Using the TDIF-1 8-Channel Interface

D19 MicVALVE
Date printed: 9.2.2000 Operation E2/5

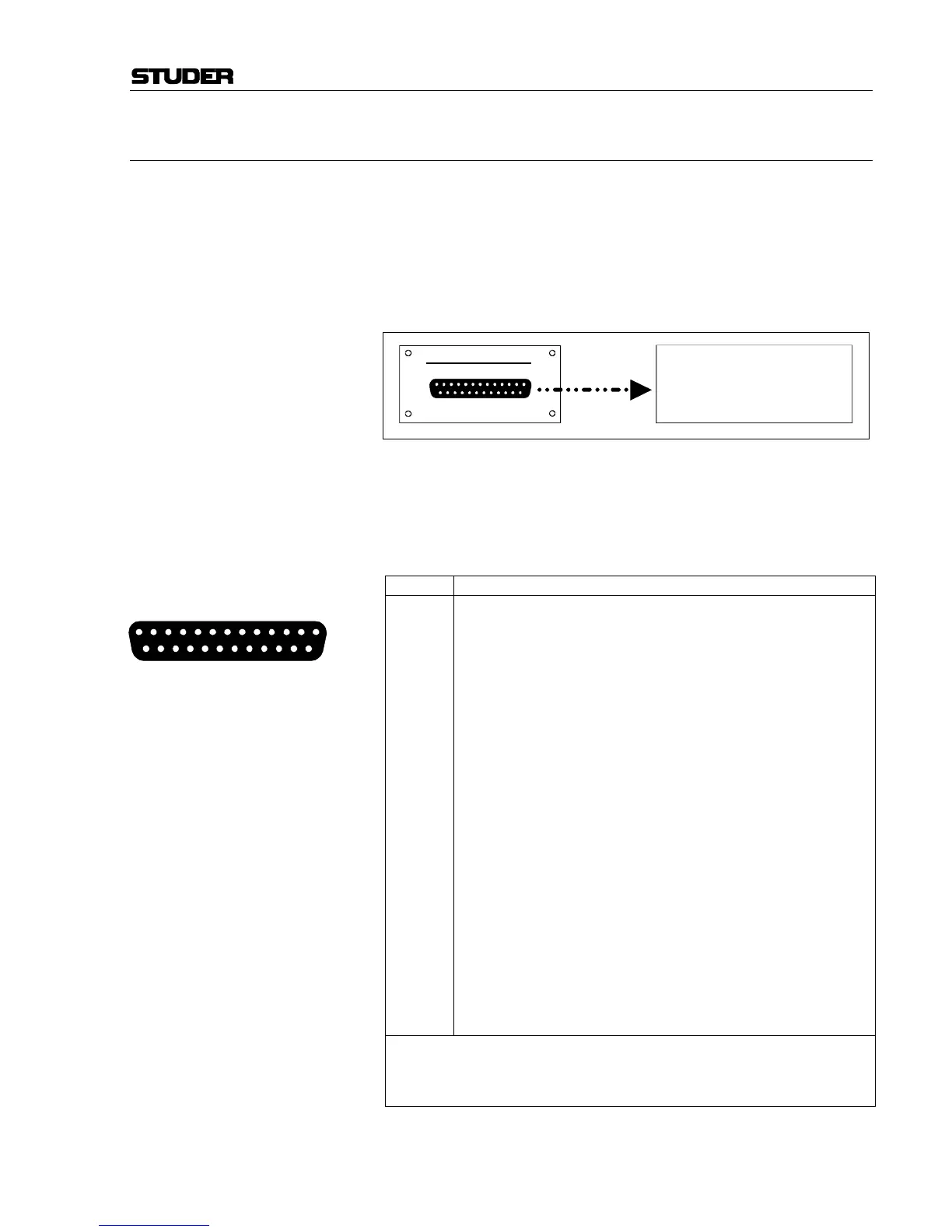

2.2.6 Using the TDIF-1 8-Channel Interface
The Tascam TDIF-1 digital I/O format interface is used for sending digital
audio data from the D19 MicVALVE to Tascam DA-88 and compatible
units.
Basic characteristics: 8-channel audio data with sampling frequency information, emphasis infor-
mation, and sync signal.
Signal transmission level is C-MOS, unbalanced.
Cables: Order No.: F-10.025.031.08 (1.0 m)
F-10.025.031.09 (5.0 m)
Note: The maximum cable length should not exceed 10 m.
Only the specified connecting cables should be used (order numbers above).
Pin assignment:
Pin Designation
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
DOUT 1/2
DOUT 3/4
DOUT 5/6
DOUT 7/8
LRCK OUT
FS 0 OUT
GND
(FS 1 IN) **) ****)
(LRCK IN) *)
(DIN 7/8)
(DIN 5/6)
(DIN 3/4)
(DIN 1/2)
GND
GND
GND
GND
EMPHASIS OUT
FS 1 OUT
(FS 0 IN) **) ****)
(EMPHASIS IN) ***)
GND
GND
GND
GND
*) DA-88 ignores
**) IF-88 ignores
***) DA-88 ignores, except "DIGITAL IN" and "FORMAT" modes
****) DA-88 displays only warning, except "DIGITAL IN" and "FORMAT" modes
Recorder
e.g. DA-88
or compatible
TDIF-1
DIGITAL MCH OUT
1
13
14
25
