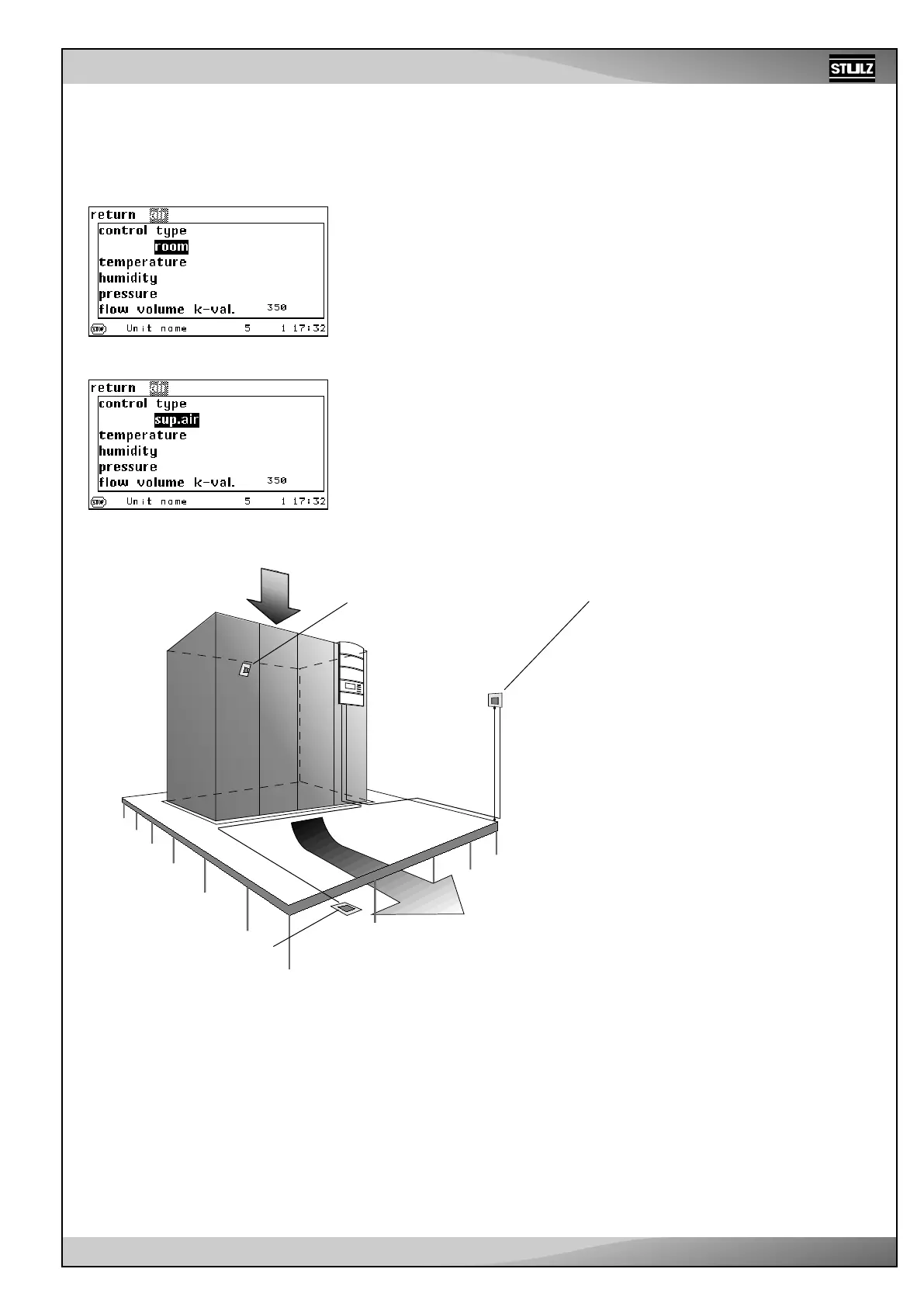

T/H sensor B01 for return air
(T/H sensor B01 is installed as
standard in the EC tower.)
Return air
Supply air
T/H sensor B03 for supply air
(The T/H sensor B03 is an
optional component of the EC
tower.
The installation of the T/H sensor B03 is described in the technical in-
struction manual of the corresponding EC tower (see chapter “1.2 Other
applicable documents” on page 4)
T/H sensor B01 for room air
The T/H sensor B01 can alternatively be
installed outside of the EC tower.
The T/H sensor B01 for room air must
be positioned depending on the spatial
conditions, heat load distribution and
selected control type.
The maximum distance from the C7000
IOC is 20 m.
Values
Air/Control type (Part 1)
Here, you select the control type. The actual values display changes depending on
the set control type (room/supply air). ➊
The following control types are available:
- Room Room air control
- Supply air Supply air control
- Room, supply-air limited Room air control with supply air limit
- Supply air, room limited Supply air control with room air limit
Room air control
Room air control is the standard control. The temperature/humidity sensor is placed in
the return air intake or in the room and the C7000 controls according to the adjusted
setpoints in the Config/Values/Air/Temperatureor Humidity menus.
Supply air control
An external T/H sensor is required for the supply air control. Like with the room air
control, it is controlled according to the adjusted setpoint values.
Height > 1.5 m
➊
To Next Page
