Stulz S-Klima C7000 - EDIO -Expansion Card for Digital Inputs and Outputs

BA C7000 for EC Tower | EN | 01-2019 | 1000755
8
/10.2018/G57
10
1 10 21 30
11 20 31 40
LDI
19
18
17
16
15
14
13
12
LDO
13
12
11
8
10
9

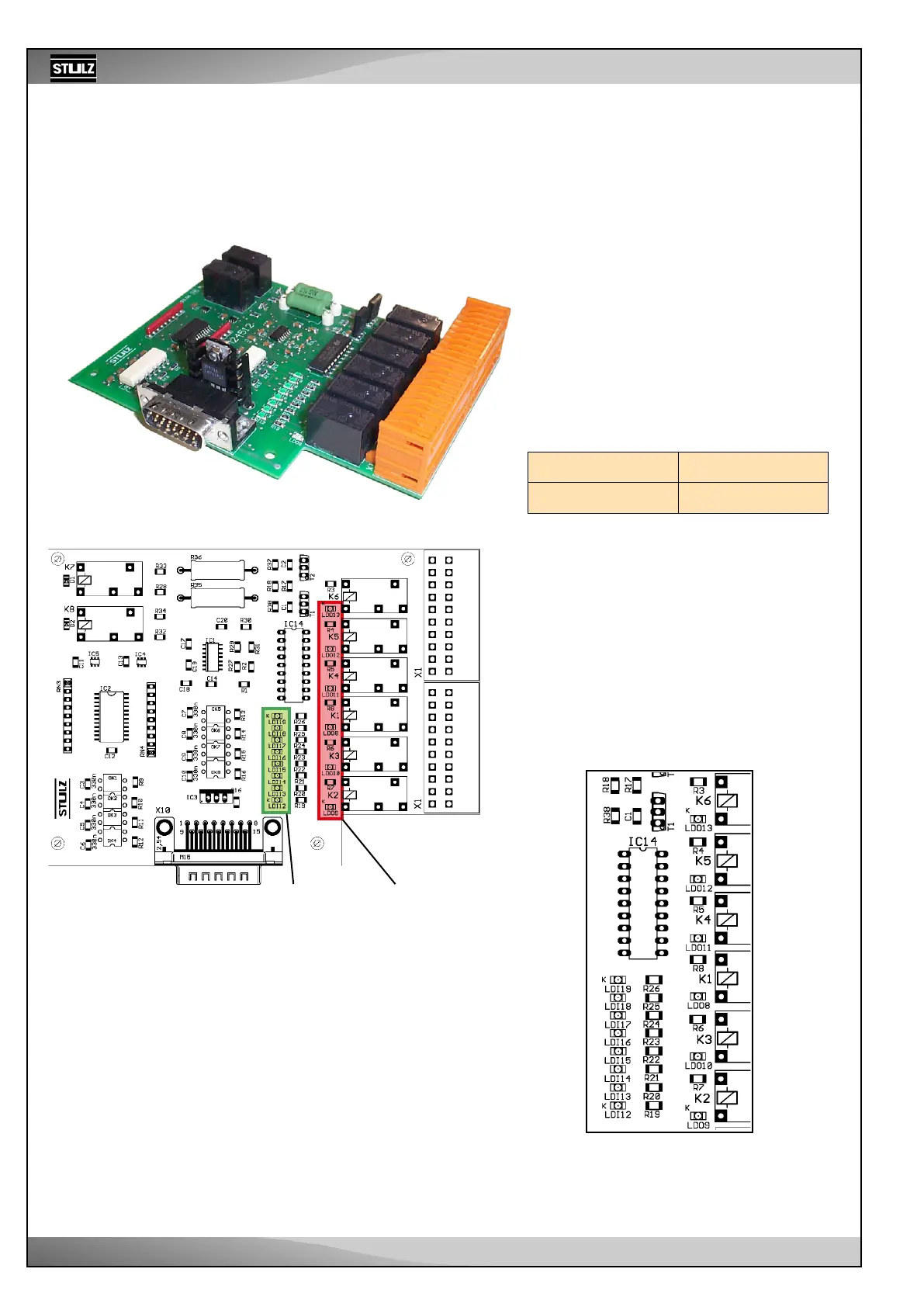

2.2 EDIO - extension board for digital in- and outputs
Pin position of X1
green LEDs for red LEDs for
digital inputs 12-19 digital outputs 8-13
of the first EDIO-board
Onboard LEDs
The function of the digital inputs is displayed by
green LEDs:
ON: voltage present
OFF: no voltage (alarm, failure)
The function of the digital outputs is displayed by
red LEDs:
ON: relay active
OFF: relay passive
enlarged section for onboard LEDs
The EDIO is an expansion board for digital inputs
and outputs. It can be plugged on the I/O controller
board at each of the 4 sockets and will be recognized
by the IOC due to a self test.
Technical Data:
Power consumption: 10,1 VA
Operating temp.: 5°C...40°C
Storage temp.: -30°C...60°C
not assigned
EN
3.2 EDIO -Expansion card for digital inputs and outputs
The EDIO expansion card is only used in the following EC towers:
• ECU/D 502 (size 3) as of version 02.
