BA C7000 for EC Tower | EN | 01-2019 | 1000755
Config
Values
Air/Control type (Part 3)

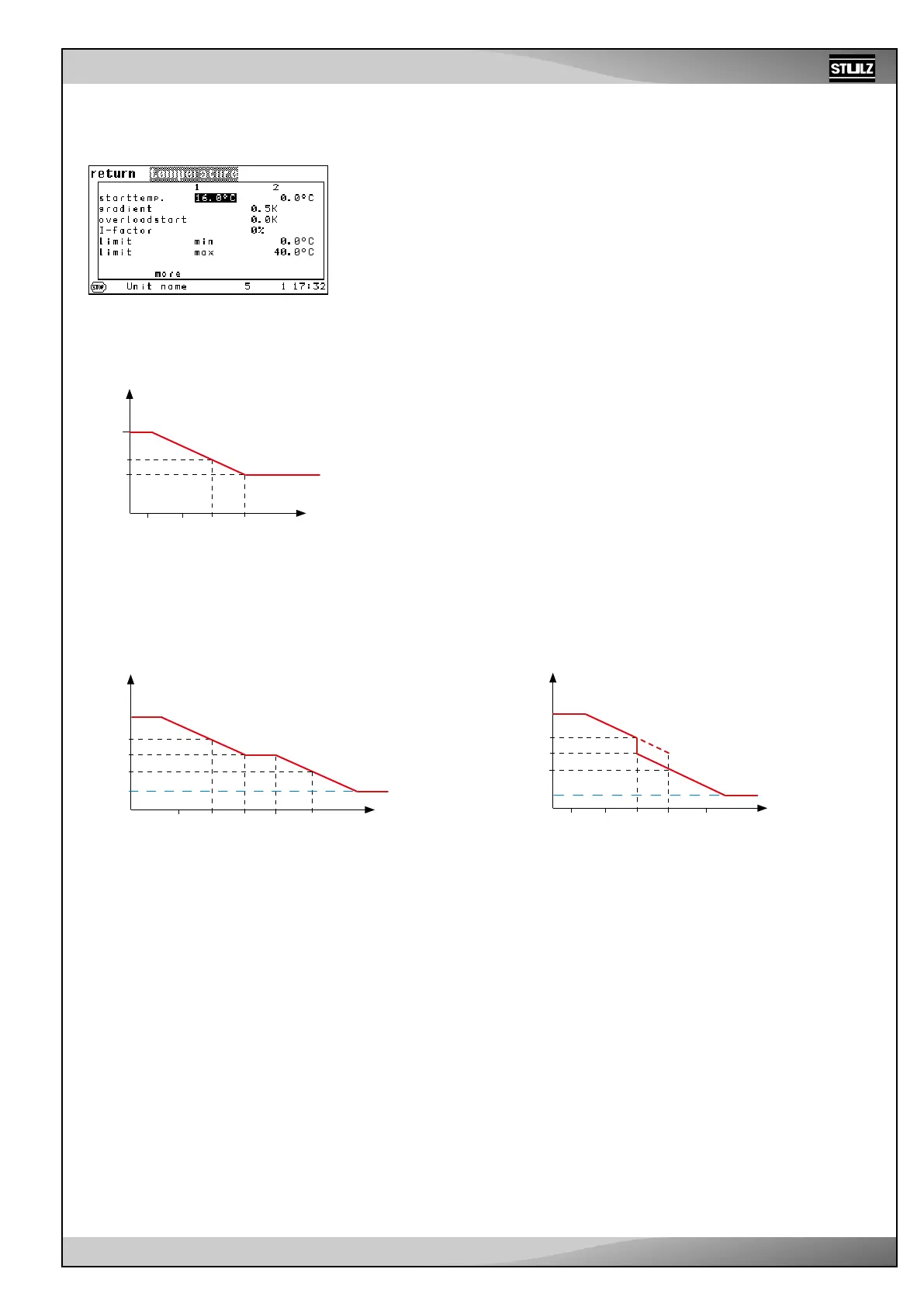

You can set temperature limit values for the room control with supply-air limit and for
the supply air control with room-air limit.
Above/below the limit value, the raised/reduced temperature setpoint stays at the limit
value.
Lower limit value (Tmin): ➎
Upper limit value (Tmax): ➏
Actual value
Supply air sensor
Setpoint
Room air
Temperature
Actual value
Room air
sensor
Setpoint
Supply air
Temperature
Actual value
Room air
sensor
Setpoint
Supply air
Temperature
Start value 1 > Start value 2
Start value 1< Start value 2
The control diagrams are changed by the adjusted temperature limit values as shown
opposite (room, supply-air limited) or below (supply air, room limited).
Supply air, room limited
Room, supply-air limited
➎
➏
