C7000 Advanced
Config
Zone

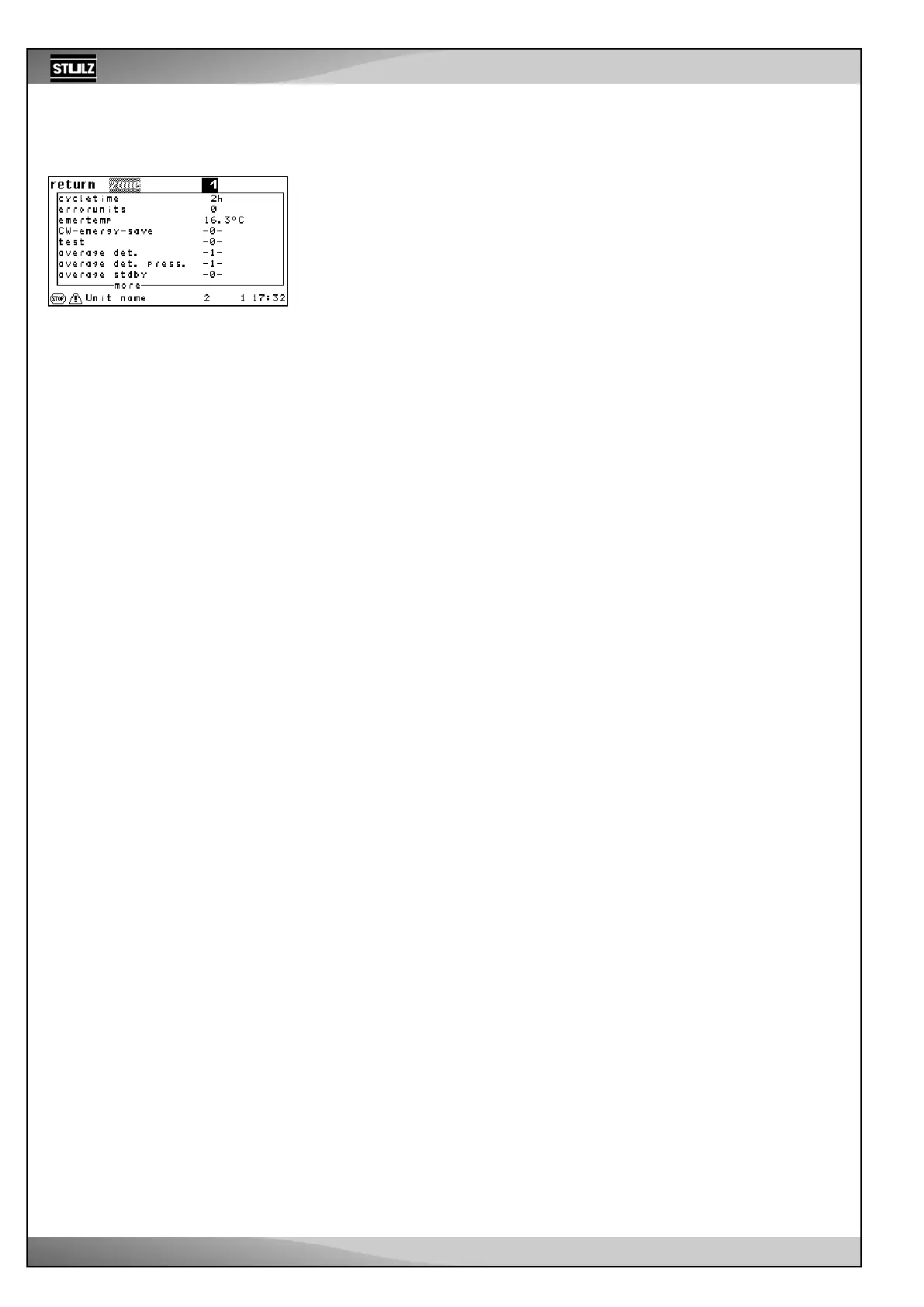

Here you can see an overview of the adjustable parameters. Zone parameters only have
to be set on one unit of the zone. Unit parameters must be set individually for each unit.
➊. Unit assignment (unit parameter)
A zone is defined in terms of the units assigned to it. A maximum of 20 zones can
be defined with settings from 1 to 20. Zone 0 means that the unit is not assigned to a
zone. Each unit is assigned to a zone separately.
➋. Sequencing time (zone parameter)
The sequencing time is used to set the time when a change-over is periodically per-
formed.
No sequencing takes place if the setting is “0”.
➌. Number of defective units (zone parameter)
This entry is optional. If the number entered here is reached, the system is switched
to backup operation. No backup operation takes place if the setting is “0”.
➍. Emergency temperature (zone parameter)
This is the temperature that is the new setpoint during the backup operation.
➎. CW standby manager (zone parameter)
The CW standby manager is switched on by setting “1”.
➏. Sequencing test (zone parameter)
The sequencing test is switched on with a fixed sequencing time of 5 minutes by setting
“1”.
➐. Average value calculation (zone parameter)
The average value calculation for all parameters* except for the differential pressure
is switched on by setting “1”.
➑. Pressure average value calculation (zone parameter)
The average value calculation for the differential pressure is switched on by setting
“1”.
➒. Average value calculation with standby units (zone parameter)
By setting “1”, sensors of units that are in standby mode are also included in the
average value calculation.
Summary of the menu items
* Room temperature
Room humidity
Supply air temperature
Supply air humidity
Outside temperature
Water inlet temperature 1
