Contacts/Auxiliary alarm

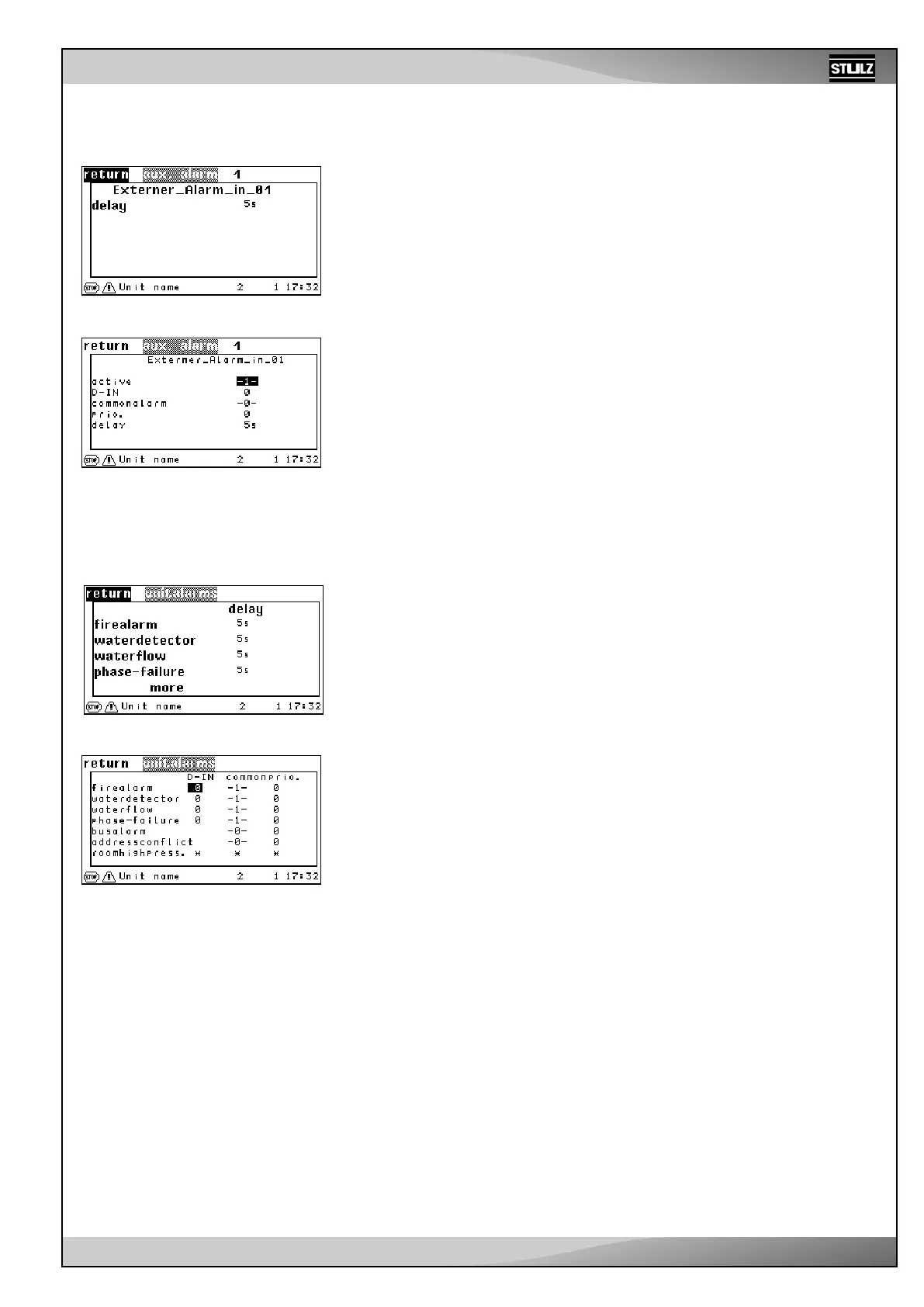

Alarm parameters:
Auxiliary alarm time delay ➍
You can enter the alarm text that should be displayed in the case of an alarm in the
first line. ➊
You add an external alarm to the configuration by setting the “ACTIVE” parameter to 1.
You deactivate the external alarm with “0”. ➋
Alarm parameters:
Digital input ➌
Common alarm actuation ➍
Alarm priority ➎
Alarm time delay ➏
Contacts/Unit alarms
You can adjust the alarm time delay for the following unit alarms: fire alarm ➎, water
alarm ➏, water flow ➐, phase error ➑ and bus alarm ➒.
In this window, you can assign digital inputs (➊-➍)a to the unit alarms, determine whether
the corresponding alarm should trigger a common alarm (➊-➏)b and assign the alarm
to an alarm relay (➊-➏)c.
1. Fire ➊, via external smoke and temperature sensor
2. Water ➋ via external water detector
3. Flow failure ➌ via flow sensor
4. Phase failure ➍ via phase module
5. Bus alarm ➎,
6. Address conflict ➏, these alarms are determined by the controlled and
do not need a sensor or a digital input.
Config
Operate
Config
Operate
➊
➋
➌
➍
➎
➏
➍
➎
➏
➐
➑
➒
➊
➋
➌
➍
➎
➏
