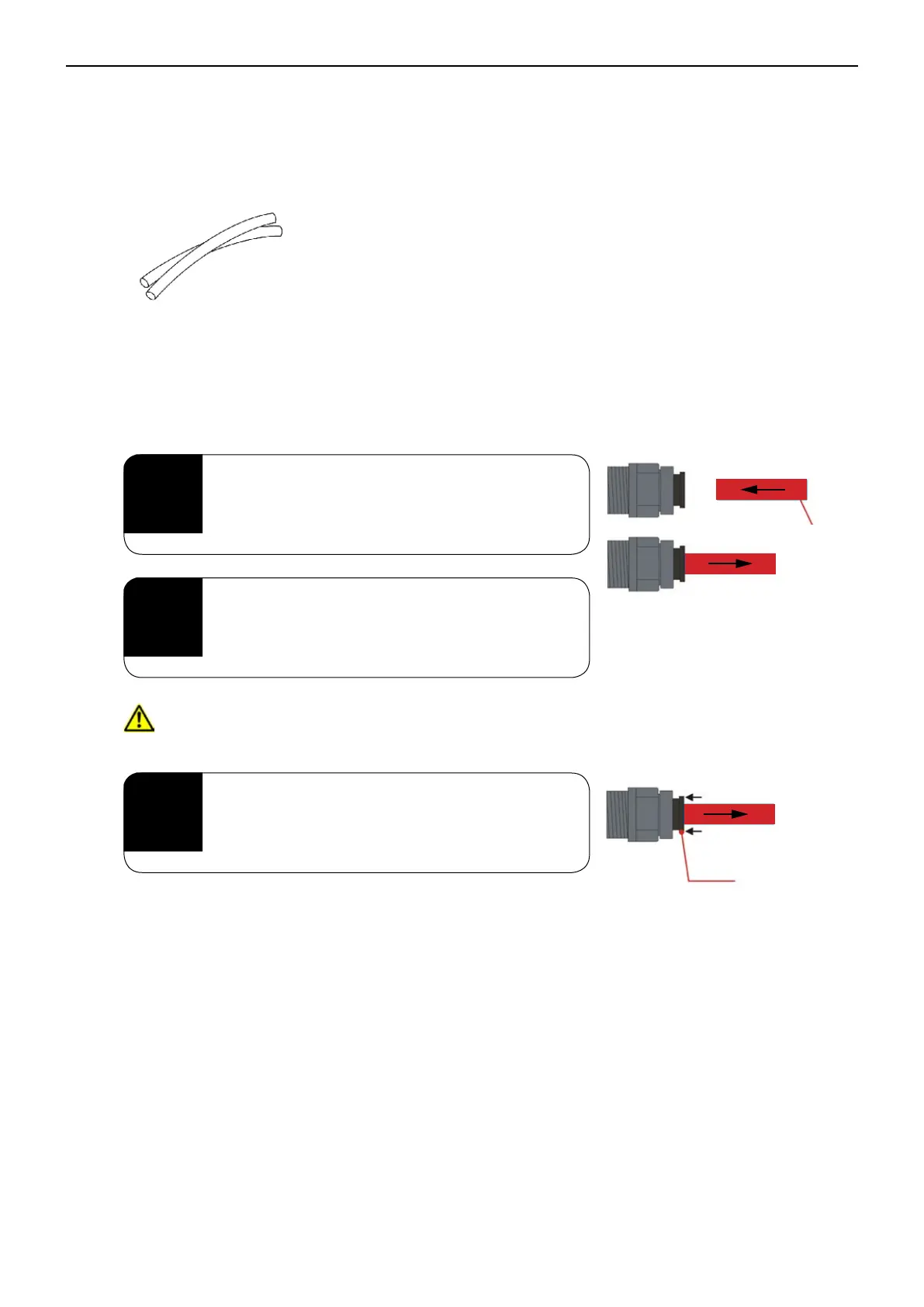

7.2.2. Connecting the waste water (B)
To connect the supplied pressure hoses, cut the ends of the hoses straight using a sharp pipe cutter.
The supplied waste water connection has the following components:
1
Connect the hose (red) on the left of the ow re-
strictor.
The hose is available as an accessory (1220949).
2
Route the hose into the sewage system and secure
so that it cannot spring off or out.
Proceed as follows to connect the waste water connection:
Look for a suitable point in the waste water/sewage pipe, and install the waste water connection there.
• Connecting hose 6 mm (red)
3
To disassemble, squeeze the clamping sleeve and
pull off the hose.
To prevent membrane damage, never seal the
waste water hose!
Hose
Clamping sleeve
