POSSIBLE ERROR INDICATORS

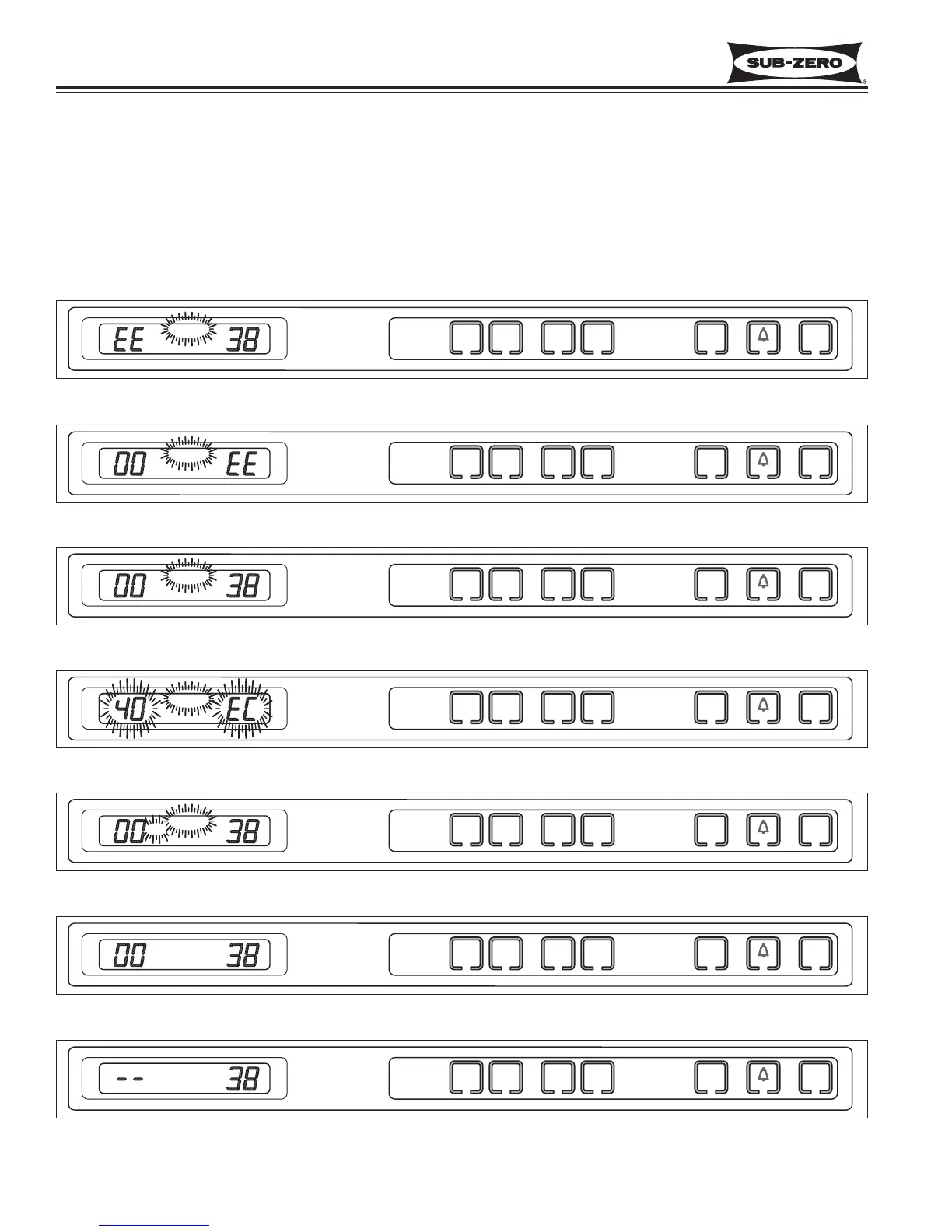

These pages contain diagrams illustrating what a customer may see on the LCD if there is a problem with the unit.
NOTE: To clear indicators and error codes, problem must be corrected then press Bell ON/OFF key for 15 seconds.
NOTE: For thermistor errors described below, thermistor can be tested by submersing it in a glass of ice water for 2
to 5 minutes, then check for 30,000 to 33,000 ohms.
• For Models 700TC/I-3 and 736TC/I-3, See Figures 3-30 through 3-36
• For Model 700TR-3 and 736TR-3, See Figures 3-37 through 3-42
• For Model 700TF/I-3, See Figures 3-43 through 3-47
Figure 3-34. 700TC/I-3 & 736TC/I-3
“ICE” & “SERVICE” Flashing = Valve Solenoid energized > fifteen (15) Seconds, Icemaker System Disabled
Figure 3-30. 700TC/I-3 & 736TC/I-3
“EE” at Left and “SERVICE” Flashing = Freezer Compartment Thermistor (or its Wiring) Fault
Figure 3-31. 700TC/I-3 & 736TC/I-3
“SERVICE” Flashing and “EE” at right = Refrig. Compartment Thermistor (or its wiring) Fault
Figure 3-32. 700TC/I-3 & 736TC/I-3
“SERVICE” Alone Flashing = Refrig. Evap. Thermistor (or its Wiring) Fault
Figure 3-33. 700TC/I-3 & 736TC/I-3
“40”, or “50” and “SERVICE” and “EC” Flashing = Excessive Compressor Run
Figure 3-35. 700TC/I-3 & 736TC/I-3
“SERVICE” Steady, not Flashing = Error Codes Observed in Diagnostic Mode, but not Cleared
