A .10" (3) space is required between the backer panel
and the custom panel to allow the panel to slide into the
door frame. Refer to the illustration below for critical
dimensions.
Install handle hardware before inserting the panel. Large
D-style handles are recommended rather than knobs.
Screw heads must be countersunk into the panel.
Slide the panel into the frame.
To reinstall the door trim molding, insert the top of the trim
into grooves at the top of the door and work downward,
snapping the trim into clips on the door frame. For the
drawer, start at one end and move towards the opposite
end, snapping the trim into the clips.
Panel Installation
DOOR PANELS

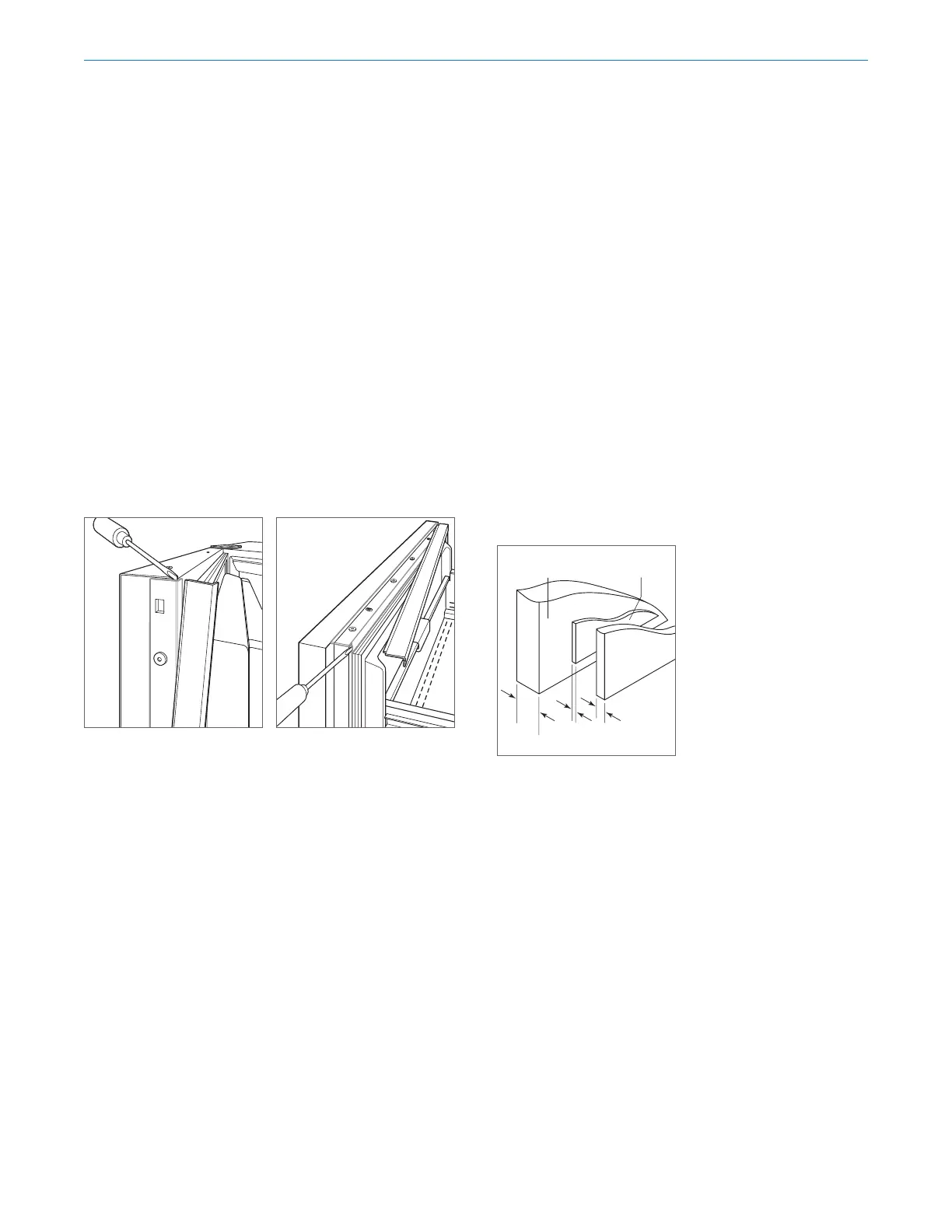

To install custom door panels, remove the handle side trim
molding. Insert a screwdriver tip into the top corner slot
on the handle side and pop out the trim. For the drawer,
insert a screwdriver tip into the slot on either side of the
trim running along the top of the drawer and pop out the
trim. Remove the screws and frame. Refer to the illustra-
tions below.
The door has a ⁄"
(6) frame for the custom panel to slide
into. If the panel is thicker than ⁄"
(6), rout an edge around
the panel or mount the panel on a sheet of ⁄"
(6) thick
material, then insert into the frame.
Door side trim Drawer top trim
Panel Installation
1
/4" (6)
.10" (3)
CUSTOM
PANEL
SPACER
PANEL
BACKER
PANEL
3
/4"
(19)
TYPICAL
Panel assembly (rear view)
