Sub-Zero Classic Series - Opening Dimensions; STANDARD INSTALLATION

4 | Sub-Zero Customer Care 800.222.7820
Site Preparation
3
/4" (19)
TYPICAL
FRAMED
CABINETRY
W
FILLER
3
1
/2" (89)
FINISHED
RETURN
FRAMELESS
CABINETRY
W
3
/4" (19)
TYPICAL
3
1
/2" (89)
FINISHED
RETURN
NOTE: 3
1
/2" (89) finished returns will be visible and should be finished to match cabinetry.
Shaded line represents profile of unit.
83
3
/4"
(2127)
OPENING
HEIGHT
24" (610)
OPENING
DEPTH

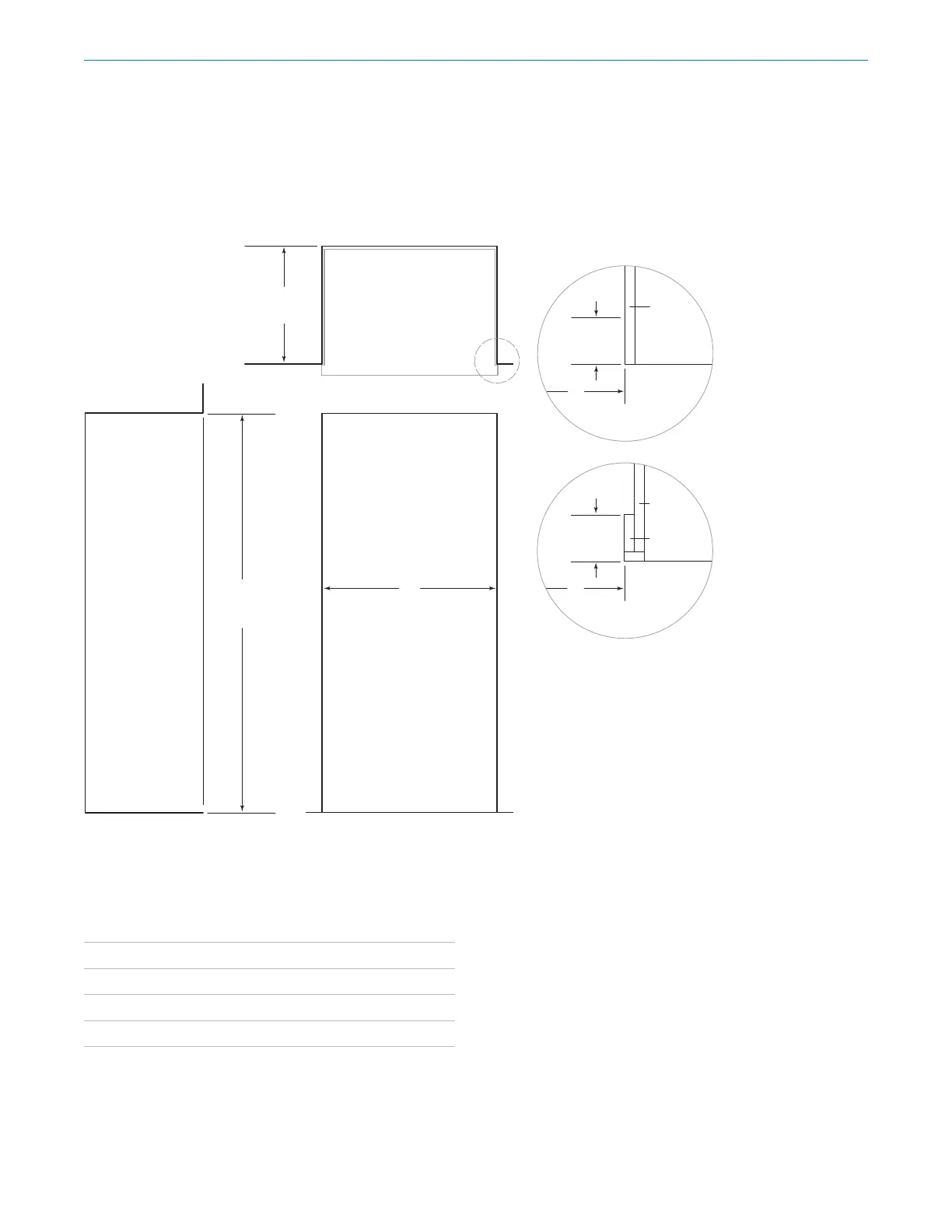

FRONT VIEW
SIDE VIE
W
TOP VIEW
W
OPENING WIDTH
If two units are installed side by side, refer to page 6.
OPENING WIDTH W
30" Model 29⁄" (749)
36" Model 35⁄" (902)
42" Model 41⁄" (1054)
48" Model 47⁄" (1206)
Opening Dimensions
STANDARD INSTALLATION
