subzero.com | 17
Completion

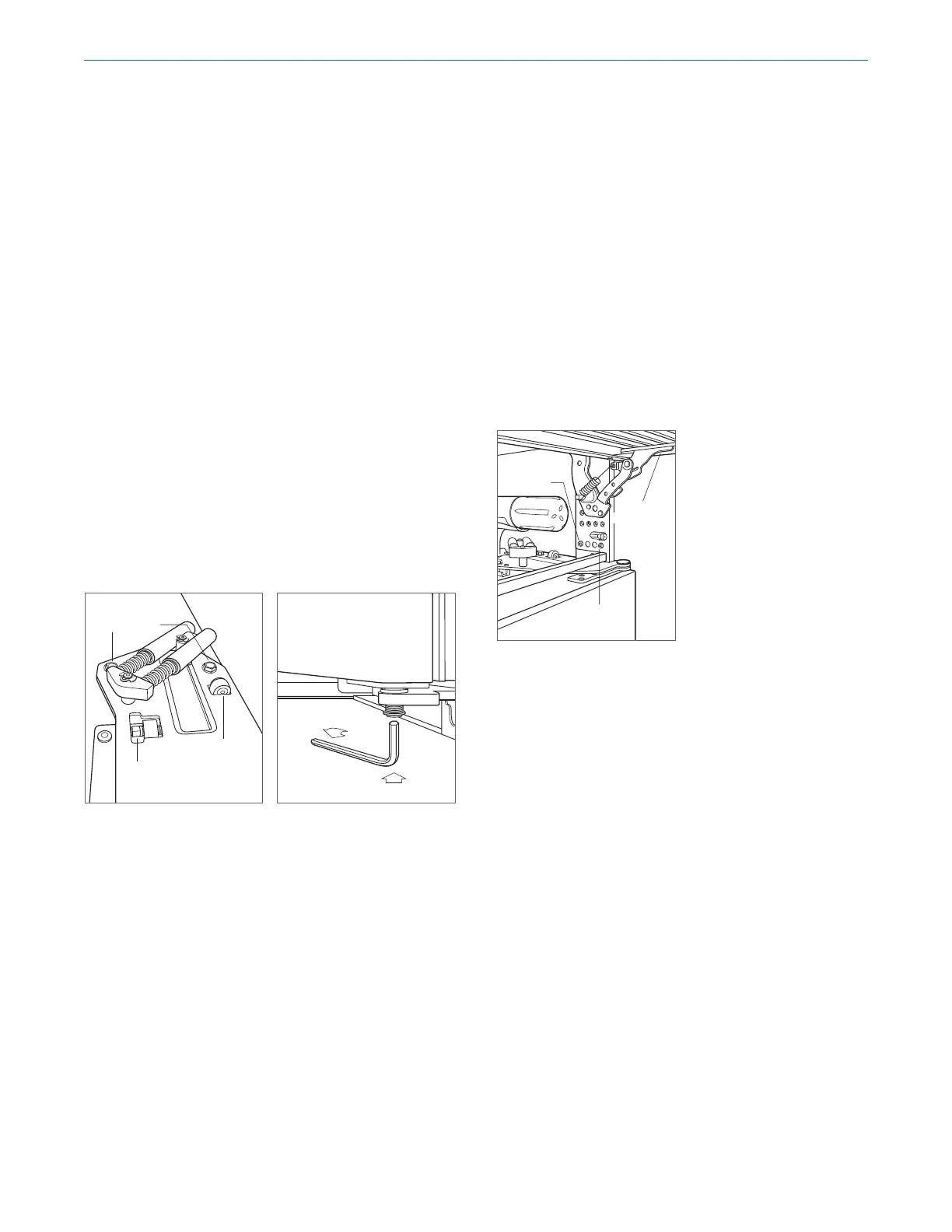

GRILLE INSTALLATION
Install the grille assembly and check for proper fit. The
grille is designed to rest on the upper door hinge(s) to min-
imize the reveal between the top of the door and bottom
of the grille. To eliminate interference, the grille height can
be adjusted. Loosen the four grille adjustment screws (two
on each side) and adjust the grille height as needed. Refer
to the illustration below.
Installation
Grille height adjustment
BACK GRILLE
SCREW
FRONT
GRILLE SCREW
GRILLE
ADJUSTMENT
SCREWS
Alignment
DOOR ADJUSTMENT
To make all other adjustments, loosen the two upper hinge
bolts using a ⁄" wrench. Refer to the illustration below.
In-and-Out Adjustment: For left-hinge doors, use a ⁄"
allen wrench to turn the adjustment bolt clockwise to
adjust the handle side inward, and counterclockwise to
adjust outward. Reverse directions for a right-hinge door.
Side-to-Side Tilt Adjustment: For left-hinge doors, use a
⁄" wrench to turn the adjustment bolt clockwise to adjust
the handle side upward, and counterclockwise to adjust
downward. Reverse directions for a right-hinge door.
Up-and-Down Adjustment: For left-hinge doors, use a ⁄"
allen wrench to turn the adjustment bolt clockwise to raise
the door and counterclockwise to lower. Reverse directions
for a right-hinge door. Refer to the illustration below.
UPPER
HINGE BOLTS
SIDE-TO-SIDE
TILT ADJUSTMENT
IN-AND-OUT
ADJUSTMENT
Door adjustment bolts
Up-and-down door adjustment
