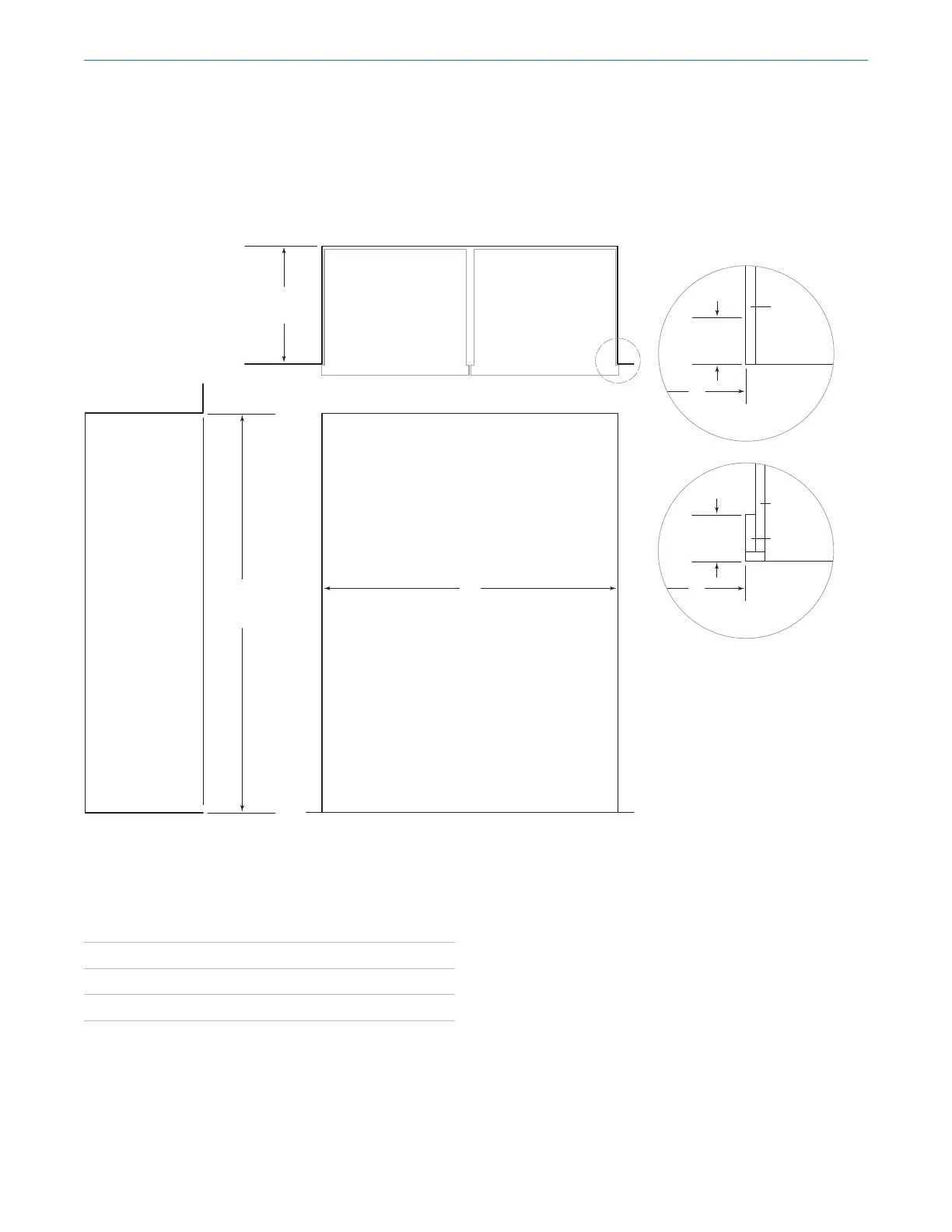

Sub-Zero Classic Series - Opening Dimensions; DUAL STANDARD INSTALLATION

6 | Sub-Zero Customer Care 800.222.7820
NOTE: 3
1
/2" (89) finished returns will be visible and should be finished to match cabinetry.
Shaded line represents profile of unit.
83
3
/4"
(2127)
OPENING
HEIGHT
24" (610)
OPENING
DEPTH
FRONT VIEW
SIDE VIE
W
TOP VIEW
W
OPENING WIDTH
3
/4" (19)
TYPICAL
FRAMED
CABINETRY
W
FILLER
3
1
/2" (89)
FINISHED
RETURN
FRAMELESS
CABINETRY
W
3
/4" (19)
TYPICAL
3
1
/2" (89)
FINISHED
RETURN
A dual installation kit is required for this installation.
DUAL OPENING WIDTH W
Two 30" Models 59⁄" (1518)
30" and 36" Models 65⁄" (1670)
Two 36" Models 71⁄" (1822)
Site Preparation
Opening Dimensions
DUAL STANDARD INSTALLATION
