Legacy U.S.A. (66L) A2260BE–B
11
Maintenance and service
11-49
– CONTINUED –

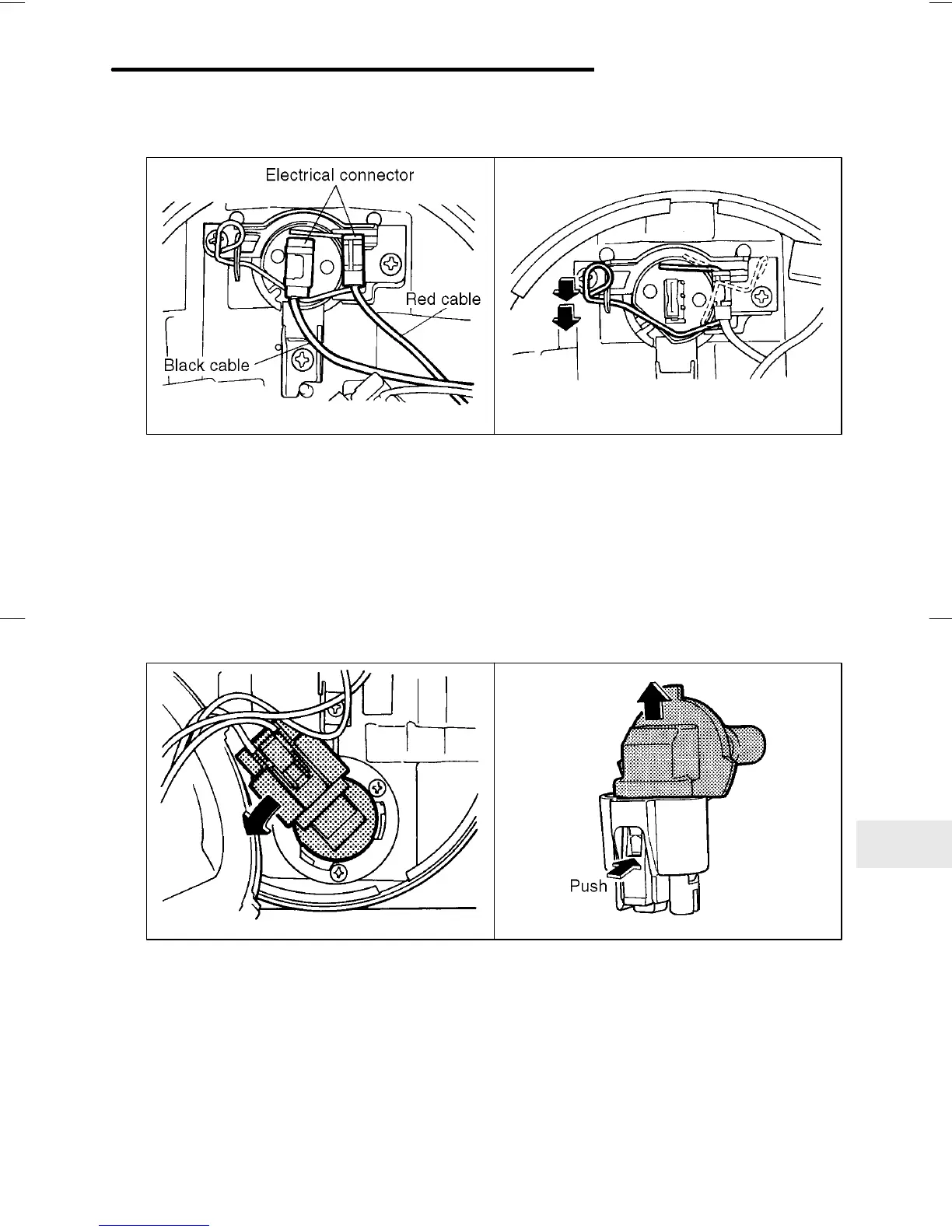

n Low beam light bulbs
HBB042BAHBB041BB
1. Disconnect the electrical connector for the black cable.
2. Remove the retainer spring.
3. Replace the bulb, then set the retainer spring securely.
4. Reconnect the electrical connector for black cable.
5. Install the headlight bulb cover.
n High beam light bulbs
HBB044BBHBB043BA
1. Disconnect the electrical connector from the bulb.
2. Remove the bulb from the headlight assembly by turning it coun-
terclockwise.
3. Replace the bulb with new one.
4. Reconnect the electrical connector. At this time, use care not to
touch the bulb surface.
To Next Page
