Subaru 2000 Legacy - Fuse Panel Located in the Engine Compartment

Legacy U.S.A. (66L) A2260BE–B
12-8

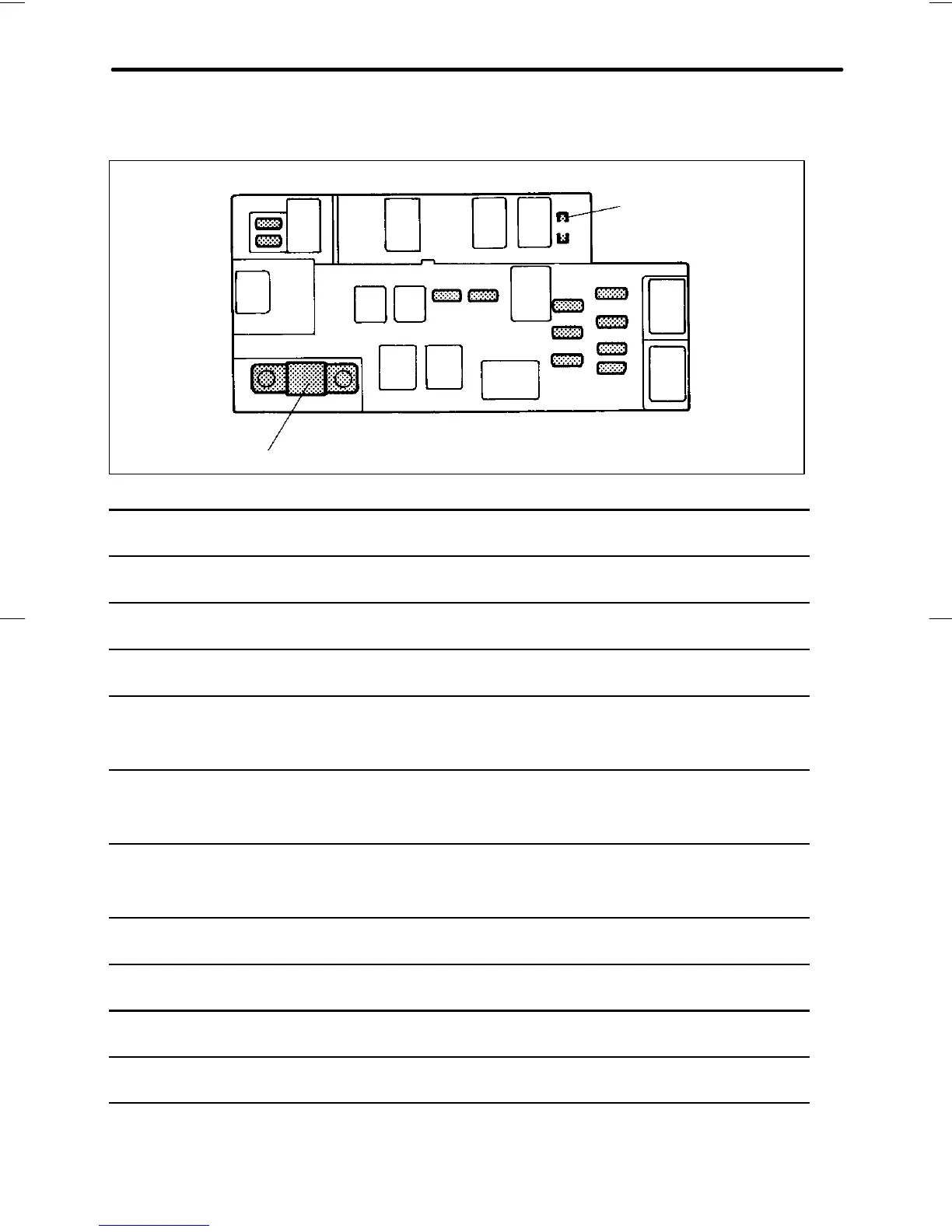

J Fuse panel located in the engine compartment
HS0225
Main fuse
FWDsocket
L
D
F
H
S
G
J
K
Z
X
C
Fuse panel Fuse rating Circuit
21 20A D Radiator cooling fan (Main)
22 20A D Radiator cooling fan (Sub)
23 20A D Rear window defogger
24 15A D Hazard warning flasher
D Horn
25 15A D Meter
D SRS airbag system warning light
26 10A D Automatic transmission control unit
D ABS UNIT
27 10A D Alternator
28 15A D Headlight (right side)
29 15A D Headlight (left side)
30 20A D Lighting switch
