Legacy U.S.A. (66L) A2260BE–B
1-28
B System monitors
HB4010EC
A diagnostic system continually monitors the readiness of the seatbelt
pretensioner while the vehicle is being driven. The seatbelt preten-
sioners share the control module with the airbag system. Therefore, if
any malfunction occurs in a seatbelt pretensioner, the SRS airbag sys-

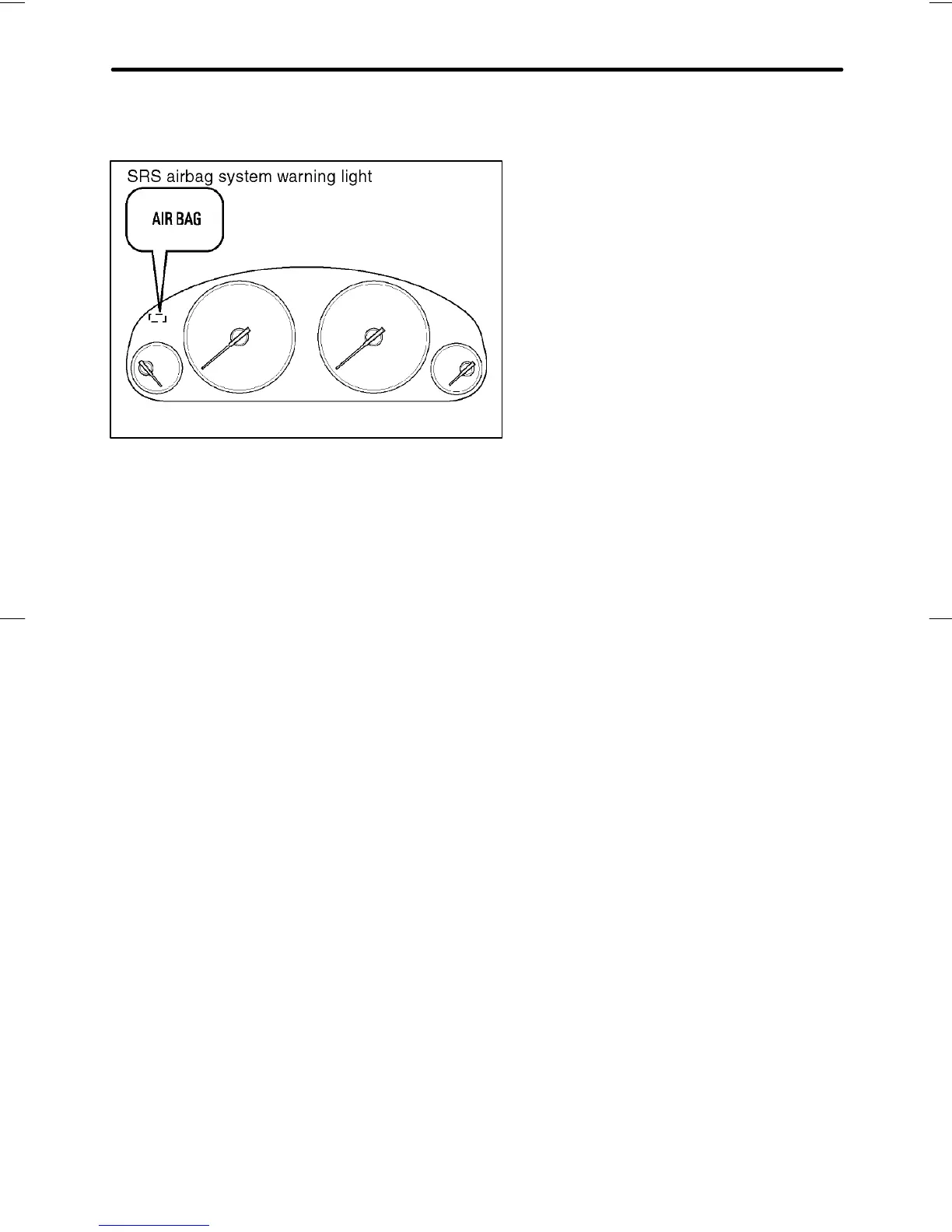

tem warning light will illuminate. The SRS airbag system warning light
will show normal system operation by lighting for about 6 seconds
when the ignition key is turned to the “ON” position.
The following components are monitored by the indicator:
D Front sub sensor (Right hand side)
D Front sub sensor (Left hand side)
D Airbag control module (including impact sensors)
D Seatbelt pretensioner (Driver’s side)
D Seatbelt pretensioner (Passenger’s side)
D All related wiring
In the event of a malfunction indicated by any of following, the vehicle
should be taken promptly to your nearest SUBARU dealer to have the
system checked. Unless checked and repaired, the seatbelt preten-
sioners and airbags will not function reliably:
D Flashing or flickering of the indicator light.
D No illumination of the warning light when the ignition switch is
first turned to the “ON” position.
D Continuous illumination of the warning light.
D Illumination of the warning light while driving.
