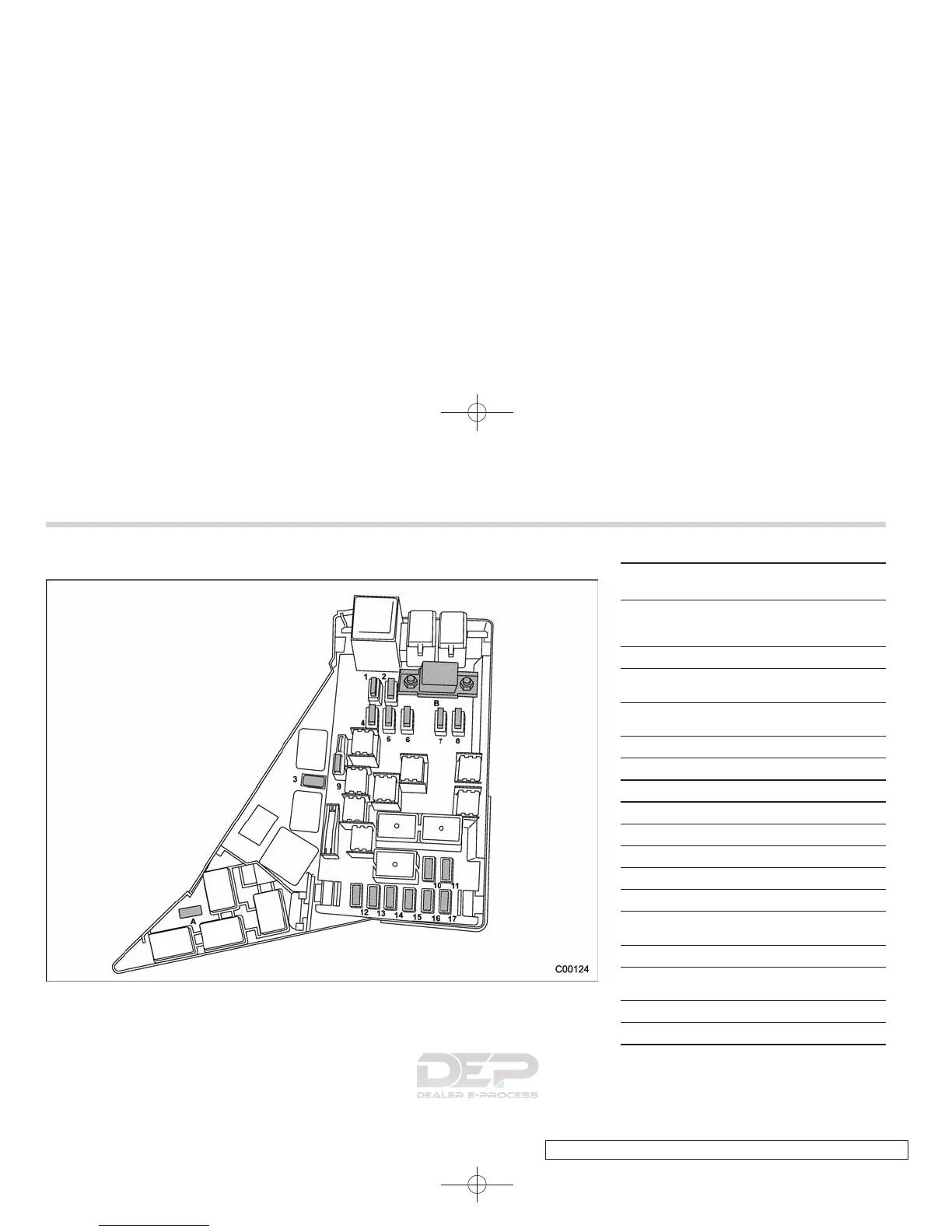

& Fuse panel located in the engine compartment
A) FWD socket (AT models – except Turbo models and 3.0-liter models)
B) Main fuse
Fuse
panel
Fuse
rating
Circuit
1 30A
. ABS unit
. Vehicle dynamics control
unit
2 25A
. Main fan (3.0-liter models)
3 10A
. Secondary air combina-
tion valve (Turbo models)
4 25A
. Sub fan (Except 3.0-liter
models)
5
25A
. Main fan
6
20A
. Audio
7
15A
. Headlight (right side)
8 15A
. Headlight (left side)
9 20A
. Back-up light
10 15A
. Horn
11 25A
. Rear window defogger
12 15A
. Fuel pump
13 15A
. Automatic transmission
control unit
14 7.5A
. Engine control unit
15 15A
. Turn and hazard warning
flasher
16 20A
. Parking switch
17 7.5A
. Alternator
