11.2 Battery Installation

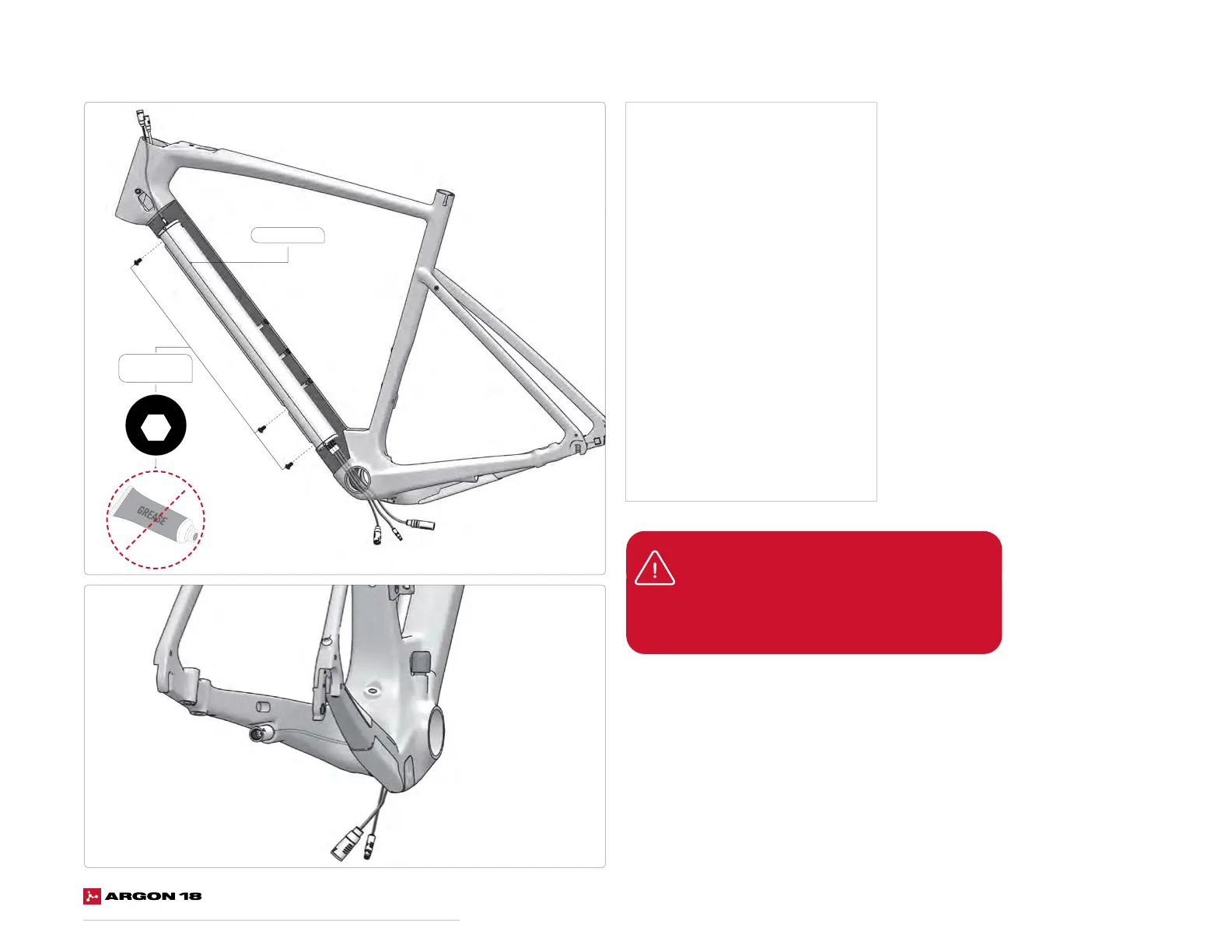

1. Insert the battery (SKU: 81218)
through the hole under the
bottom bracket.
The three threaded mounting holes
on the battery must face down.
The side with the two connectors
(iWok button connector and light
connector) must be inserted first.
2. Guide the two connectors
(iWok button connector and light
connector) through the top of
the head tube.
3. Install the 3 M5 x 10mm battery
screws (SKU: 81250). Once the 3
screws are installed, tighten to
5Nm. Do not apply grease
to the thread.
4. Guide the motor connector into
the NDS chainstay and through
the exit hole.
81250
M5 x 10mm
81218
4
4Nm
4
3Nm
3Nm
2
2Nm
3
3Nm
5
9.5Nm
4
5Nm
2
HT
8
12Nm
8
35Nm
2.5
2Nm
2
0.5-1Nm
40Nm
4Nm
T25
T25
IMPORTANT:
Use only M5 x 10mm screws. Using longer
screws will damage the battery and void the
warranty.
