SUBITO 314A / 314B: ASSEMBLY GUIDE
11.3 Charging Port Installation

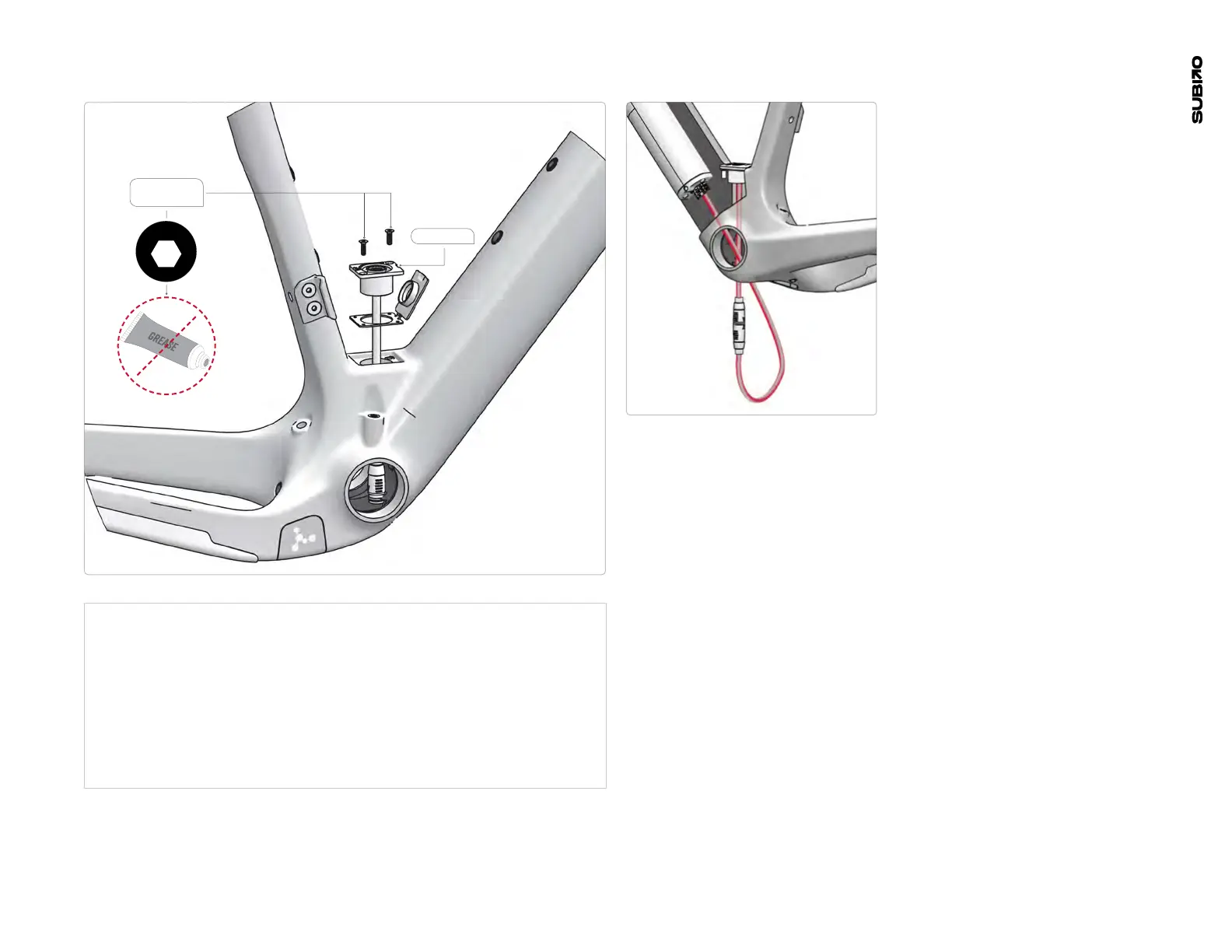

1. Install the charging port with the arrow pointing the rear of the bike,
that way the cover will open facing the down tube.
2. Allow the charging port connector to exit through the BB hole.
3. Install and tighten both M3 x 10mm screw (SKU: 81252) only by hand,
do not apply grease on the thread.
4. Connect the charging port connector to the matching connector on the battery.
Align both arrows on each connector.
