SUBITO 314A / 314B: ASSEMBLY GUIDE

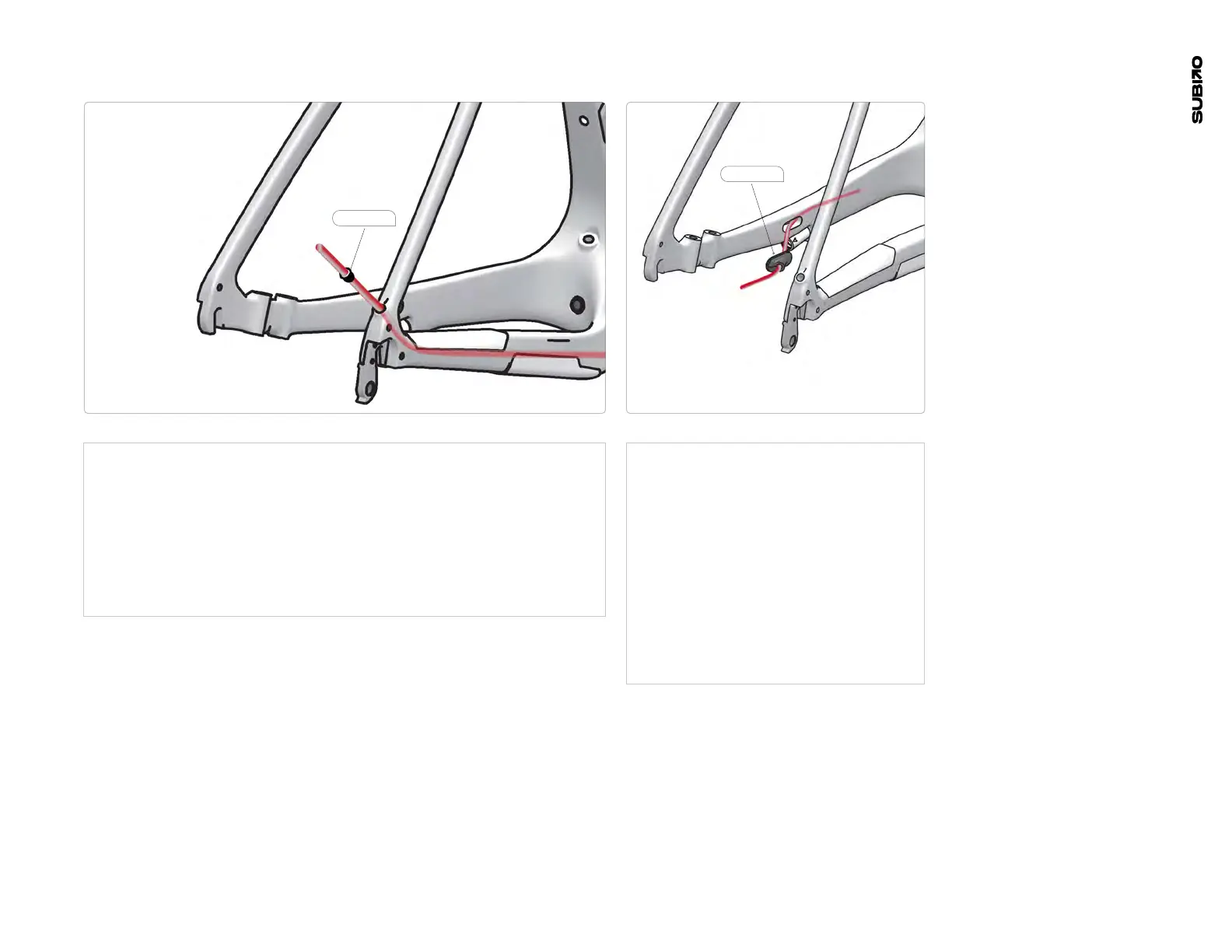

13.2 Cable and housing routing – Mechanical 1X shifting
Rear Derailleur:
1. Insert housing from rear hole on the seat stay.
2. Guide the housing over the battery through the BB hole.
3. Exit the housing through the side guide hole.
4. Insert the mechanical grommet (SKU: 80985) into the seat stay hole.
Rear Brake:
1. Insert housing from rear hole on
the chainstay.
2. Guide the housing over the battery
through the BB hole.
3. Exit the housing through the side
guide hole.
4. Insert the rear brake oblong cable guide
(SKU: 80551) into the chainstay hole.
80551
80985
