SUBITO 314A / 314B: ASSEMBLY GUIDE
14.2 Cable and housing routing – Electronic wire routing

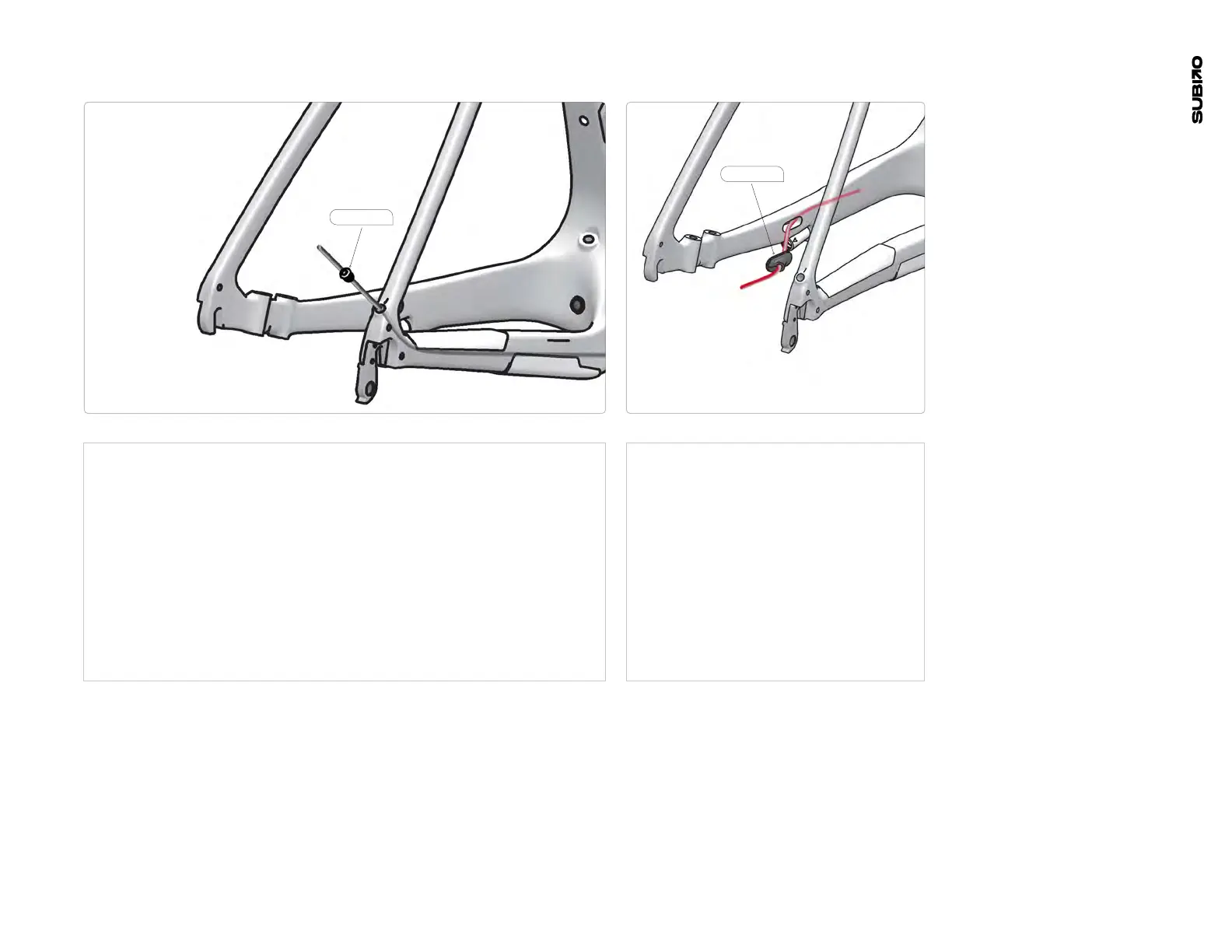

Rear Derailleur:
1. Insert the Di2 rear derailleur cable from rear hole on the seat stay until it exits
from the BB hole.
2. Insert the Di2 junction A cable from side guide hole until it exits
from the BB hole.
3. Insert Di2 battery cable from seat tube until it exits from the BB hole.
4. Plug the three cable to the junction box.
5. Insert the Di2 grommet (SKU: 80805) into the seat stay hole.
Rear Brake:
1. Insert housing from rear hole on
the chainstay.
2. Guide the housing over the battery
through the BB hole.
3. Exit the housing through the side
guide hole.
4. Insert the rear brake oblong cable guide
(SKU: 80551) into the chainstay hole.
80551
80805
