36
SUBITO 314A / 314B: ASSEMBLY GUIDE

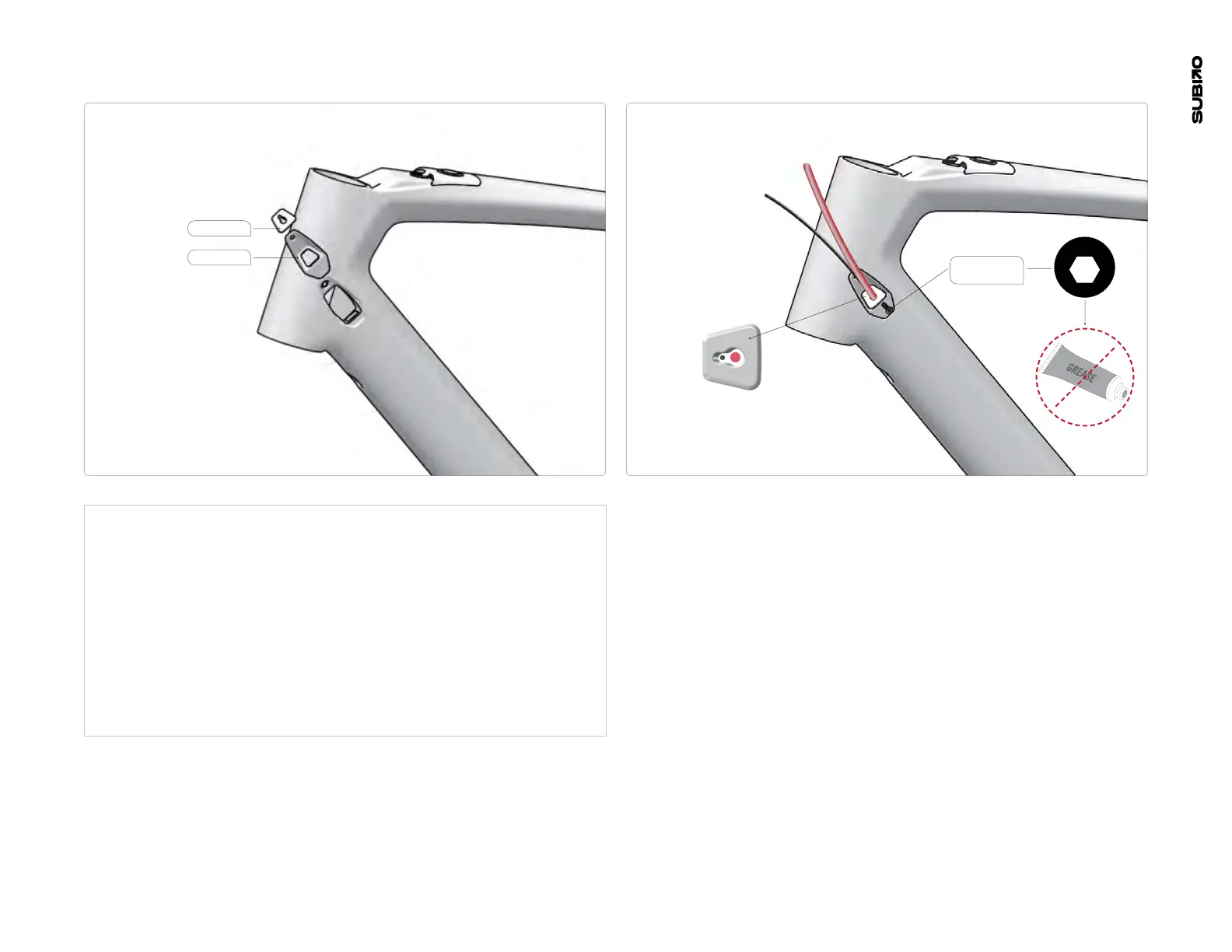

14.4 Cable and housing routing – Electronic wire routing
81247
81244
81252
M3 x 10mm
Parts Needed for Installation:
• Head Tube Side Guide (SKU: 81244)
• Side Grommet Di2 (SKU: 81247)
• Flat Head Cap Screw M3 x 10mm (SKU: 81252)
1. Install the grommet in the side guide.
2. Route the cable through the assembly. Start by inserting the Di2 cable,
then insert the brake housing.
3. Screw the side guide onto the frame, hand tighten the screw without grease.
4
4Nm
4
3Nm
3Nm
2
2Nm
3
3Nm
5
9.5Nm
4
5Nm
2
HT
8
12Nm
8
35Nm
2.5
2Nm
2
0.5-1Nm
40Nm
4Nm
T25
T25
