SUBITO 314A / 314B: ASSEMBLY GUIDE

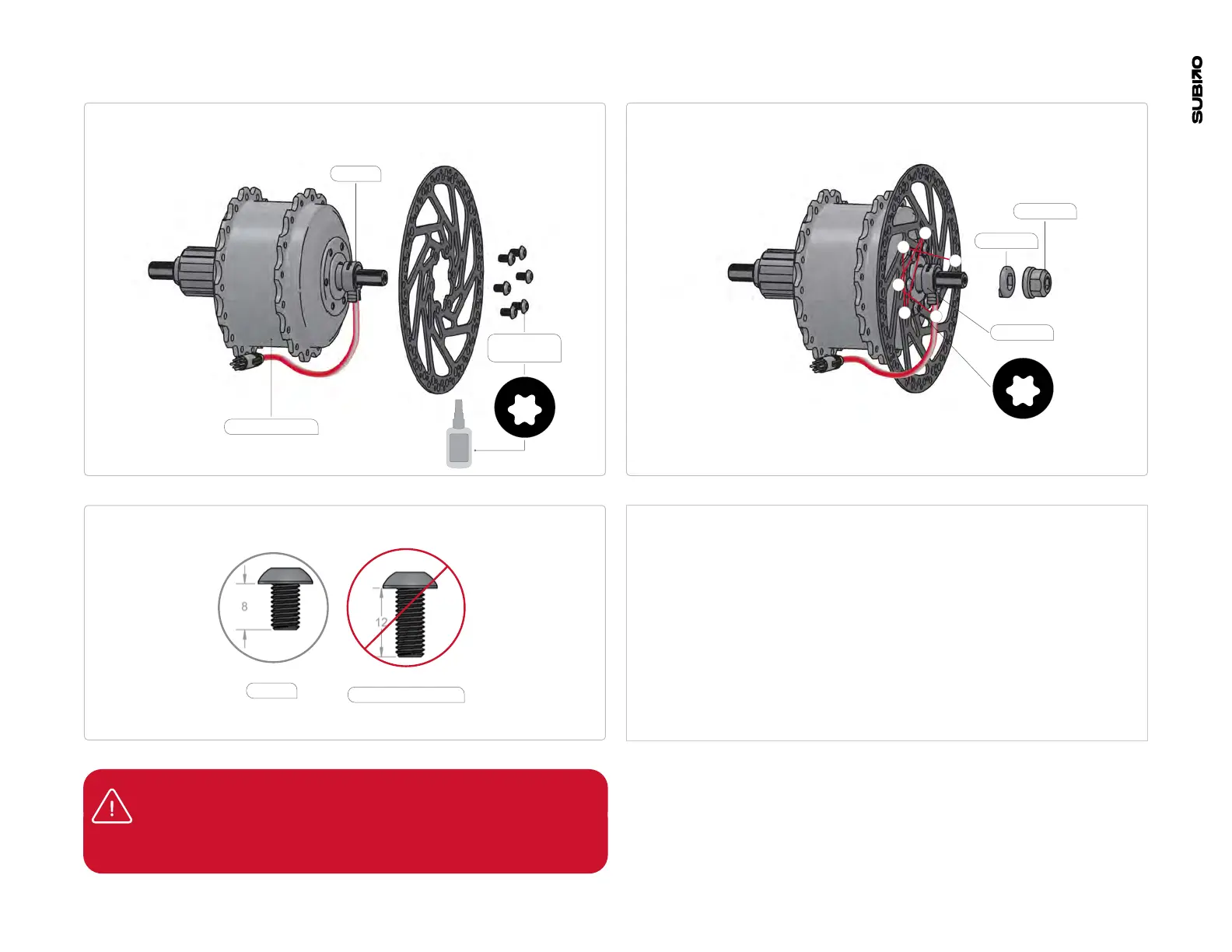

17.1 Rear Wheel Installation (Disc Installation)
1. Use the M5 x 8mm torx screw (SKU: 81255) supplied with the frameset.
A longer screw will damage the motor.
2. Apply loctite before installing the bolt.
3. Once the bolts are hand tightened, turn the rotor clockwise to assure a good
contact between the rotor and the bolt.
4. Tighten to 4Nm in a star pattern.
5. Install the cable shield (SKU: 81230).
6. Install the torque washer nut (SKU: 81229), aligning the shoulder with
the cable.
7. Install the motor lock nut (SKU: 81228).
Rear Wheel
81255
M5 x 8mm
81229
81228
81230
Supplied with disc
81255
81230
4
4Nm
4
3Nm
3Nm
2
2Nm
3
3Nm
5
9.5Nm
4
5Nm
2
HT
8
12Nm
8
35Nm
2.5
2Nm
2
0.5-1Nm
40Nm
4Nm
T25
T25
4
4Nm
4
3Nm
3Nm
2
2Nm
3
3Nm
5
9.5Nm
4
5Nm
2
HT
8
12Nm
8
35Nm
2.5
2Nm
2
0.5-1Nm
40Nm
4Nm
T25
T25
IMPORTANT:
Use only M5 x 8mm screws. Using longer screws will lock the motor
and void the warranty.
4
1
2
5
3
6
