Subsite 910R - 950 T Transmitter; Overview

910R/950R/950T/970T - 950T TRANSMITTER 21
OVERVIEW
910R/950R/950T/970T - 950T TRANSMITTER 21
OVERVIEW
950T TRANSMITTER
OVERVIEW
The 950T transmitter is designed to place signals on target lines.
It can be configured to send 512 Hz, 1 kHz, 8 kHz, 29 kHz, 80
kHz, and dual (8 kHz and 29 kHz) frequencies. It places a signal
on the line through either direct connection, induction clamping,
or broadcast modes.

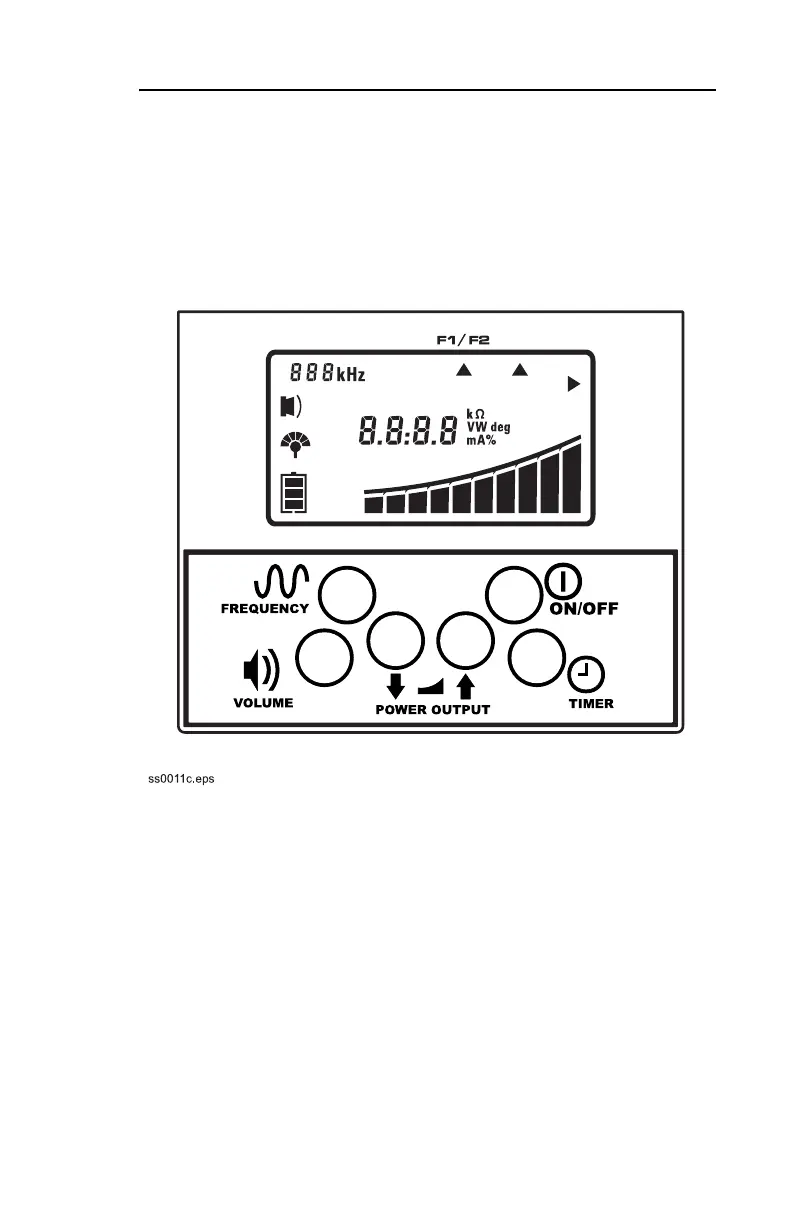

The transmitter has six keypad buttons and a display.
Descriptions of the buttons and display follow.
950T TRANSMITTER
OVERVIEW
The 950T transmitter is designed to place signals on target lines.
It can be configured to send 512 Hz, 1 kHz, 8 kHz, 29 kHz, 80
kHz, and dual (8 kHz and 29 kHz) frequencies. It places a signal
on the line through either direct connection, induction clamping,
or broadcast modes.
The transmitter has six keypad buttons and a display.
Descriptions of the buttons and display follow.
