24 910R/950R/950T/970T - 950T TRANSMITTER
DISPLAY
24 910R/950R/950T/970T - 950T TRANSMITTER
DISPLAY
DISPLAY

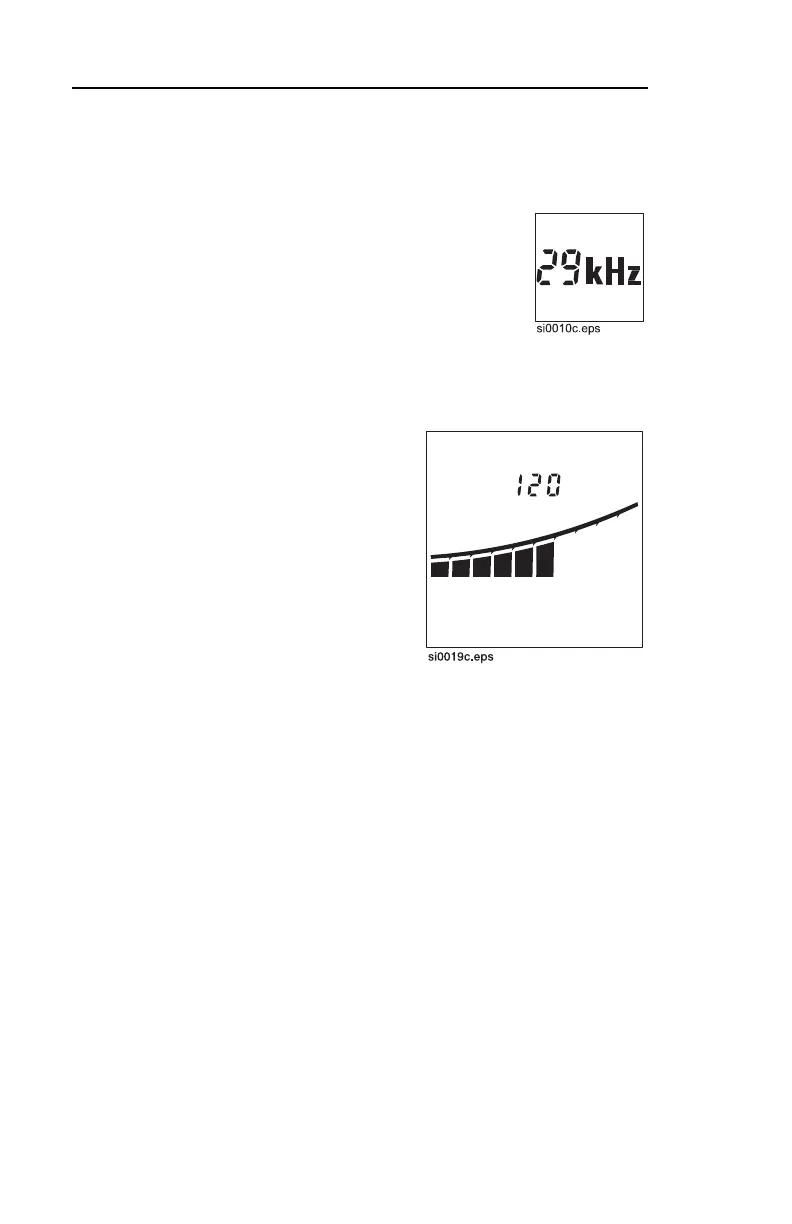

Frequency
The transmitter can send six signal
frequencies: 512 Hz, 1 kHz, 8 kHz, 29 kHz,
and 80 kHz. Dual frequency (F1:F2) transmits
both 8 kHz and 29 kHz signals.
Power Level
The transmitter has ten power
levels.
In direct connect and induction
clamp modes, a tone indicates
satisfactory connection. The
higher the number, the more
current is flowing into the target
line.
In broadcast mode, a beeping
tone indicates that current is
flowing from the transmitter.
IMPORTANT: To conserve battery life, lower the power level to
the lowest usable level.
IMPORTANT: See OPERATION for further description of location
modes.
DISPLAY
Frequency
The transmitter can send six signal
frequencies: 512 Hz, 1 kHz, 8 kHz, 29 kHz,
and 80 kHz. Dual frequency (F1:F2) transmits
both 8 kHz and 29 kHz signals.
Power Level
The transmitter has ten power
levels.
In direct connect and induction
clamp modes, a tone indicates
satisfactory connection. The
higher the number, the more
current is flowing into the target
line.
In broadcast mode, a beeping
tone indicates that current is
flowing from the transmitter.
IMPORTANT: To conserve battery life, lower the power level to
the lowest usable level.
IMPORTANT: See OPERATION for further description of location
modes.
