LOCATE LINE: ACTIVE LOCATION
910R/950R/950T/970T - OPERATION 53
LOCATE LINE: ACTIVE LOCATION

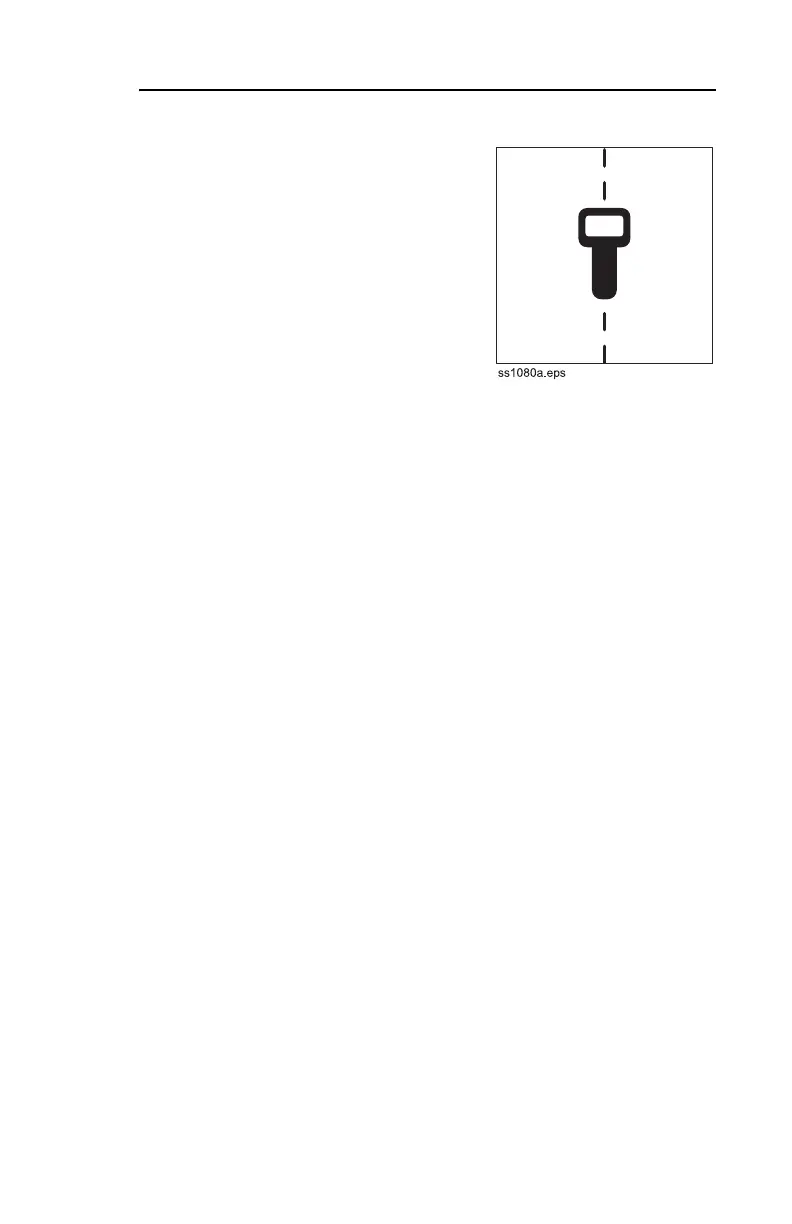

4. Rotate the receiver to
determine which direction the
line runs.
IMPORTANT: Receiver
indicates the strongest signal
when the handle lines up with
the target line.
5. Press DEPTH button when
the line has been located.
6. Continue to trace the line and
take depth estimates every few paces.
IMPORTANT: Current measurement can be used as a line
identifier when transmitter is connected to target line. Current
on the target line should be higher that current on another line
that is picking up signal inductively from target line.
7. Retrace the line and mark with appropriate flags or paint.
