subzero.com | 9
WOOD FLOOR APPLICATION
After properly locating the anti-tip bracket in the opening,
drill pilot holes ⁄"
(5) diameter maximum in the wall studs
or wall plate. Use the #12 screws and washers to secure
the bracket. Verify the screws penetrate through the floor-
ing material and into the wall studs or wall plate a mini-
mum of ⁄"
(19). Refer to the chart and illustration below.
CONCRETE FLOOR APPLICATION
After properly locating the anti-tip bracket in the open-
ing, drill pilot holes ⁄"
(5) diameter maximum in the wall
studs or wall plate. Drill ⁄"
(10) diameter holes into the
concrete a minimum of 1⁄"
(38) deep. Use the #12 screws
and washers to secure the bracket to the wall, and use the
⁄" wedge anchors to secure the bracket to the floor. Verify
the screws penetrate the wall studs or wall plate a mini-
mum of ⁄"
(19). Refer to the chart and illustration below.

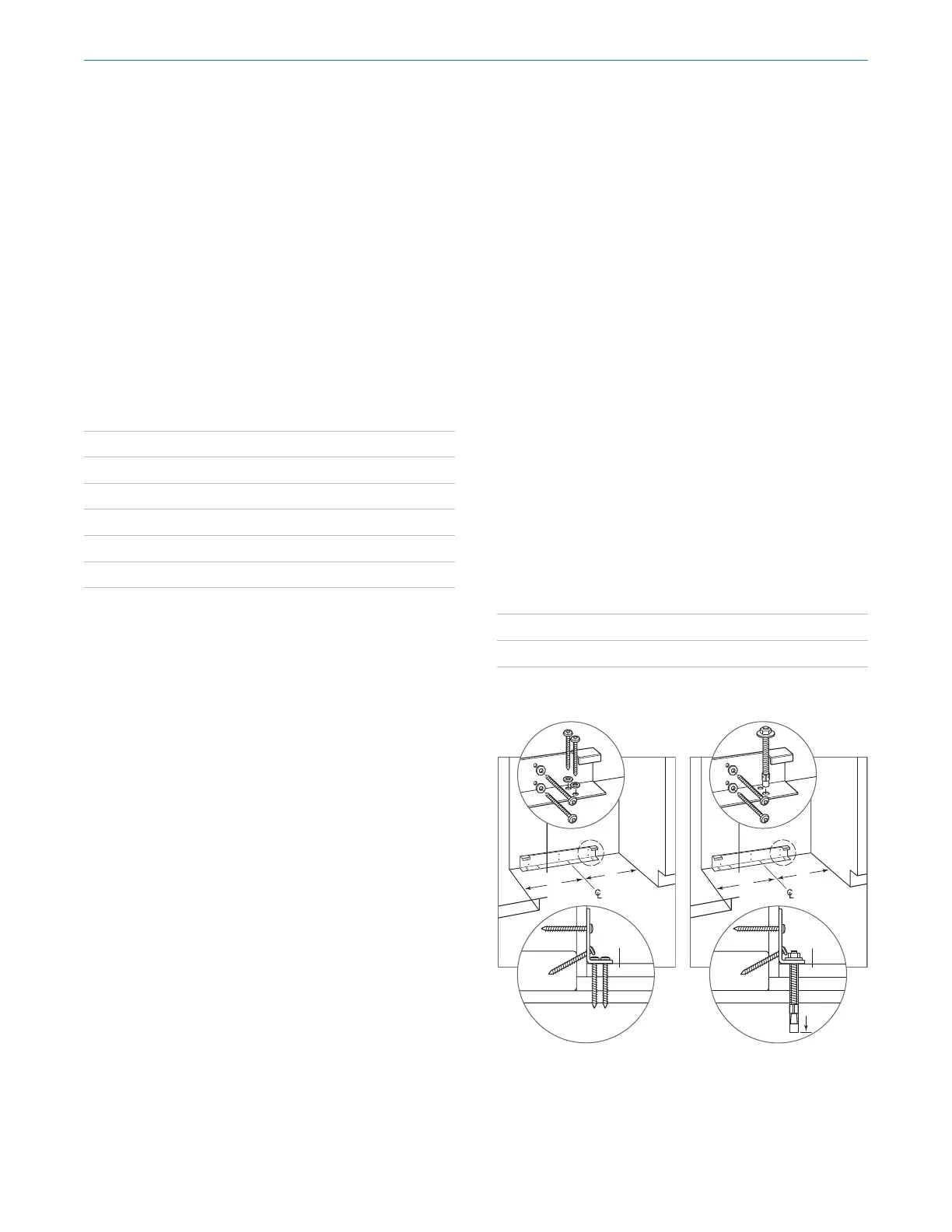

ANTI-TIP BRACKET PLACEMENT A
36" Model 17⁄" (451)
48" Model 23⁄" (603)
A
A
SUBFLOORING
WOOD FLOOR
WALL PLATE
FINISHED
FLOORING
A
A
SUBFLOORING
CONCRETE
FLOOR
WALL PLATE
FINISHED
FLOORING
1
1
/2"(38)
min
Wood floor
Concrete floor
Installation
Anti-Tip Bracket
Use all anti-tip bracket hardware as instructed for wood or
concrete floors.
IMPORTANT NOTE: For wood or concrete floor applica-
tions, if the #12 screws do not hit a wall stud or wall plate,
use the #8 screws and #12 washers with the wall anchors.
IMPORTANT NOTE: In some installations the subflooring
or finished floor may necessitate angling the screws used
to fasten the anti-tip bracket to the back wall.
ANTI-TIP HARDWARE
1 Anti-tip bracket
12 #12 x 2⁄" pan head screws
3 ⁄"–16 x 3⁄" wedge anchors
12 #12 flat washers
3 #8–18 x 1⁄" truss head screws
3 Nylon Zip-it
®
wall anchors
