4 | Atención al cliente de Sub-Zero 800.222.7820
Preparación del sitio

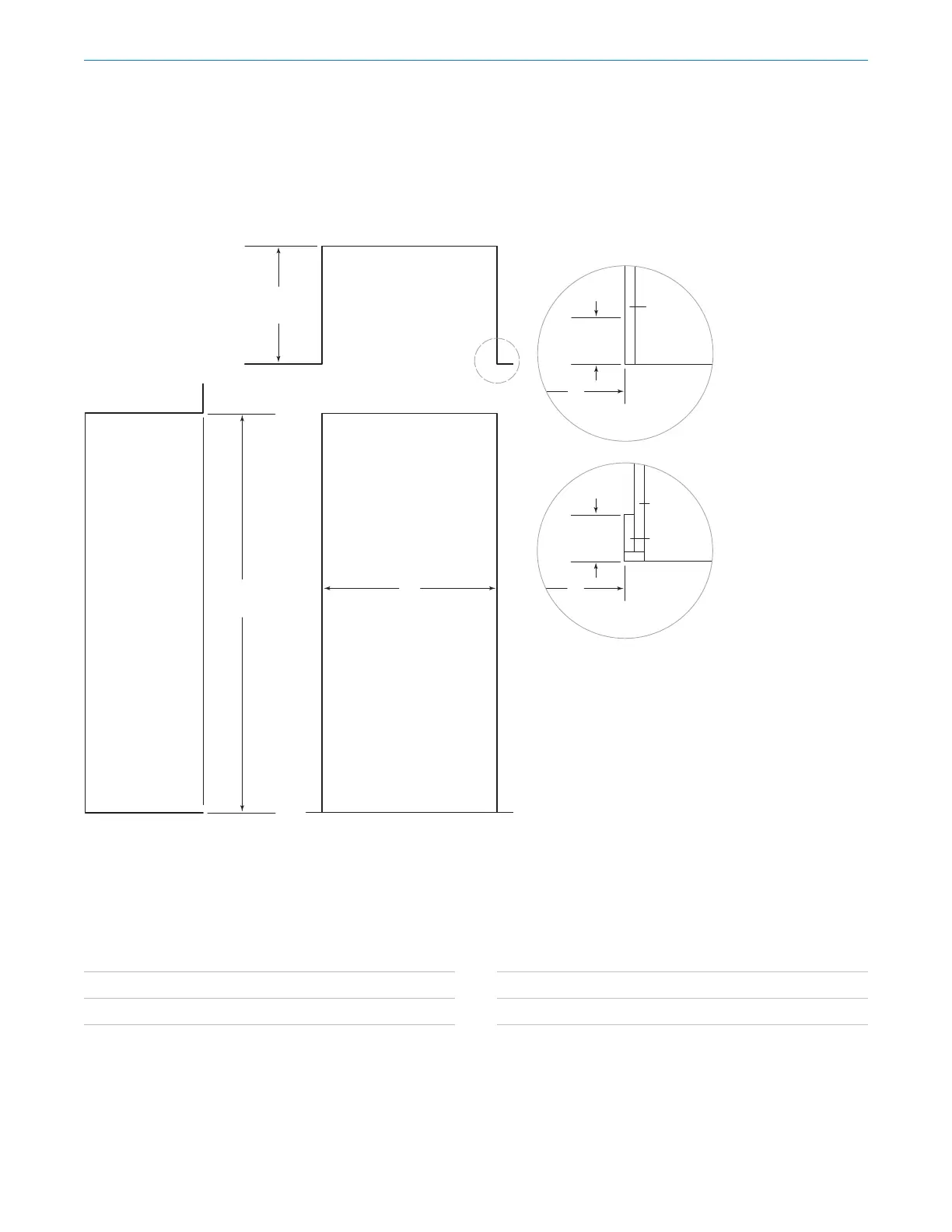

Dimensiones de abertura
INSTALACIÓN EMPOTRABLE | ESTÁNDAR
NOTA: Los tubos de retorno de
3
1
/2" (89) con acabados se podrán ver y se deben terminar para que se ajusten a los gabinetes.
H
ALTURA DE
LA ABERTURA
D
PROFUNDIDAD DE
LA ABERTURA
VISTA FRONTAL
VIST
A LATERAL
VISTA SUPERIOR
W
ANCHO DE LA ABERTURA
TÍPICO DE
3
/4" (19)
GABINETE
CON MARCO
W
RELLENO
TUBO DE
RETORNO DE
3
1
/2" (89) CON
ACABADOS
GABINETES
SIN MARCO
W
TÍPICO DE
3
/4" (19)
TUBO DE
RETORNO DE
3
1
/2" (89) CON
ACABADOS
ABERTURA
ESTÁNDAR
W
H
D
Modelo de 36" 35⁄" (902) 83⁄" (2127) 24" (610)
Modelo de 48" 47⁄" (1206) 83⁄" (2127) 24" (610)
En las instalaciones estándar, el marco frontal se extenderá
2"
(51) más allá de los gabinetes.
ABERTURA
EMPOTRABLE
W
H
D
Modelo de 36" 36" (914) 84⁄" (2137) 26" (660)
Modelo de 48" 48" (1219) 84⁄" (2137) 26" (660)
Para las instalaciones empotrables, el marco frontal se
instalará con los gabinetes que lo rodean.
