Alignment

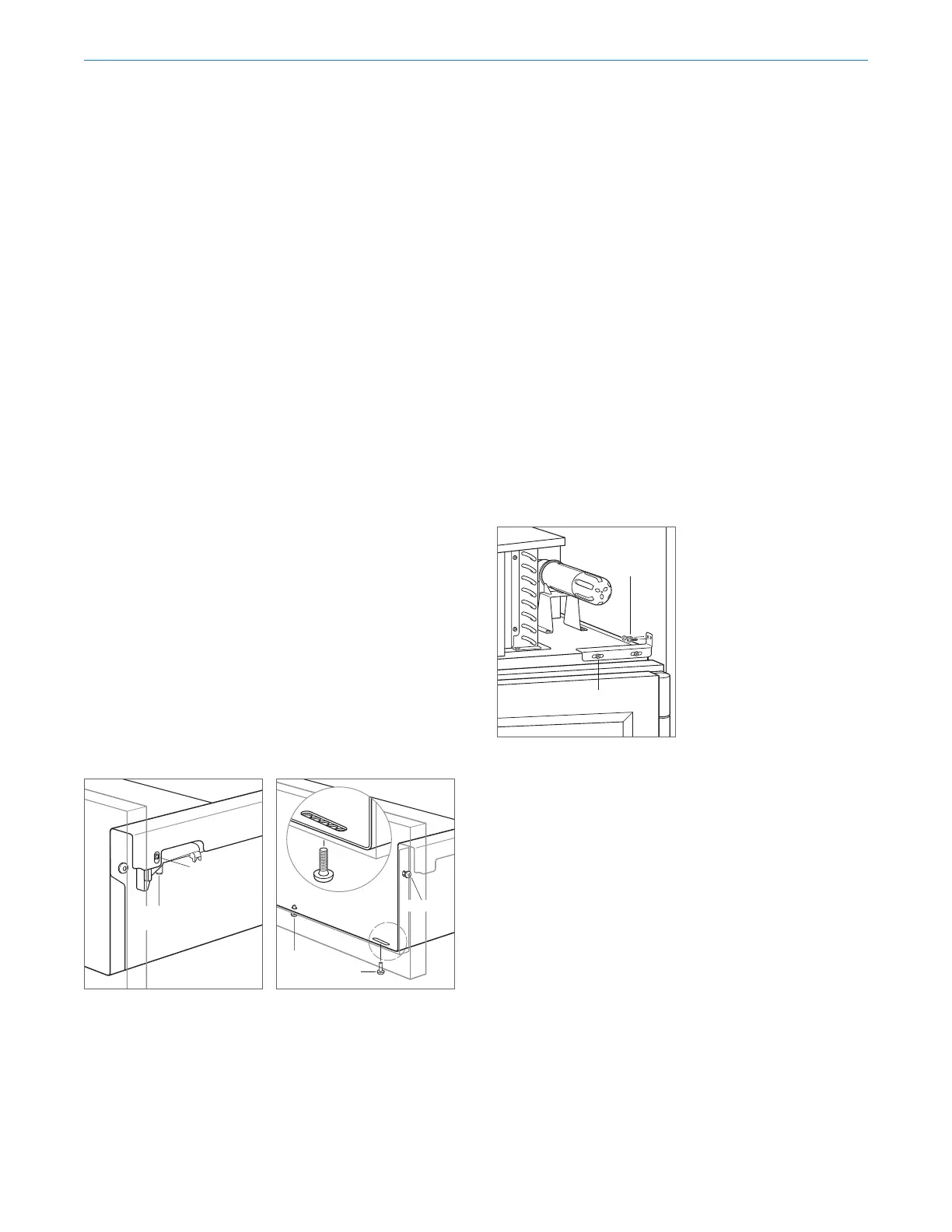

DRAWER ADJUSTMENT
Up-and-Down Adjustment:
1 Use a hex wrench to turn the up-and-down adjust-
ment screw counterclockwise to raise and clockwise to
lower. Refer to the illustration below.
Side-to-Side Adjustment:
1 Use a hex wrench to turn the adjustment screw. Refer
to the illustration below.
2 Both drawer slides must be adjusted equally to achieve
movement. For example, if the right slide adjustment
screw rotated clockwise, rotate the left slide screw
equally counterclockwise.
Tilt Adjustment:
1 Loosen the side and the bottom, center screws. Refer
to the illustration below.
2 Remove the screw from the corner of the drawer that is
out of adjustment.
3 Move the drawer front in or out by hand.
4 Install the screw into the bottom of the drawer. Each
hole location adjusts the door in or out by ⁄"
(1).
5 Tighten the side and bottom, center screws.
Completion
ANCHORING
After the unit has been leveled and door and drawer
adjustment completed, anchor the unit to the opening to
ensure a proper fit and secure installation.
To Anchor the Unit:
1 Loosen the mounting bracket screws at the top of the
unit, then slide the mounting brackets to the side until
they contact the sides of the opening. Install additional
blocking if necessary. Refer to the illustration below.
2 Secure the brackets with the anchoring screws pro-
vided, then tighten the mounting bracket screws.
SIDE-TO-SIDE
ADJUSTMENT
UP-AND-DOWN
ADJUSTMENT
LOOSEN
LOOSEN
REMOVE
Drawer adjustment
Drawer tilt adjustment
ANCHORING
SCREWS
BRACKET SCREWS
Anchoring
